Sports Deck Tempo - Sports Floor
Verified by manufacturer 13 days ago
Pulastic® surface
Pulastic® surface
Chain of Custody Certification
Certificate type
A sports flooring understructure system with a variety of sports flooring surface finishes available.
Application
Sports flooring for interior applications such as:
- Gyms.
- Leisure centres.
- Schools.
- Multi purpose areas.
- Sports Halls.
- Activity Studios.
- Dance Studios.
Description
Fast and easy to install understructure system for sports flooring. Designed to offer uniform performance on every installation. Precision machined using high quality sustainably sourced timber with a distinctive jointing system. This sports floor understructure system is available with a number of different surface options, to create both area and elastic sprung floors.
Features and benefits:
- Sport England D of E compliant.
- Meets the requirements of EN 14904.
- FSC® or PEFC® chain of custody certification available.
- Variable construction heights.
- Can be used for bleacher seating systems - contact us for further guidance.
General information
Color | Beige Black Bronze Copper Gold |
Finish | Smooth |
Material | Plywood Linoleum Vinyl Resin Polyurethane |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | K11/295 Floating floor system K11/22 Plywood floating floor |
Specification data - Wood-based rigid sheet floating floor systems
System performance | Certified to EN 14904 - A3 or A4. |
Subfloor preparation | To conform to BS 8204-1:1987 and should not deviate more than 3 mm under a 2 m straight edge, having a suitable damp-proof membrane. Should be dry to less than 75% RH, and level. |
Vapour control layer | Union kraft paper or similar approved. |
Resilient layer | 15 mm technical shock pad.Guidance for specification option: Technical shock pad in a variety of densities and thicknesses, dependant on project requirements. Standard thickness of 15 mm. |
Flooring | European Birch plywood laid brickbond.Guidance for specification option: Surface prepared to accept a variety of sports surface finishes including Pulastic (area elastic resin or combined elastic resin), Reflex ProPlay, sports linoleum or sports timber parkett. |
Joint treatment | All T&G joints bonded with Reflex Tempo PUR adhesive and the surface feather finished. |
Perimeter seals | Not required. |
Samples required | Guidance for specification option: Samples are available. Insert requirements or omit. |
System accessories | None.Access bushings.Skirtings.Thresholds. |
Execution | Guidance for specification option: Workmanship: Store in dry conditions and protect from dirt, stains and damage. Environment: Do not start installation until building is weather tight, wet trades have completed their works and the building is well dried out. Before, during and after installation, temperature and humidity must be maintained at levels approximating to those which will prevail after the building is occupied. Ideal range of humidity is 40–65% RH. During installation, the temperature must be above 15 degrees celsius. |
Standard | To EN 14904. |
Surface finish | Pulastic® surface. |
Third-party certification | FSC. PEFC. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications

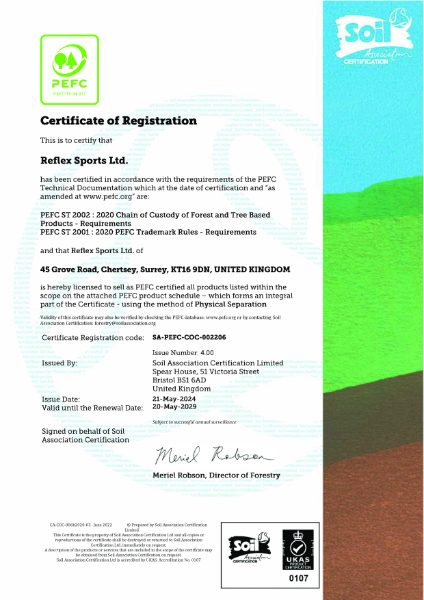

Chain of Custody Certification
PEFC Chain of Custody Certification
Literature

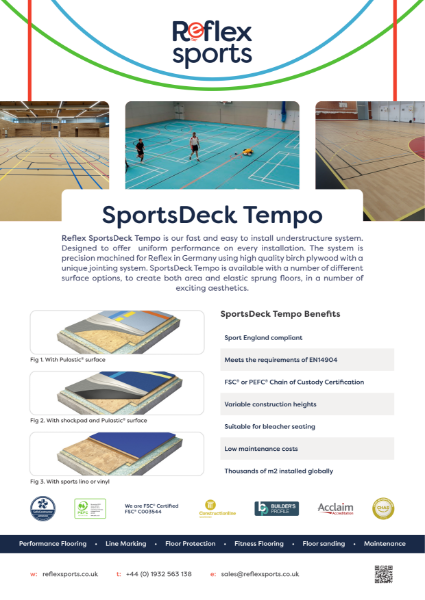

Reflex Sports Deck Tempo
Case studies
Morpeth Leisure Centre
