This product is no longer available

Description

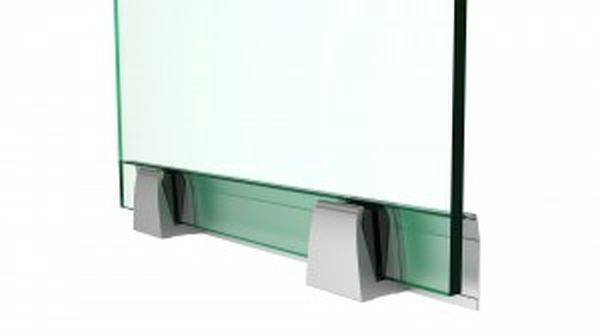

Adjustable glass balustrading system, ideal for pool surrounds, glass partitions and balconies. It provides clear sightlines.

Features and benefits:

  • Suits glass thicknesses of 12–21.5 mm.
  • No need to drill holes in the glass.
  • Only two spigots required per metre (500 mm centres).
  • 0.74 kN loading (with less than 25 mm deflection).
  • Fully adjustable enabling the vertical alignment of each glass panel.
  • Extremely quick to install.
  • Approved To BSI 6180-2011.

General information
Size

As drawing

Finish

Textured

Material

Anodized aluminium

Uniclass 2015
Ss_25_60_05_05 Balustrade and guarding systemsPrimary
Specification data - Balustrade and guarding systems
Product Reference

Spig-Lite Pro

Size

As drawing

Channel fixing

Splt-001 Spigot fixing

Glazing clamp kit

SPLTB-0012

For 12 mm thick glazing.

SPLTB-0015

For 15 mm thick glazing.

SPLTB-0021

For 21.5 mm thick glazing.

Accessories

None

SPLTA-001 - Spigot Top Seal Strip

Standard product features

Material:

Anodized aluminium.

Finish:

Textured.

Colour:

Anodized grey.

Glazing suitability:

12 mm, 15 mm, 21.5 mm thick toughened or toughened laminated glass.
