Spidi Max rainscreen cladding subframe system - Facade support helping hand brackets
Verified by manufacturer 5 months ago

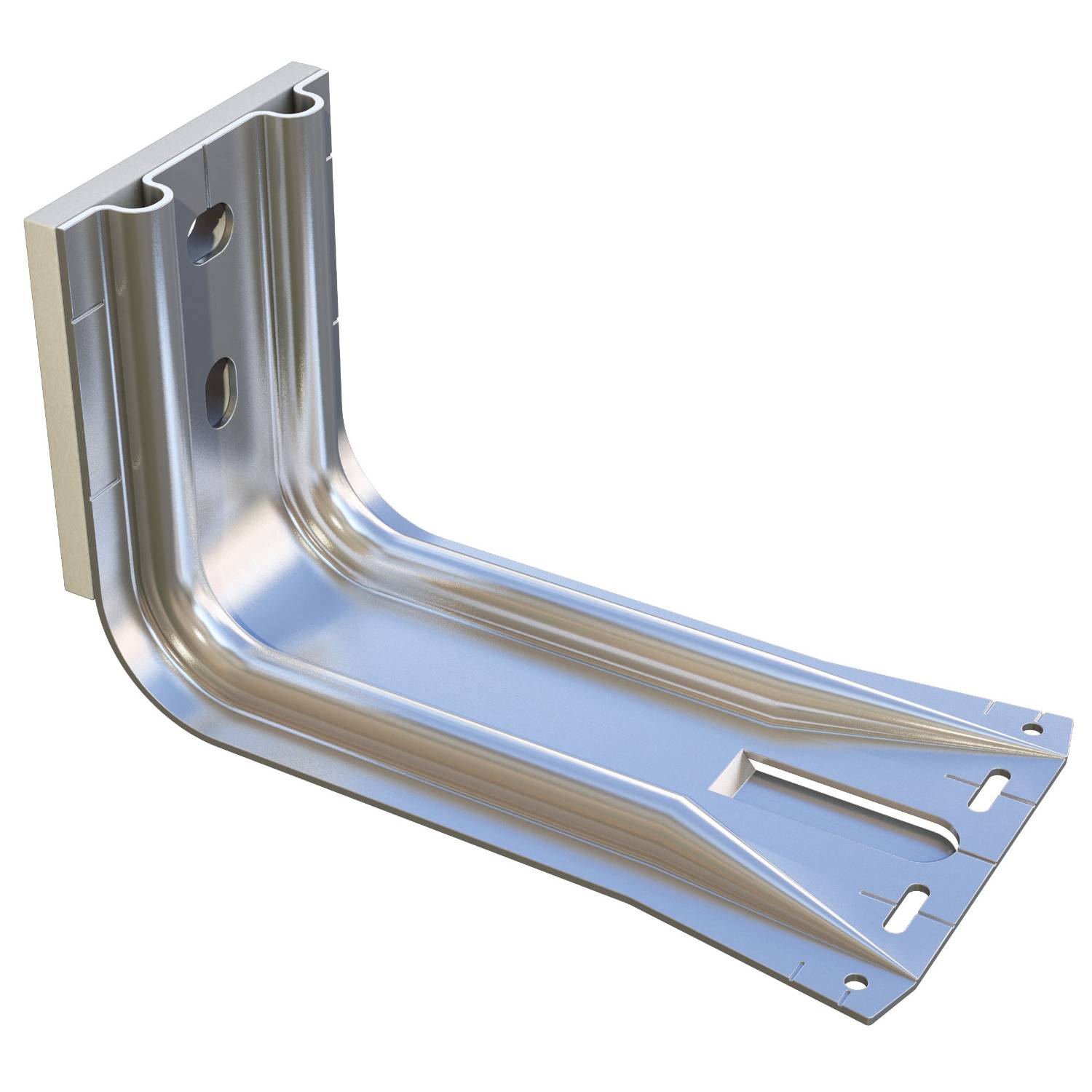

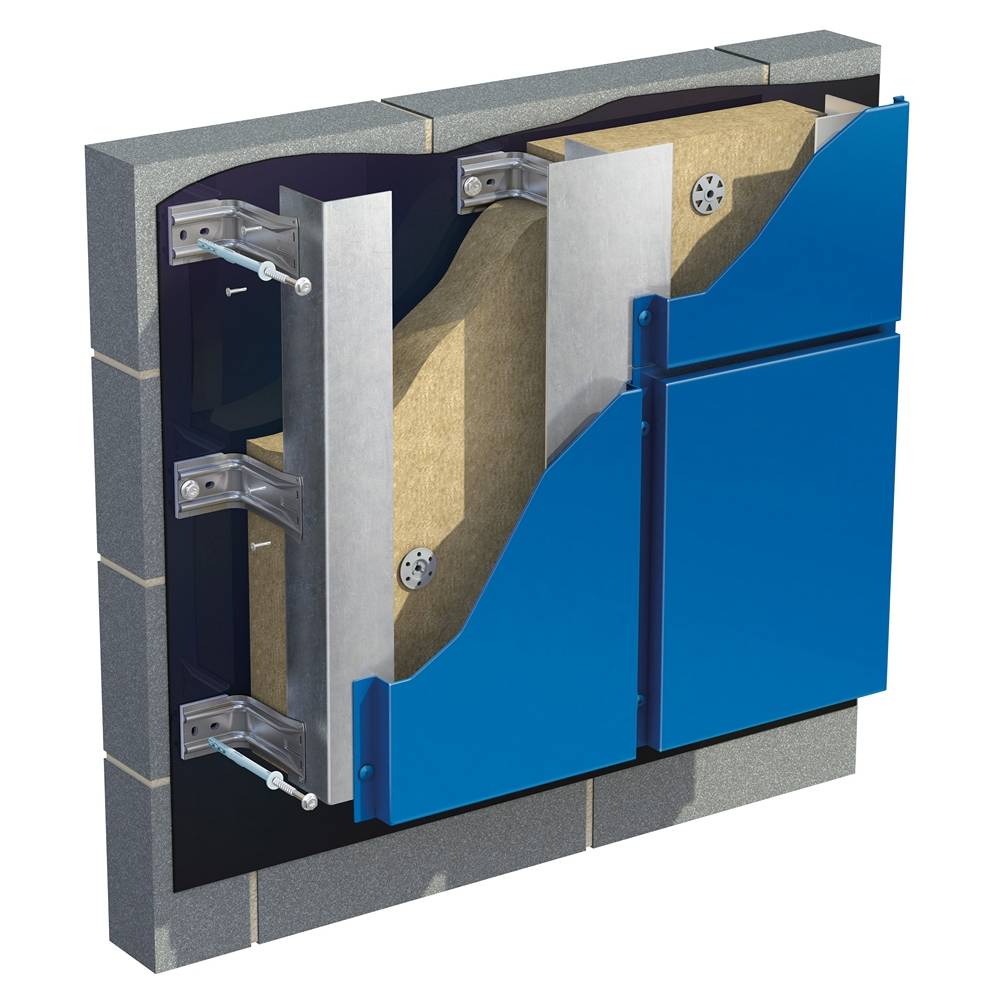

Helping hand bracket with thermally resistant pad
Application
- Vertical or horizontal facade bracket for fixed or sliding points
- Can also be used as a ceiling bracket for soffits
Description
Helping hand bracket with thermally resistant pad.
Features and benefits:
- Made from low carbon 316L grade stainless steel, Wnr. 1.4404 or Aluminium grade - Almg 2,5/H12, WNr.: EN AW-5052
- Non-combustible according to DIN EN 4102-2
- 10 mm hole for anchors and 6mm hole for self-drilling screws
Thermostop pad:
- 6 mm hard foamed PVC
- Low thermal conductivity – 0.06 W/Mk
- Self-extinguishing in case of fire – B1
- High compressive strength - 10 N/mm²
General information
Color | Silver |
Finish | Mill |
Material | Aluminium Stainless steel |
Length | 85 mm 110 mm 125 mm 135 mm 160 mm |
Width | 88 mm |
Height | 80 mm |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Product range |
Specification data - Aluminium brackets
Section size | 88 x 80 mm.Manufacturer guidanceWidth x height. |
Length | 85 mm.110 mm.125 mm.135 mm.160 mm.170 mm.185 mm.210 mm.225 mm.240 mm.255 mm.270 mm.285 mm.300 mm. |
Factory finish | Mill. |
Colour | Silver. |
Thermal break | Thermostop pad. |
Structural members | Aluminium. Stainless steel. |
Sustainability data
Material | Aluminium Stainless steel |
Literature
Facade and Rainscreen Overview
Facade Support System Overview
Case studies
Halcyon Way School, Oldham
Mock Veterinary Practice, University of Nottingham
Holland Park, Glasgow
Bradfield College
Water Treatment Plant

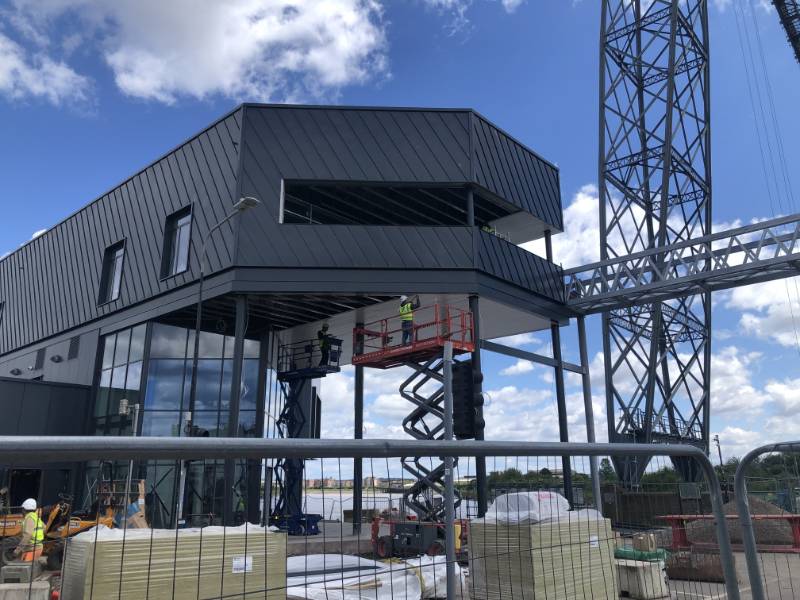

Newport Transporter Bridge Visitor Centre
