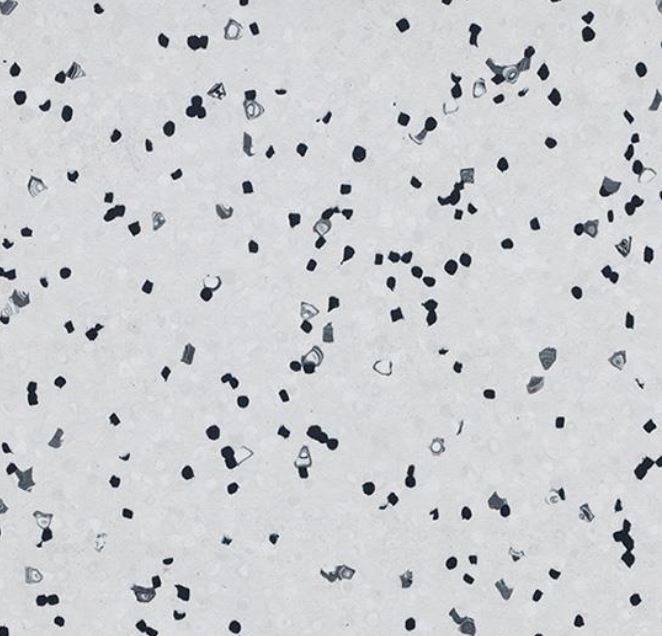

Sphera EC Homogeneous Vinyl Flooring - Sheet vinyl flooring

Name: Sphera EC Homogeneous Vinyl Flooring - Sheet vinyl flooring
Brand: Forbo Flooring Systems
SKU: 8SdJ1H4QMRaxEjh432zh3m

Verified by manufacturer 12 days ago

Forbo Flooring Systems

Third party certifications:

EPD
Certificate type
Certificate of Conformity
Certificate type

Sphera EC is a homogeneous sheet vinyl flooring with electrostatic conductive properties.

Jump to:

+44 (0)800 093 5258 Website

Application

Controls static discharges and particles in the most sensitive environments such as pharmaceutical, life sciences and healthcare facilities.

Description

Premium homogeneous vinyl sheet flooring with SMART top polyurethane (PUR) surface finish offering high quality regardless of conditions.

Features and benefits:

Innovative product development and carefully controlled production processes ensure a solution with permanent conductive properties that comply with all electrostatic discharge (ESD) standards.
Retains high performance throughout the product’s lifetime, regardless of environmental conditions (e.g., humidity levels).
Low emissions and phthalate-free manufacturing ensure that Sphera EC can contribute to a healthy indoor environment.
The SMART control surface treatment makes Sphera EC resistant to stains and scratches, for a durable and hygienic solution.
Conductive backing means that there is no need for conductive adhesive underneath the full sheet. It is only necessary to affix the copper strip, thus minimising installation errors and reducing cost.
Sphera EC is produced in a zero-waste environment, ensuring efficient and sustainable manufacturing.
Phthalate-free.

General information

Color	White Grey Silver Ivory Beige Purple Blue Green Yellow Show more
Finish	Lacquered Manufacturer guidance SMART Control surface treatment.
Material	PVC
Shape	Rectangle
Length	27000 mm
Width	2000 mm
Height	2 mm
Warranty description	Ten year

Uniclass	Pr_35_57_71_67 Polyvinyl chloride (PVC) sheetsPrimary
CAWS	M50/150 Sheeting M50/20 Sheeting

Specification data - Polyvinyl chloride (PVC) sheets

Standard	To EN ISO 10581, EN 14041.
Use class	Class 34 / 43.
Slip potential	-
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)	To BS EN 13893: DS: ≥0.30, to DIN 51130: R9. Dry >50.
Recycled content	0%.
Width	2 m.
Thickness	2 mm.
Colour and pattern	White EC450000. Light neutral grey EC450003. Dark neutral grey EC450005. Grey sky EC 450007. Silver grey EC450008. Ivory EC450017. Mortar EC 450018. Soft Lilac EC450032. Amethyst EC450034. Water EC450036. China Blue EC450037. Olive EC450050. Yellow Green EC 450079.

Reaction to fire (to BS EN 13501)	B(fl)-s1, G, NCS.
Lightfastness (to ISO 105-B02)	≥7.
Thermal conductivity (to BS EN 12524)	0.25 W/m·K.
Electrical resistance in combination with ESD control footwear (to IEC 61340-4-5, ESD STM97.1)	R ≤3.5 x 10^7 Ω.
Resistance to chemicals (to EN ISO 26987)	Very good.
Bacteria resistance (to EN846)	Does not support growth.
Cleanroom particle emission (to ISO 14644-1)	ISO 5.
Electrical behaviour- conductive (to EN 1081)	≤1 x 10^6 Ω.
Body voltage generation, in combination with ESD control footwear (to IEC 61340-4-5)	<50 V.
Electrical resistance to IEC 61340-4-1, ESD STM7.1)	5 x 10^4 ≤ R ≤ 10^6 Ω.
Finish:	SMART control surface treatment.
Dimensional stability (to BS EN ISO 23999)	Standard = ≤ 0.4%, typical value = ~ 0.2%.
Electrostatic (general requirements) (to IEC 61340-5-1)	Compliant.
Residual indentation (to EN-ISO 24343-1)	Required ≤ 0.10 mm, typical ~0.03 mm.
Total weight (to EN ISO 23997)	2.9 kg/m².
Castor chair continuous use (to ISO 4918/EN 425)	Pass.
Flexibility (to EN-ISO 24344)	Ø 10 mm.
Adhesive	Not required. Eurocol 640 Eurostar Special low VOC emission solvent free PVC adhesive. Eurocol 641 Eurostar Special EL low VOC emission conductive adhesive for PVC.
Indoor Air Emissions (to ISO 16516)	TVOC at 28 days: ≤ 10 μg/m³.
Edging	Not required. As per 740.
Skirtings	Not required. As per 770.
Stair nosings	Not required. As per 750.

Sustainability data

Contains Red List materials	Yes
Country of material origin	Netherlands
Country of product manufacture	Netherlands
Material	PVC
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	5.88 kg CO₂ eq/m²
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	34 %

Third party certifications

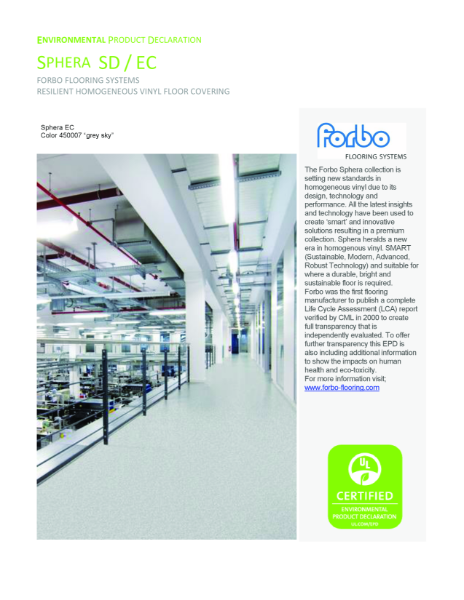

Sphera SD-EC Independent EPD

BIM objects

Platform	Compatible	Version
Revit	-	1

Third party certifications

EPD

Sphera SD-EC Independent EPD

Certificate of Conformity

SA8000 Management System Certification Certificate
