SPEEDLINE Shaft Encasement Systems Utilising British Gypsum Board
Verified by manufacturer 3 months ago
SE60-B-56
SE60-B-56
BSI Kitemark
Certificate type
EPD
Certificate type
ISO 9001 Quality Management
Certificate type
UK Conformity Assessed (UKCA)
Certificate type

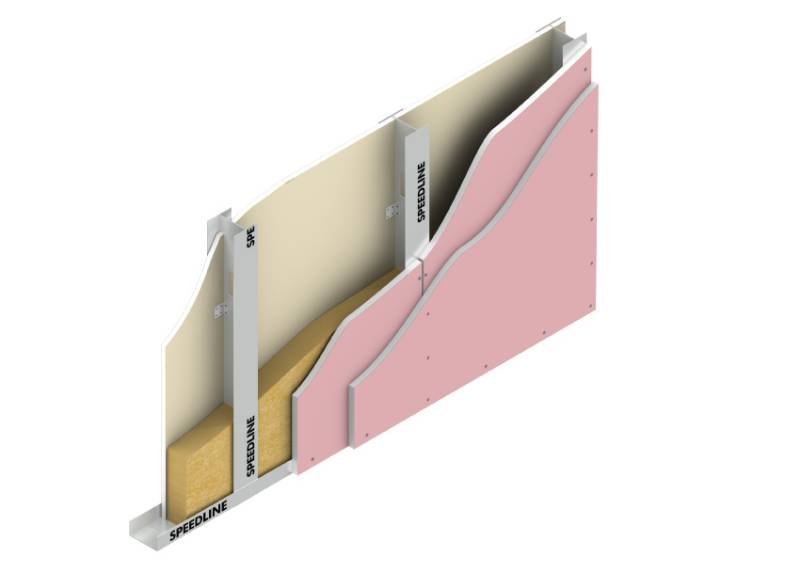

A high-performance fire protection system to enclose lift shafts and service rises.
Application
Sectors:
- High rise residential.
- Education.
- Healthcare.
- Leisure.
- Student accommodation.
- Offices.
Description
A high-performance fire protection system to enclose lift shafts and service rises.
The Speedline Shaft Encasement System allows installation to take place from the landing side only.
This system is non-load-bearing and designed to fit between structural floors.
Features and benefits:
- Fast and simple to erect.
- Cost effective.
- Good impact resistance and stiffness.
- Lighter in weight than masonry.
- High level of fire protection.
- Allows any thickness of coreboard to be used.
Structural performance:
- Strength grade to BS 5234-2:1992 Annexes A-F.
Fire performance:
- Fire resistance to BS 476:1987:Part 22.
Acoustic performance:
- Calculated weighted sound reduction index (Rw) to BS EN ISO 10140-2: 2010.
Installing framing for partitions:
- Partition height (maximum) calculated based on a limiting deflection of L/240 at 200 Pascals.
General information
Length | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K10/125 Metal stud partition system K10/30 Metal stud |
Product range |
Specification data - Gypsum board partition systems
Framing | Speedline 'I' Stud, 60 mm. |
Linings | |
Inner layers | British Gypsum Gyproc CoreBoard, 19 mm fixed with ASB62B brackets.Guidance for specification option: Secured in between Speedline 'I' stud with shaft encasement brackets (ASB62B). |
Outer layers | British Gypsum Gyproc FireLine, 15 mm. |
Fasteners | Speedline Drywall Screws. |
Joint treatment | Speedline Drywall Fibreglass Tape.Speedline Ready Mix Joint Compound.Speedline Putty Pads.Speedline Corner Bead Tape. |
System accessories | Speedline Fire Rated Acoustic Sealant.Speedline PB24 Partition Brace.Speedline FS24 Flat Bracing Strip.Speedline Service Support Plate.Speedline Putty Pads. |
Fire resistance | To BS 476-22:1987, 60/ 60 minutes from shaft side (Integrity/ Insulation). |
Partition height | Guidance for specification option: Insert requirement, maximum 3800 mm. Maximum based on 600 mm centres and calculated based on a limiting deflection of L/240 at 200 Pascals. Manufacturer guidanceMaximum. |
Calculated weighted sound reduction index (Rw) | 39 Rw dB. Guidance for specification option: Based on the optimum system thickness. |
Centres | 600 mm. Guidance for specification option: Standard. Note that if non-standard centres are required, this may affect the sound reduction index (Rw) - consult manufacturer for details. |
StrengthGrade | Heavy duty. |
Head/ Floor channel | Speedline Standard Track. Guidance for specification option: Used for partition heights under 4 m. Available in 50, 52, 62 or 72 mm wide. 25 mm flange. Speedline 32 mm Leg Track. Guidance for specification option: Used for partition heights under 4 m. Available in 52, 62, 72, 94 or 148 mm wide. 32 mm flange. Speedline Deep Track. Guidance for specification option: Used for partition heights between 4m and 8m. Can be used as a head track where a deflection head of up to 30 mm is needed. Available in 52, 62, 72, 94 or 148 mm wide. 50 mm flange. Speedline Extra Deep Track. Guidance for specification option: Used for partition heights between 8m and 10.2 m. Can be used as a head track where a deflection head of up to 45mm is needed. Available in 72, 94 or 148 mm wide. 70 mm flange. |
Sustainability data
Third party certifications
Third party certifications
BSI Kitemark

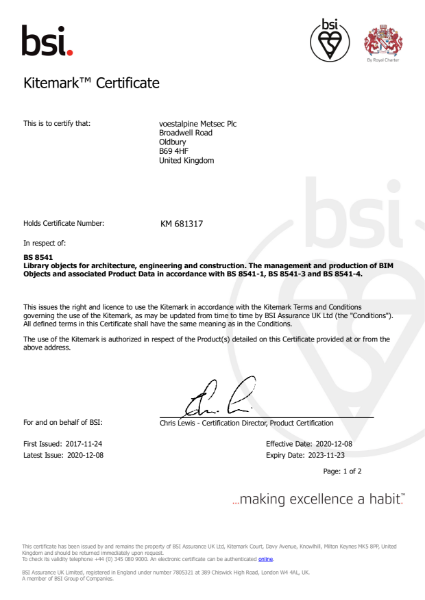

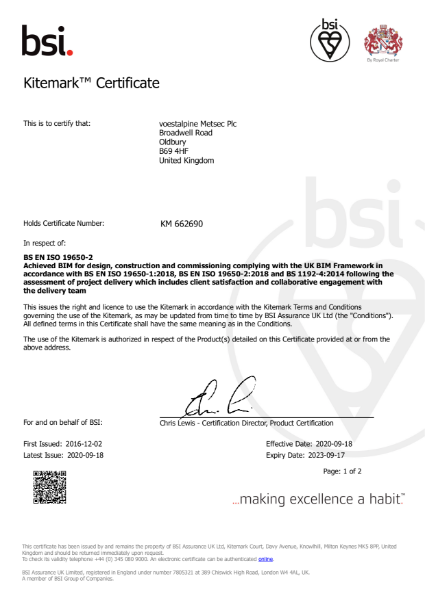

BIM Level 2 Kitemark - For Design and Construction Phase
BSI Kitemark
BSI Kitemark™ for BIM Objects
EPD

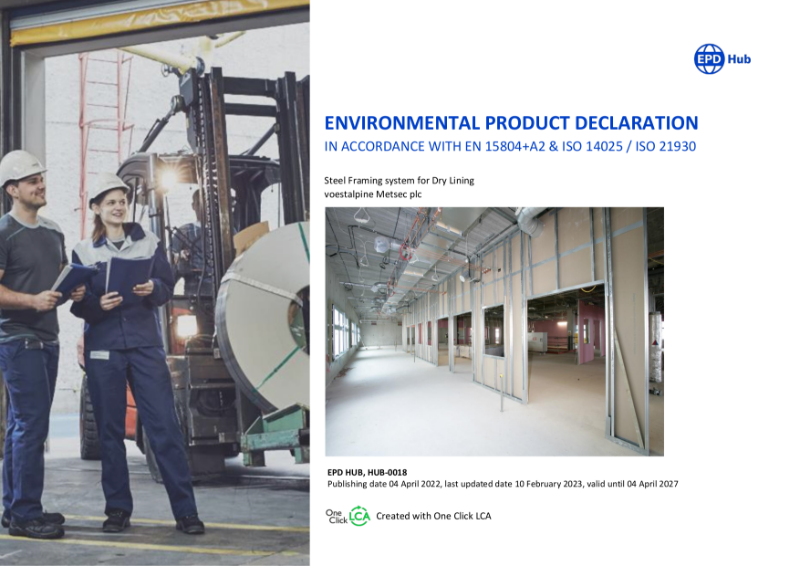

Environmental Product Declaration EPD - Drylining
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
UK Conformity Assessed (UKCA)
UKCA Declarations of Performance - Drylining
Literature

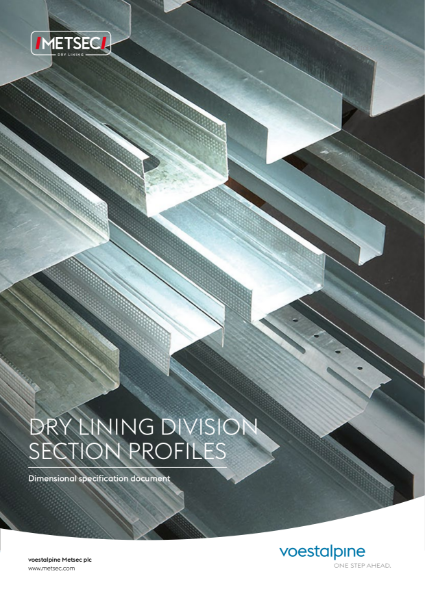

Product Data Sheet - Drylining
SPEEDLINE Partitioning Systems

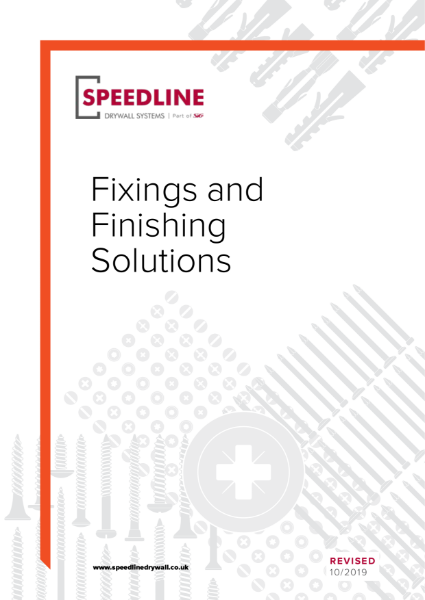

SPEEDLINE Fixings and Finishing Solutions
