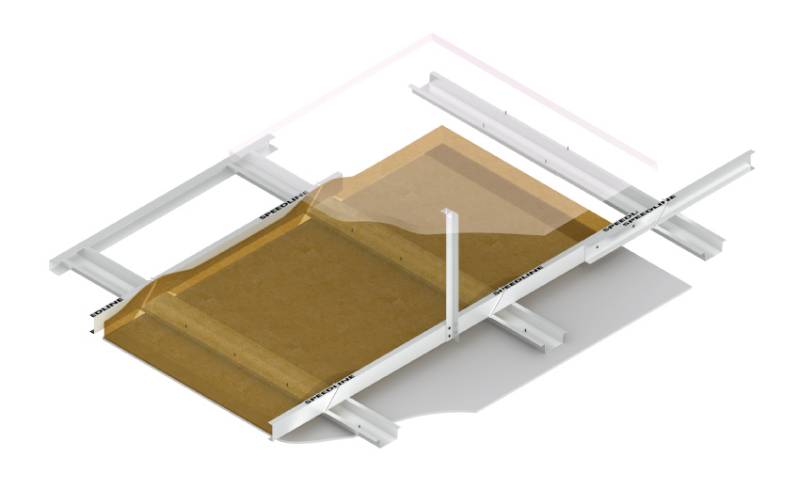

SPEEDLINE MF Ceiling System Utilising Siniat Board

Verified by manufacturer 18 days ago

Metsec (voestalpine Metsec) Third party certifications:
  • BES 6001

    BES 6001

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Metal furring (MF) suspended ceiling system based on SPEEDLINE furring and Siniat boards.

Jump to:
+44 (0) 121 601 6000 Website

Application

Suitable for internal use in commercial and domestic

applications, where services are to be incorporated, or when upgrading and protecting existing structures, in the following sectors:

  • Residential.
  • Healthcare.
  • Education.
  • Commercial.
  • Offices.
  • Retail.
  • Student accommodation.
  • Renovation Maintenance Improvement (RMI).

Description

Metal furring (MF) suspended ceiling system based on SPEEDLINE furring and Siniat boards.


Features and benefits:

  • Plenum depth is fully variable and dependent on plasterboard type used.
  • Excellent levels of sound insulation and fire resistance can be achieved; improved acoustic performances can be achieved by using acoustic hangers.
  • Easy to cut to length using tin snips.
  • Mineral wool can be incorporated for thermal or acoustic insulation.
  • Creates a seamless surface suitable to receive most decorative finishes.
  • Fits easily together.
  • Suitable for fixing all types of plasterboard. Systems based on British Gypsum Gyproc and Knauf are also available, both specified separately.
  • Creates void above the ceiling for services.

General information

Material

Steel

Plasterboard

Uniclass

Ss_30_25_10_35 Gypsum board suspended ceiling systemsPrimary

CAWS

K10/175 Wall lining system (metal furrings)

K10/41 Wall lining system (metal furrings)

Product range

Drylining / SPEEDLINE Drywall Systems
Drylining / Ceiling System - MF

Specification data - Gypsum board suspended ceiling systems

Suspension grid

Speedline metal furring system.

Guidance for specification option:

Speedline 50 mm SSMF5 ceiling furring:

  • 0.5 mm thick.
  • Profile (maximum): 80.6 x 51.5 x 25.9 mm.

Speedline SSMF6A perimeter channel:

  • 0.5 mm thick.
  • Profile (overall): 28 x 26 x 19 mm.

Speedline SSMF7 primary channel:

  • 0.7 mm thick.
  • Profile: 45 x 15 mm.

Manufacturer guidance

All components are 3600 mm long as standard. Channels can be overlapped (minimum 150 mm) as required. Consult manufacturer's literature for details.


See System accessories for additional components.

Suspension grid fasteners

Speedline drywall wafer head screws.

Guidance for specification option:

Two per angle/ channel join.

Insulation

-

Manufacturer guidance

Insert requirements; insulation to suit specification.

Linings

-

Inner layers

To match face layer.

Not required.

Face layer

Siniat board.

Manufacturer guidance

Consult manufacturer's literature for imposed load figures.


Speedline thermal laminate board is also available to provide thermal insulation in a single application; consult manufacturer for details.

Fasteners

Speedline drywall screws.

Guidance for specification option:

Consult manufacturer's fixing and finishing solutions literature for options and centre distances, and insert requirements.

Joint treatment

Speedline fire-rated acoustic sealant.

Guidance for specification option:

For use to seal any air gaps at junctions of linings with walls, floors, ceilings and around openings. apply a continuous bead of sealant to clean, dry, dust-free surfaces ,leaving no air gaps.

Finish

-

Manufacturer guidance

Insert requirements or omit.

System accessories

AMF9B pre-formed clips.

Guidance for specification option:

Note: In domestic and residential applications, SMF5 ceiling channel to be screw fixed to SMF7 primary channel using two Speedline self-drilling wafer head screws.

SSL06 90° angles, 25 x 25 mm.

Guidance for specification option:

Stock length: 3000 or 3600 mm.

AMF12B angle fixing brackets.

AAH01B acoustic hangers, 35 mm.

AAH02B acoustic hangers, 70 mm.

Fire resistance

60 minutes to BS 476; part 23:1987, BRE Test Reference 236868 2007.
