Application

  • Supermarkets, shops, logistics centres, haulage and delivery companies.
  • End of assembly lines.
  • Airports.

Description

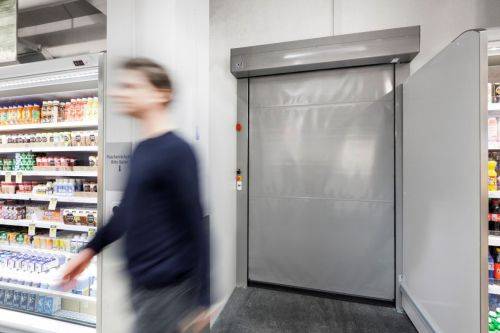

The record Speedcord can be used as the connecting element between two storage areas with differing temperatures. The high opening and closing speeds mean on the one hand short hold-open times, which counteract thermal exchange, and on the other, virtually eliminate possible waiting times in front of the doors. The Speedcord is also very well suited as a noise barrier at the end of assembly line areas.

Features:

  • Maximum size: 3000 x 3000 mm.
  • Drive: Powerful, compact and low maintenance.
  • Power supply: 230 V AC.
  • Door materials: 900 g/m², choice of several colours available, print or transparent area also possible.

Benefits:

  • All drive elements integrated into housing; no extraneous components.
  • User panel integrated into frame; graphic display (BDE-D).
  • No external switch box required.
  • Warning light is maintenance free, LED technology.

Applications:

  • Supermarkets, shops, logistics centres, haulage and delivery companies.
  • End of assembly lines.
  • Airports.

General information
Size

3000 x 3000 mm maximum; insert requirements.

Features

Maximum size: 3000 x 3000 mm

Drive: Powerful, compact and low maintenance

Power supply: 230 V AC

Door materials: 900 g/m², choice of several colours available, print or transparent area also possible

Material

Frame: Aluminium

Shutter: Fibre-reinforced plastic, 900 g/m²

Uniclass 2015 Sliding folding doorsets (Pr_30_59_24_81)
Specification data
Product Reference

Speedcord

Size

3000 x 3000 mm maximum; insert requirements.

Colour

Available in 15 standard colours, printed or with transparent area if required. Insert requirements.

Standard product features

Material:

  • Frame: Aluminium.
  • Shutter: Fibre-reinforced plastic, 900 g/m².

Dimensions:

  • Drive (h x d): 236 x 300 mm.
  • Frame (w x d): 127.5 x 70 mm.
  • Overall maximum (h x w): 3000 x 3000 mm.

Opening speed:

Up to 2.5 m/s.

Product Options

Operation:

Emergency stop button, remote control unit record BDE-D.

Trigger options:

Motion detector, photocell, switch etc.

Manual opening:

Hand wheel, hand crank or USV in case of power failures.

Operating modes:

  • Automatic.
  • Continuously open/ manual.
  • One-way traffic.
  • Locked.

Rated power:

140 W.

Ambient temperature:

3–50°C.
