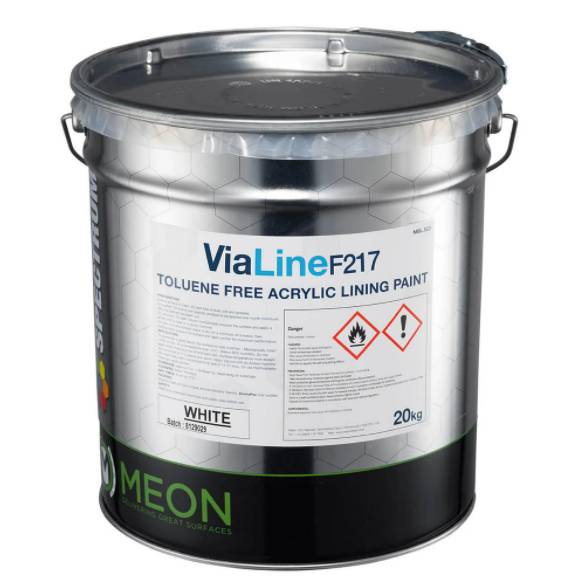

Spectrum ViaLine F217 Airport Specification Solvent Based Arcylic Paint

Verified by manufacturer 5 months ago

Meon

Airport grade acrylic marking paint.

Jump to:
BIM object icon
+44 (0)23 9220 0606 Website

Application

Developed for use in airports.

Description

Spectrum ViaLine F217 is a high quality, fast drying paint developed for use in airports. ViaLine F217 is a toluene free, high solid content and low odour paint. It features high bead retention properties which ensures high performance in durability and retro-reflectivity over a long period of time. ViaLine F217 can be applied using airless spray equipment and is supplied in 20 kg tins. ViaLine F217 comes packaged in the innovative EnviraPac liner system, which allows maximum usage of product, recycling of clean metal tins and most importantly considerable reduction of waste costs.


Features and benefits:

  • Excellent bead retention for increased pilot visibility.
  • High binder rate with increased adhesion to substrate and excellent bead retention.
  • Enhanced opacity for improved guidance and safety.
  • High durability
  • Resealable bucket
  • Very long lasting and durable - requiring less re-spraying



General information

Color

White

Yellow

Traffic yellow RAL 1023.

Black

Finish

Acrylic

Painted

Matt

Material

Acrylic

Airport grade acrylic paint.

Shape

Formless

Uniclass

Pr_35_31_85_47 Line marking paintsPrimary

CAWS

M60/180 Floor coating

M60/195 Special coating

M60/18 Special coating

Specification data - Line marking paints

Purpose

Airport markings.

Enhanced binder formulation giving increased adhesion, as well as high solids content. This provides enhanced opacity and high bead retention, for increased pilot guidance and visibility.

Colour

White.

Yellow.

Curing time

@ 15°C and 65% relative humidity.

Touch dry in 5 minutes.

  • Touch dry: 5 minutes.
  • Walk on time: 15 minutes.
  • Traffic time: 20 minutes.
  • Full cure: 60 minutes.

Coverage

2.4 m² per kg.

Depending on substrate. 24 metres of 100 mm line per kg.

Wet film thickness (minimum)

255 μm.

Slip resistance

>55 SRT.

With beads.

Beads

880 g/m².

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

EnviraPac liner to allow recycling of tin and reduce disposal costs.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
