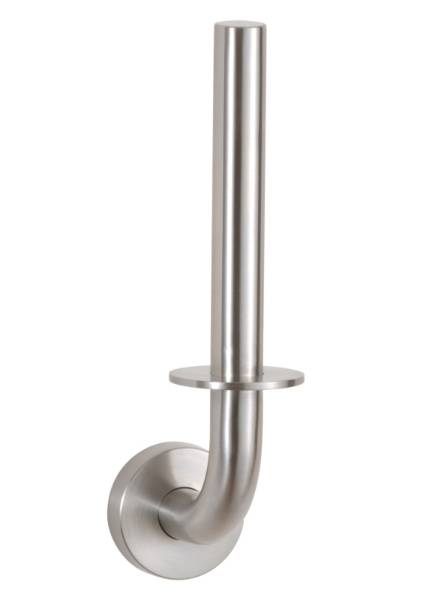

Spare Toilet Roll Holder, B-541, B-5416

Description

Stainless steel finish, spare toilet roll holder with concealed mounting.

General information

Uniclass 2015

Pr_40_20_76_88 Toilet roll holdersPrimary

CAWS

N13/462 Toilet paper holders

Specification data - Toilet roll holders

Product Reference

B-541 – Satin finish stainless steel

B-5416 – Bright polished stainless steel

Standard product features

Dimensions:

35 x 65 x 180 mm.

Toilet roll holder:

18-8, type-304, 0.9 mm stainless steel tubing. 19 mm outside diameter. End is welded to concealed mounting threaded flange. Clearance between the toilet tissue bar and the wall is 55 mm.

Concealed mounting threaded flange:

18-8, type-304, 5.6 mm thick, stainless steel plate with thread on outside edge for fastening cover. 46 mm outside diameter with two holes for attachment to wall.

Threaded flange cover:

18-8, type-304, 1.4 mm, machined stainless steel. 49 mm diameter, 13 mm deep. Cover fastens over mounting flange to conceal mounting screws.

Shelf plate:

18-8, type-304, 3 x 49 mm (thickness x diameter) stainless steel plate. Inside diameter edge is welded to toilet tissue bar to hold toilet tissue roll.
