Application

For use in areas where space is at a premium or where only wall space is available.

A solid level base is required for installation (e.g. concrete, large slabs). Consult manufacturer for further details.

Description

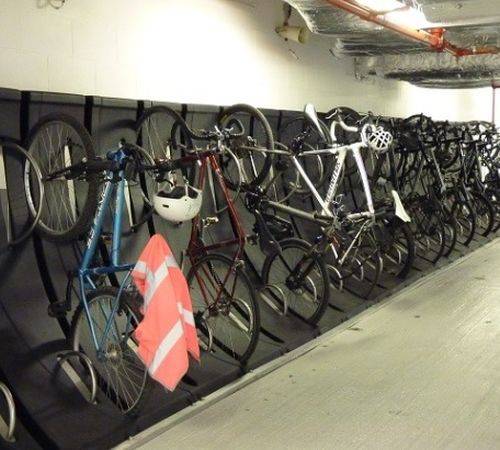

Vertical, stylish, space-saving cycle rack, designed to be installed against a wall in a linear configuration.

Features and benefits:

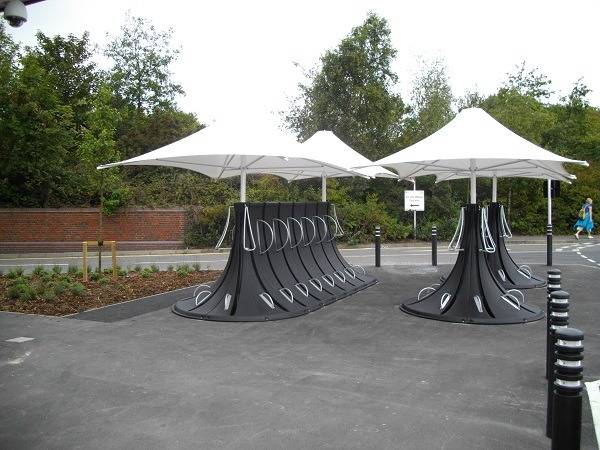

  • Highly configurable - also available in curved and island formations.
  • The upper and lower securing arms provide two locking points per bicycle (front wheel and frame/ back wheel and frame) for extra security.
  • Practical and easy to use.
  • Channel is compatible for use with 99% of all standard European tyre widths.
  • Includes rainwater holes in the base of every track for drainage.
  • Space-saving; up to 50% smaller than traditional bike storage units.
  • Metal reinforcement plates are added to the securing arms.
  • No visible fixings.

Applications:

For use in areas where space is at a premium or where only wall space is available.

A solid level base is required for installation (e.g. concrete, large slabs). Consult manufacturer for further details.

General information
Color

Black (recyclable), red, yellow, royal blue, light blue, dark green, light green, grey, stone effect

Features

Space saving, secure, compatible

Finish

Dimpled effect with varying colour range

Material

Medium density polyethylene (MDPE)

Size

546 x 1630 x 1078 mm

Uniclass 2015 Plastics cycle lockers (Pr_40_30_21_65)
Specification data
Product Reference

Spacepod - Straight Section

Configuration

Insert drawing/ reference.

Colour

Black

Standard.

Grey

Green

Light blue

Red

Royal blue

Stone effect

Yellow

Securing arms

Galvanized steel rod, 20 mm

Standard.

Recycled stainless steel tube, 25 mm

On request.

Top plate

Galvanized steel, 5 mm

Stainless steel, 5 mm

Standard product features

Material:

  • Body: Medium density polyethylene (MDPE).
  • Fixings: Stainless steel.
  • Ground anchors: Zinc plated.
  • Nuts: Nyloc.

Finish:

Dimpled effect.

Size:

  • One panel (h x w x d): 1630 x 546 x 1078 mm.
  • Channel track: 60 mm wide.
  • Pod wall: 7–9 mm thick.
  • Outer lower rim: 20 mm.

Fixings:

  • M12/M14 monties, drilled to a depth of 100 mm (maximum).
  • Two fixing bolts required (per unit).

Weight:

15 kg each.

Product Options

Colour:

- Black:

Recycled and recyclable.

- Other colours:

Recyclable only.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
