Description

Changing and cloakroom units with integral shoe trays, benches, peg rails and shelves.

General information
Specification data
Product Reference

Space-saver Peg Units

Type

DP

DP/LS

SSP

SSP/LS

WFP

WFP/LS

WFP/WS

WP/L/LS

WP/L/WS

WP/LF/WS

WP/WS

Height

Infant

Junior

Senior

Length

___ m

As drawing ___

Colour

Beige, RAL 1015

Black, RAL 9005

Blue, RAL 5010

Brown, RAL 8017

Green, RAL 6005

Grey, RAL 7035

Red, RAL 3000

White, RAL 9010

Yellow, RAL 1018

Other requirements

None

Adjustable feet

Decorative end panels, finish ___

Ducted shoe tray

Allows heating pipes or coils to run behind shoe trays.

Heating pipe guards

Removable, hot-dip nylon coated steel mesh guards to protect small children from heating pipes.

Omit backrests

Omit shoe trays

Pigeon shoe storage

Makes defined separate shoe storage.

Secret fixing feet

Standard product features

Frame finish:

Hot-dip nylon coated.

Seats/ Backrests/ Shelves/ Peg rails:

Manufactured from prime American White Ash and finished with two coats of high performance water based lacquer.

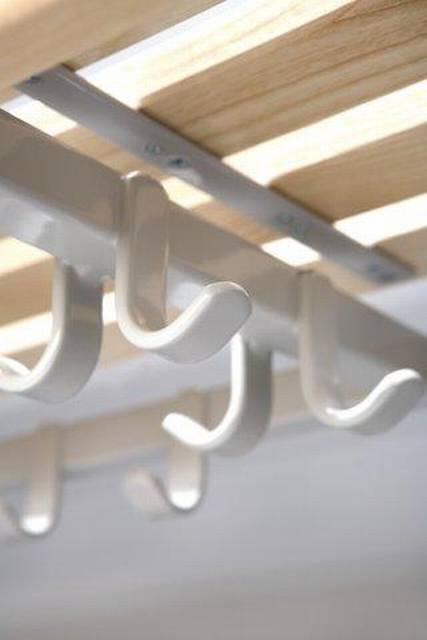

Pegs:

Nylon coated steel pegs welded to rail at 125 mm centres.

Product Options

Type:

– DP:

  • Free-standing, double sided unit.
  • Depth: 760 mm.

– DP/LS:

  • Free-standing, double sided unit with low level slatted shelf.
  • Depth: 760 mm.

– SSP:

  • Free-standing, single sided unit.
  • Depth: 380 mm.

– SSP/LS:

  • Free-standing, single sided unit with low level slatted shelf.
  • Depth: 380 mm.

– WFP:

  • Wall / floor fixed unit.
  • Depth: 380 mm.

– WFP/LS:

  • Wall / floor fixed unit with low level slatted shelf.
  • Depth: 380 mm.

– WFP/WS:

  • Wall / floor fixed unit with shelf and bench.
  • Depth: 380 mm.

– WP/L/LS:

  • Wall mounted unit with low level slatted shelf.
  • Depth: 380 mm.

– WP/L/WS:

  • Wall mounted unit with shelf and bench.
  • Depth: 380 mm.

– WP/LF/WS:

  • Wall-bearing unit with front legs, shelf and bench.
  • Depth: 380 mm.

– WP/WS:

  • Wall-bearing unit with front legs.
  • Shelf and pegs separately fixed.
  • Depth: 380 mm.

Height:

– Infant:

  • Shoe rack: 150 mm above floor level.
  • Seat: 350 mm above floor level.
  • Overall height: 1150 mm.

– Junior:

  • Shoe rack: 200 mm above floor level.
  • Seat: 400 mm above floor level.
  • Overall height: 1350 mm.

– Senior:

  • Shoe rack: 250 mm above floor level.
  • Seat: 450 mm above floor level.
  • Overall height: 1650 mm.

Frame colour:

Nine standard colours available.

Other requirements:

Decorative end panels in 18 mm thick MDF, finished in 1 mm high performance laminate with 3 mm solid PVC lipping. Available in standard colours or wood-grain.
