Soundis Cradle And Batten With Routed Insulation And Dry ScreedPanel ULTRA - Acoustic Cradle and Batten
Verified by manufacturer 6 months ago
Dry Screed 18 mm
Dry Screed 18 mm
CHAS
Certificate type
Constructionline Gold
Certificate type
smas WORKSAFE
Certificate type
Acclaim Accreditation
Certificate type
Dry laid acoustic and UFH levelling solution.
Application
Dry laid acoustic and UFH levelling solution.
Suitable for use in floor separating applications and underfloor heating solution.
Description

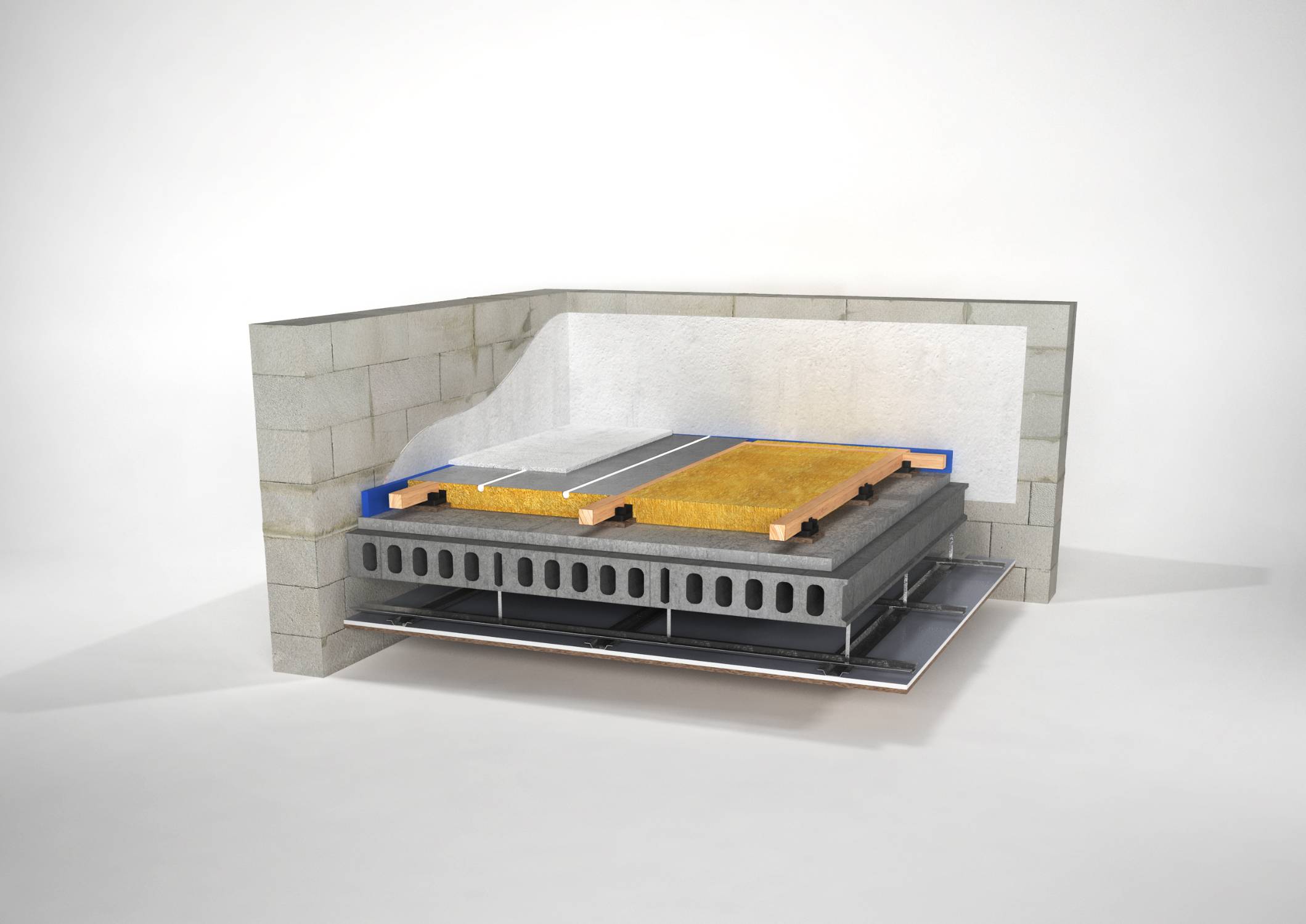

Dry laid acoustic and UFH levelling solution. This provides all the benefits an underfloor heating system can deliver, with the added advantages of rapid heat transfer capabilities and acoustic performance. The dry laid system combines Soundis structural boards capable of accepting a multitude of floor finishes.
Features and benefits:
- High acoustic properties.
- Works with all pipe diameters and controls.
- High compressive strength, accepts all finishes.
For more details contact manufacturer
- Levels all types of separating floors.
- Rapid response time.
General information
Color | Grey Beige Silver |
Finish | Smooth |
Material | Gypsum Aluminium Rubber Timber High density extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | Bespoke |
Uniclass | |
CAWS | K20/30 Timber board K20/20 Battened timber board floating floor K20/15 Timber board flooring K20/230 Timber board K20/150 Battened timber board floating floor K20/120 Timber board flooring |
Specification data - Battened wood floating floor systems
Subfloor preparation layer | Manufacturer guidanceThe subfloor should be dry and clean. |
Secondary supports or spacers | Soundis cradle. |
Insulation to floor voids | Soundis flow XPS. |
Loadbearing overlay | Soundis Dry Screed 18. |
Flooring | |
Board type | Dry screed board. |
Jointing | Tongue and grooved. |
Perimeter seals | Soundis thermoedge perimeter edge strips. |
Thickness | 18 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | 95% |
Third party certifications
Case studies
Soundis Raised Floor System & Underfloor Heating Boards at Holland Park, Kensington, London
