Soundis Acoustic Batten - Acoustic Batten

Verified by manufacturer 12 days ago

Acoustic Batten 50 – 50 mm

Soundis Variant:
Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

  • Acclaim Accreditation

    Certificate type

High performance robust detail acoustic battens suitable for timber, concrete and steel floors.

Jump to:
+44 (0)330 056 3195 Website

Application

Soundis Acoustic Batten is a composite shallow acoustic timber batten, used for reducing impact sound on timber and concrete subfloors in both new build and refurbishment projects.


Typical acoustic performances include:

  • Concrete Insitu Floor.
  • Profiled metal deck.
  • Pre-cast concrete plank floor.
  • Timber joisted floor.
  • Steel joisted floor.
  • Timber web joisted floor.
  • Timber L beam joisted floor.


For more information please contact manufacturer

Description

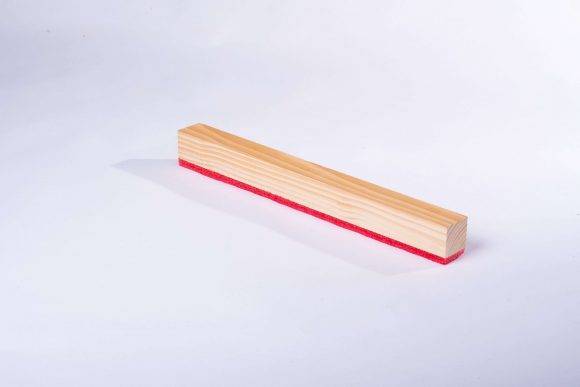

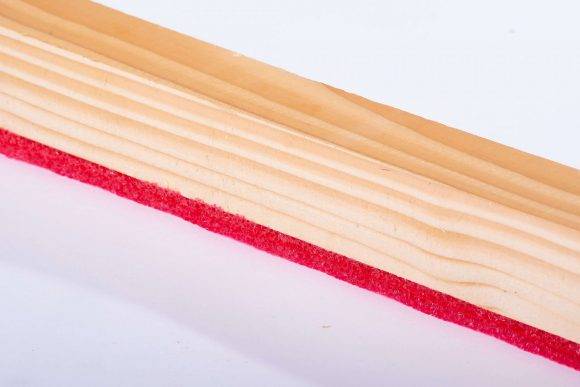

Soundis Acoustic Batten is manufactured using sustainably sourced kiln dried timber battens, which are factory bonded to a high performance 10 mm closed cell resilient layer.


Features and benefits:

  • Meets robust detail and approved part E of the building regulations and robust detail compliant.
  • Available in 50 mm and 70 mm height.
  • Allow for the construction of a spacious service void and provide lasting support for floating timber or chipboard floors.
  • A 10 mm resilient foam impact layer will ensure long lasting effects.
  • Cost-effective.
  • Easy to install.
  • Sustainably sourced kiln dried timber battens.
  • Weight can range from 0.83 kg/ Lm – 1.5 kg per batten.
  • Robust detail F-FT-3 for E-FC-1, E-FC-2, E-FC-7 and E-FS-1.
  • Robust acoustic battens consisting of a layer of extruded closed-cell polyethylene foam bonded to an FSC or PEFC certified timber batten.
  • Rigorously tested and compliant for steel, concrete and timber separating floors.
  • Low build.

General information

Color

Yellow

Finish

Wood grain

Material

Wood

Foam

Polyethylene

Timber

Shape

Rectangle

Length

2400 mm

Width

45 mm

Height

50 mm

70 mm

Uniclass

Pr_20_76_88_47 Insulating timber floor battensPrimary

CAWS

K20/20 Battened timber board floating floor

K20/150 Battened timber board floating floor

K11/115 Battened plywood floating floor

Specification data - Insulating timber floor battens

Size

45* x 50 mm (*regularized).

Shape

Rectangular.

Resilient layer

Polyethylene foam.

Guidance for specification option:

10 mm thick extruded closed-cell.

Surface finish

Wood grain.

Impact sound reduction

rd Δ Lw = 24 dB.

Thickness

50 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

80

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
