Soundis Acoustic Batten - Acoustic Batten

Name: Soundis Acoustic Batten - Acoustic Batten
Brand: Soundis
SKU: iM3KxZk2F9iSrQKJcgcA4t

Verified by manufacturer 6 months ago

Acoustic Batten 70 – 70 mm

Soundis

Third party certifications:

CHAS
Certificate type
Constructionline Gold
Certificate type
smas WORKSAFE
Certificate type
Acclaim Accreditation
Certificate type

High performance robust detail acoustic battens suitable for timber, concrete and steel floors.

Jump to:

+44 (0)330 056 3195 Website

Application

Soundis Acoustic Batten is a composite shallow acoustic timber batten, used for reducing impact sound on timber and concrete subfloors in both new build and refurbishment projects.

Typical acoustic performances include:

Concrete Insitu Floor.
Profiled metal deck.
Pre-cast concrete plank floor.
Timber joisted floor.
Steel joisted floor.
Timber web joisted floor.
Timber L beam joisted floor.

For more information please contact manufacturer

Description

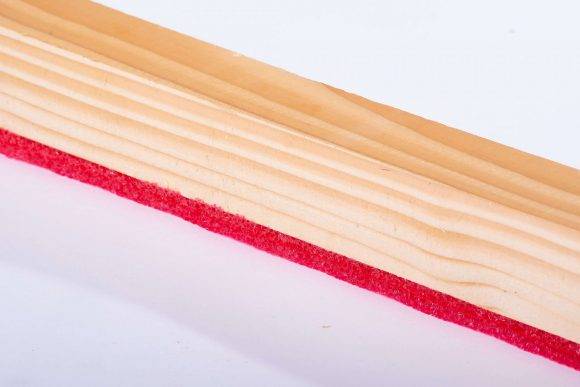

Soundis Acoustic Batten is manufactured using sustainably sourced kiln dried timber battens, which are factory bonded to a high performance 10 mm closed cell resilient layer.

Features and benefits:

Meets robust detail and approved part E of the building regulations and robust detail compliant.
Available in 50 mm and 70 mm height.
Allow for the construction of a spacious service void and provide lasting support for floating timber or chipboard floors.
A 10 mm resilient foam impact layer will ensure long lasting effects.
Cost-effective.
Easy to install.
Sustainably sourced kiln dried timber battens.
Weight can range from 0.83 kg/ Lm – 1.5 kg per batten.
Robust detail F-FT-3 for E-FC-1, E-FC-2, E-FC-7 and E-FS-1.
Robust acoustic battens consisting of a layer of extruded closed-cell polyethylene foam bonded to an FSC or PEFC certified timber batten.
Rigorously tested and compliant for steel, concrete and timber separating floors.
Low build.

General information

Color	Yellow
Finish	Wood grain
Material	Wood Foam Polyethylene Timber
Shape	Rectangle
Length	2400 mm
Width	45 mm
Height	50 mm 70 mm

Uniclass	Pr_20_76_88_47 Insulating timber floor battensPrimary
CAWS	K20/20 Battened timber board floating floor K20/150 Battened timber board floating floor K11/115 Battened plywood floating floor

Specification data - Insulating timber floor battens

Size	45* x 70 mm (*regularized).
Shape	Rectangular.
Resilient layer	Polyethylene foam. Guidance for specification option: 10 mm thick extruded closed-cell.
Surface finish	Wood grain.

Impact sound reduction	rd Δ Lw = 24 dB.
Thickness	70 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	80
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
