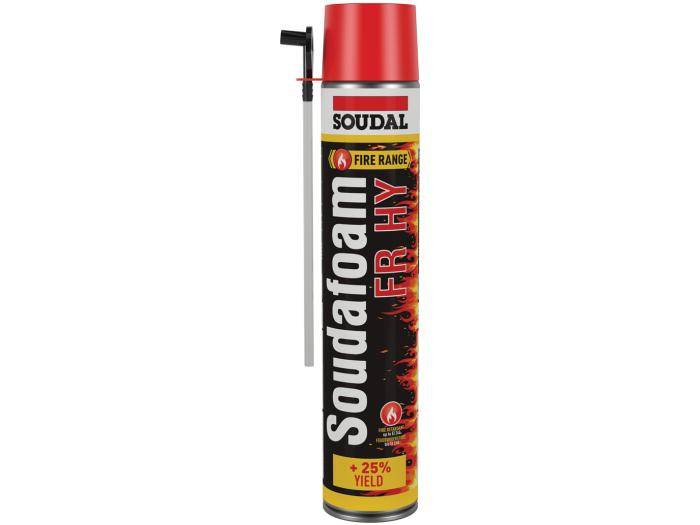

Soudafoam FR HY Fire Rated Expanding Foam - PU-foam with Fire Retardant Properties

Name: Soudafoam FR HY Fire Rated Expanding Foam - PU-foam with Fire Retardant Properties
Brand: Soudal (UK) Ltd
SKU: jYrGxHMos2RPqxCsRfuHoZ

Verified by manufacturer 23 days ago

Soudal (UK) Ltd

Product certifications:

EPD
Certificate type
European Technical Approval (ETA)
Certificate type
GEV-EMICODE® EC1 PLUS
Certificate type

One-component, self-expanding polyurethane foam with fire retardant properties for sealing and insulation. Gun applied and Handheld versions available.

Jump to:

Request BIM

+44 (0)1827 261092 Website

Application

Installation of fireproof doors and windows.
Sealing of fire retardant joints in walls and ceiling.
As part of the 'Soudal Fire Range' assortment for penetration seals and joints.
Sealing of all openings in roof constructions.
Apply of an acoustic baffle.
All foam applications in static joints.

Description

Soudafoam FR HY is a one-component, self-expanding, ready to use PU-foam, which contains HCFC- and CFC-free propellants who are not harmful for the ozonlayer. Soudafoam FR HY is a PU-foam with fire retardant characteristics according to the European standard EN 1366-4.

Features and benefits:

Fire resistant in a joint (EN 1366-4) for 240 minutes.
High filling capacity.
Good adhesion on all surfaces (except PE, PP and PTFE).
High insulation value, thermal and acoustic.
Very good bonding properties.
Water resistant (not watertight).
Not UV-resistant.

General information

Color	Pink
Material	Polyurethane
Shape	Formless
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_31_76_66 Polyurethane (PUR) expanding foam fillersPrimary

Specification data - Polyurethane (PUR) expanding foam fillers

Classification data
Material	One-part plastics expanding foam.
Colour	Pink.
Third-party certification	Environmental Product Declaration EPD-FEI-20220108-IBG1-EN. European Technical Approval ETA 21/0659. GEV-EMICODE® EC1 Plus Licence number: 11728/15.05.06.
Composition	Base: polyurethane. Consistency: stable foam, thixotropic.
Curing	Curing system: moisture curing. Skin formation to EN 17333-3, 9.5 minutes. Cutting time to EN 17333-3, 50 minutes.
Density	Approx. 40 kg/m³.
Sound insulation	To EN ISO 717-1, 60 dB.
Thermal Conductivity:	To EN 12667, 0.033 W/m·K.
Typical yield	To EN 17333-1, box yield: 750 mL yields approx. 34 L of foam; joint yield: 750 mL yields approx. 18 m of foam.
Shrinkage	To EN 17333-2, shrinkage after curing: <1%.
Expansion	To EN 17333-2, expansion after curing: <1%.
Compressive strength	To EN 17333-4, approx. 70 kPa.
Performance shear strength	To EN 17333-4, approx. 59 kPa.
Tensile strength	To EN 17333-4, approx. 134 kPa.
Temperature resistance	-40 to +90°C. Guidance for specification option: Fully cured.
Elongation	Elongation at Fmax to EN 17333-4, approx. 14.2%.
