Soteria® Multisensor Detector - Smoke detector

Verified by manufacturer over a year ago

Apollo Fire Detectors Ltd

High performance intelligent analogue addressable Multisensor detector with an optional isolator in the head along with five sensitivity mode settings.

Jump to:
BOS
+44 (0)23 9249 2412 Website

Description

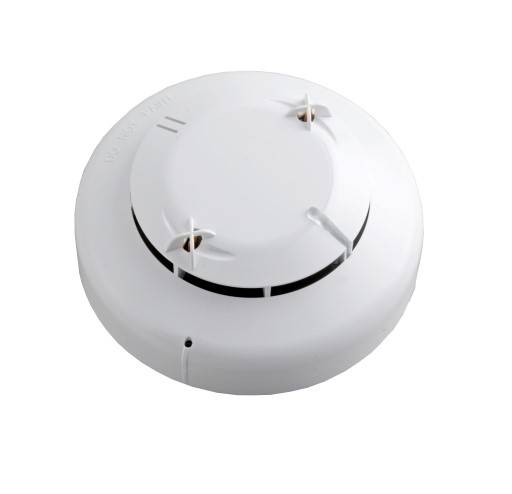

The SOTERIA® Optical/Heat Multisensor Detector uses new optical sensing technology, PureLight®, to detect smoke particles entering the chamber and is fitted with two thermistors for detecting heat.

It can be switched to detect smoke, heat or a combination of both offering flexibility.


Features and benefits:

  • Dual heat sensors.
  • PureLight® optical technology reduces false alarms and enhances smoke recognition.
  • Utilises digital CoreProtocol® communications.
  • Compatible with XP95 and Discovery systems*.
  • Compatible with existing fire control panels*.
  • Mechanically compatible with existing bases.
  • Available with or without integrated switchable isolator.
  • Tri-coloured LED status indicator.
  • Polycarbonate moulding for colour stability and strength.
  • Comprehensively tested to exceed EN 54-5 standard.
  • FasTest® for quicker testing of detectors.
  • XPERT card addressing or auto addressing.
  • Locking mechanism (grub screw).


*Note: Not all features are available when SOTERIA® devices are connected to an XP95 or Discovery fire control panel.

General information

Color

White

Finish

Gloss

Material

Polycarbonate

Shape

Circle

Width

100 mm

Guidance for specification option:

Diameter.

Height

38.5 mm

Warranty description

Ten year

Uniclass

Pr_75_80_30_29 Fire alarm panelsPrimary

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2016

4
