Sopralene Flam Garden 250 AF - Bituminous extensive green roof system on a metal deck
Verified by manufacturer 5 months ago
BBA Agrément Certificate
Certificate type

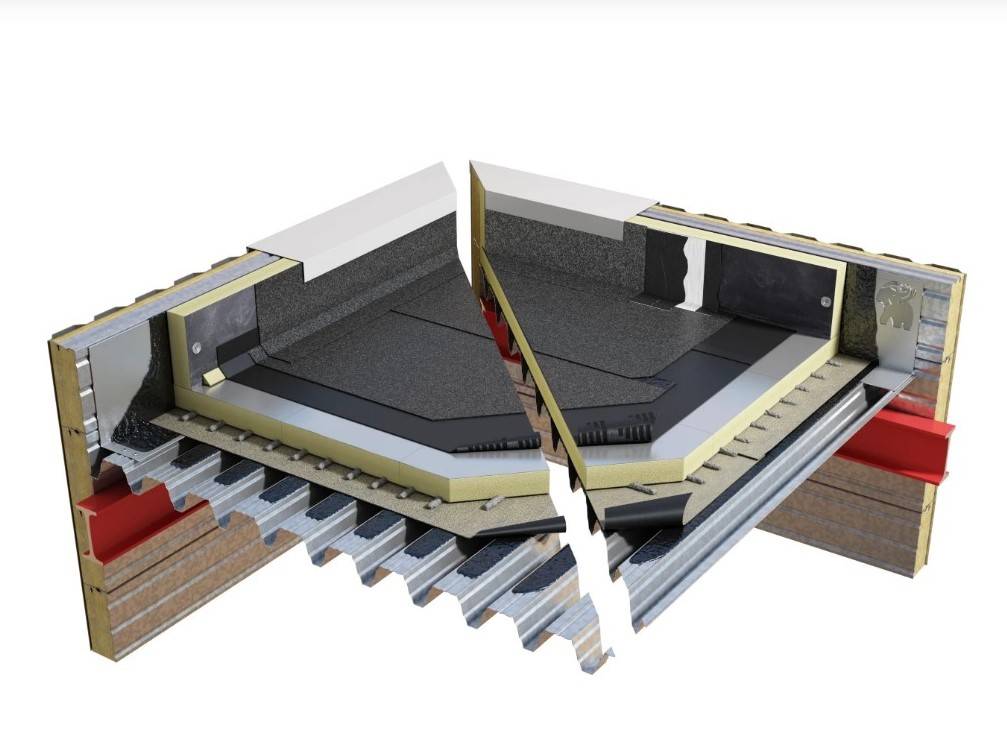

Multi layer bituminous green flat roof waterproofing system with PIR insulation and self adhered bituminous AVCL and base layer on a metal deck.
Application
Suitable for use under green roofs on a metal deck. For other uses and substrates, including use under a green roof, please see other listings or contact Soprema UK.
Description
A warm roof system with a root resistant cap sheet composed of elastomer modified bitumen and a non woven polyester reinforcement. Used as an upper layer within a multi layer waterproofing system. The upper surface is finished with slates and the overlap is protected by a thermofusible film. The lower surface is protected by a thermofusible film. An underlayer with a vapour-pressure and tension dispersion system, composed of elastomer modified bitumen and a composite polyester reinforcement.
PIR insulation faced with a polypropylene fleece finished bitumen glass working surface and a mineral glass facing to the under side and a self adhesive AVCL applied to a primed deck.
Features and benefits:
- High performance.
- Root resistant cap sheet
- Torch-on or hot-air method including the overlaps.
- Flexible until -20°C.
- CE marked to BS EN 13707.
- BBA Certified
- Extensive Broof(t4) testing.
General information
Color | Black |
Material | Bitumen Polymer Slate Polyester |
Warranty description | 25 year |
Uniclass | |
CAWS | J41/405 Single-layer reinforced bitumen waterproof covering J41/400 Built-up reinforced bitumen waterproof covering J41/135 Single-layer reinforced bitumen membrane cold deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering J41/125 Single-layer reinforced bitumen membrane inverted roof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/12 Reinforced bitumen membrane cold deck roof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering |
Specification data - Reinforced bitumen roofing sheets
Standard | To EN 13970:2004 and A1:2009. |
Material | |
Carrier material | Polyester. |
Bitumen modification | Elastomeric. |
Thickness (minimum) | 4.5 mm. |
Weight (minimum) | 5.7 kg/m². |
Surface finish | |
Top | Slate. |
Underside | Thermofusible film. |
Colour | Natural black. |
Third-party certification | BBA approved. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | - | 2 |
