Sonify by Zentia – Sonify Wall Absorber (Hexagon) - Sound absorption panels
Verified by manufacturer 8 months ago

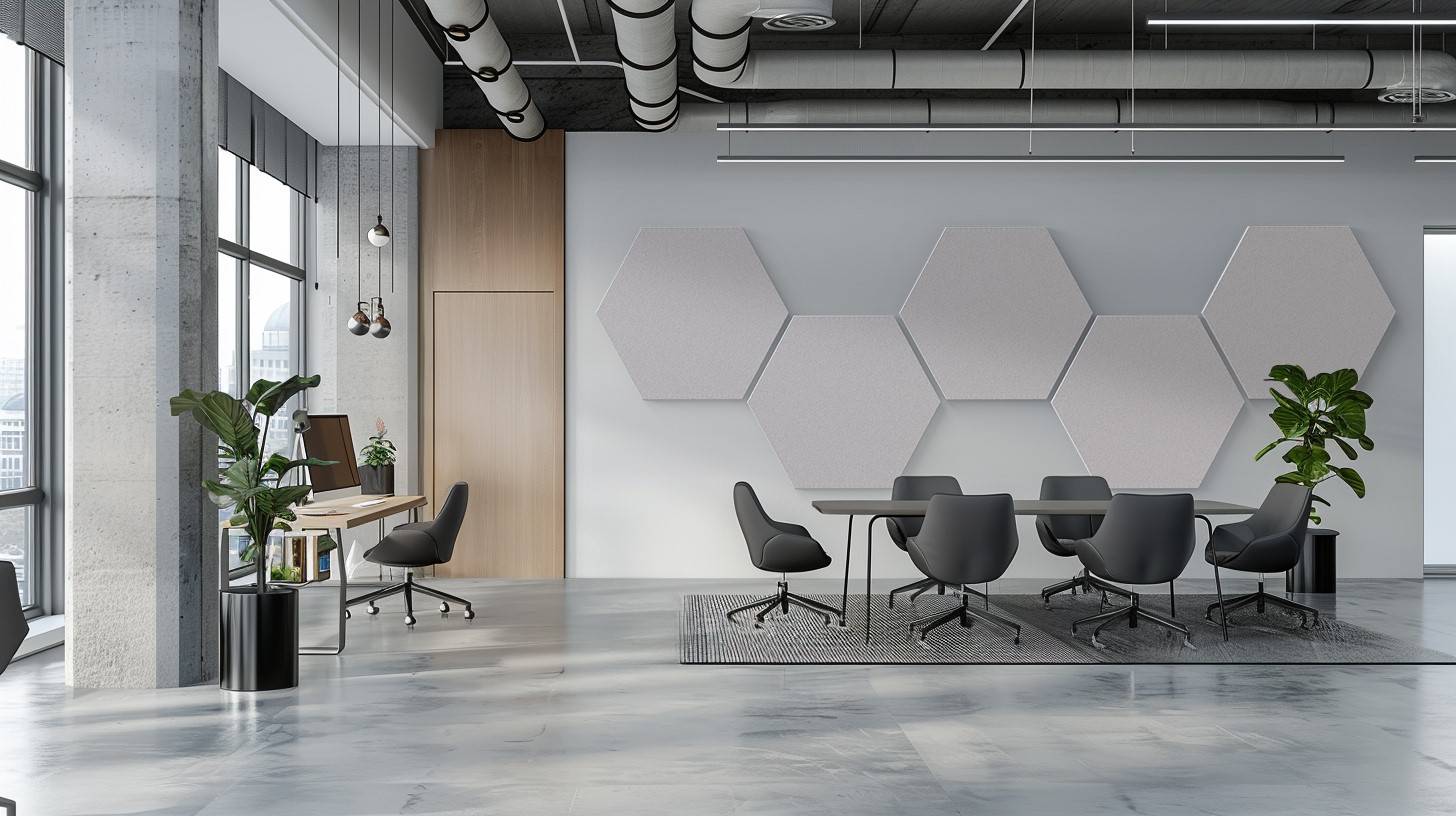

Hexagonal vertical sound absorption panels.
Application
Suitable for a range of environments including hospitality, education, retail and commercial spaces.
Description
Hexagonal vertical sound absorption panels for a range of environments.
Features and benefits:
- Enhanced vertical sound absorption contributes to a total room solution.
- Glued to the wall for fast efficient installation.
- Combine several panels to create a feature wall.
- Each design is ordered using an assigned kit ID and supplied as a ‘kit of parts’.
- Available in a wide range of 35 colours.
- Other shapes available (specified separately).
- Reduce noise levels, increase speech intelligibility and reduce reverberation time in the space.
General information
Color | Beige Black Blue Brown Green |
Finish | Laminated |
Material | Glass Fibre |
Shape | Hexagon |
Length | 1300 mm |
Width | 1160 mm |
Height | 40 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K13/160 Proprietary K13/160 Proprietary K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Specification data - Sound attenuator infill units
Form | Panel. |
Application | Wall mounting. |
Material | Glass-reinforced fibre. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class A to EN ISO 11654.Guidance for specification option: 0.16–2.47 (100–5000 Hz). |
Fire performance | |
Reaction to fire | To EN 13501-1, Euroclass A2-s2, d0. |
VOC emissions | To EN 13964, E1. |
Dimensions | |
Size (length x width) | 1300 x 1160 mm. |
Thickness (overall) | 40 mm. |
Profile | Hexagon. |
Edges | Square. |
Finish | Laminate. |
Colour | BK1.BL1.BL2.BL3.BL4.BL5.BR1.BR2.BR3.BR4.GR1.GR2.GR3.GR4.GR5.GY1.GY2.GY3.OR1.OR2.OR3.PU1.PU2.PU3.PU4.PU5.RE1.RE2.RE3.RE4.RE5.WH1.YE1.YE2.YE3. |
Accessories | Not required.CT-1 Power Grab ‘n’ Bond (PGB) adhesive.Guidance for specification option: Recommended method of fixing the panels. |
Light reflectance | 87%. |
Weight | 7 kg/panel. |
Sustainability data
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Zentia Sonify Wall Absorbers
