Rectangle - 2360 x 1160 mm

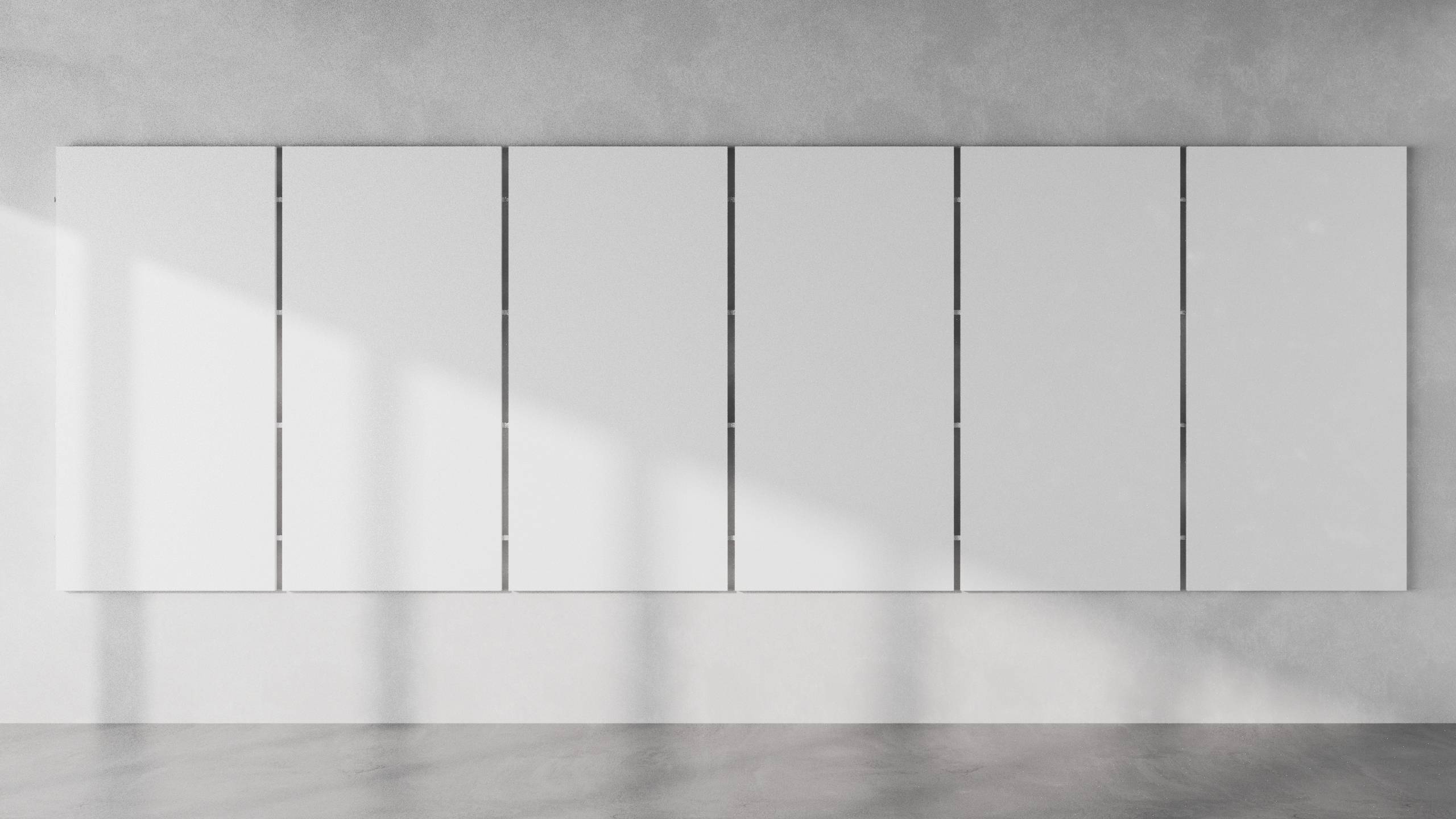

Rectangular vertical sound absorption panels.
Suitable for a range of environments including hospitality, education, retail and commercial spaces.
Rectangular vertical sound absorption panels for a range of environments.
Features and benefits:
Color | Beige Black Blue Brown Green |
Finish | Laminated |
Material | Glass Fibre |
Shape | Rectangle |
Length | 1160 mm 1760 mm 2360 mm |
Width | 560 mm 1160 mm |
Height | 40 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K13/160 Proprietary K13/160 Proprietary K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Panelling | |
Type | Individual panels. |
Surface material | Glass-reinforced fibre. |
Surface finish | Laminate. |
System accessories | Wall cleat.Panel cleat.Spacer bar.End piece.End cap.Splice plate. |
Application | Wall mounting. |
Colours | BK1. Guidance for specification option: RAL 9005. BL1. Guidance for specification option: RAL 5015. BL2. Guidance for specification option: RAL 260 30 20. BL3. Guidance for specification option: RAL 260 50 25. BL4. Guidance for specification option: RAL 260 80 15. |
Dimensions | 2360 x 1160 mm. |
Edges | Square. |
Light reflectance | 87%. |
Profile | Rectangle. |
Purpose | Absorber. |
Reaction to fire | To EN 13501-1, Euroclass A2-s2, d0. |
Sound absorption | Class A to EN ISO 11654. Guidance for specification option: 0.40–1.00 (125–2000 Hz). |
Thickness (overall) | 40 mm. |
VOC emissions | To EN 13964, E1. |
Weight | 3.5 kg/panel. Guidance for specification option: 1160 x 560 mm. 5 kg/panel. Guidance for specification option: 1760 x 560 mm. 11 kg/panel. Guidance for specification option: 1760 x 1160 mm. 14 kg/panel. Guidance for specification option: 2360 x 1160 mm. |
Material | Glass Fibre |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
