Sonata Baffle - Acoustic Ceiling Baffle
Verified by manufacturer 2 months ago
Alcumus SafeContractor
Certificate type
An acoustic foam core, fabric faced ceiling baffle.
Application
Acoustic baffle suspended ceiling systems suitable for commercial, public and educational applications.
Description
The Sonata Baffle absorber comprises a technical acoustic foam slab with factory-bonded fabric to all faces and edges; a shallow weighting strip is applied to the bottom edge to offset any effects of air movement within the building causing absorber “drift”. Two D-ring suspension points per absorber are factory-fitted to the top of the Sonata Baffle ready to hang in final position.
Features and benefits:
- Available in a range of fabric colours.
- Low-cost solution to controlling reverberation and noise.
- Overcomes high level services obstructions.
- Acoustic foam core eliminates the ‘fibre fall out’ associated with mineral fibre absorbers.
- Simple to install and to remove for decoration, access or relocation.
General information
Color | Grey Other |
Finish | Woven |
Material | Foam Fabric |
Shape | Rectangle |
Length | 1200 mm |
Width | 500 mm 600 mm |
Height | 50 mm |
Uniclass | |
CAWS | K40/265 Infill units K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system |
Specification data - Acoustic baffle suspended ceiling systems
Support fasteners | Vine-eye soffit fixings with snap hook.Guidance for specification option: Baffle soffit mounting. |
Ceiling units | Acoustic baffle. |
System accessories | Two integral D-rings per baffle. |
Acoustic infills | Foam. |
Sound absorption | Class D to BS EN ISO 11654, αw = 0.50. Guidance for specification option: Tested to BS EN ISO 354:2003. |
Fire performance | To BS476 (Part 6 1981 and Part 7 1987), foam core: Class 0; |
Size | 1200 x 500 x 50 mm. 1200 x 600 x 50 mm. Bespoke. Guidance for specification option: Bespoke sizes available, consult manufacturer. |
Orientation | Landscape. Portrait. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Foam Fabric |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Alcumus SafeContractor
SafeContractor Certificate
Alcumus SafeContractor
SafeContractor PQQ Certificate
Literature

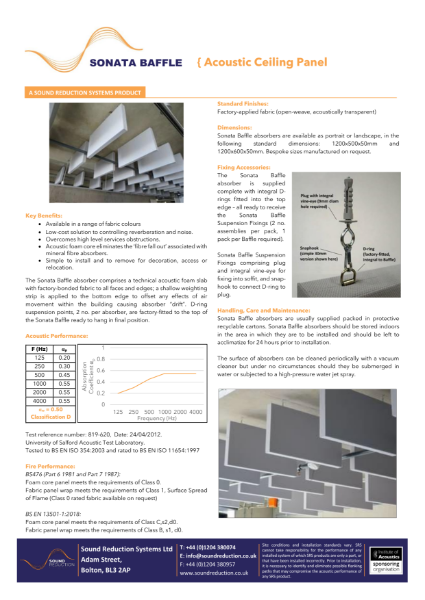

Sonata Baffle – Technical Data Sheet.
