Application

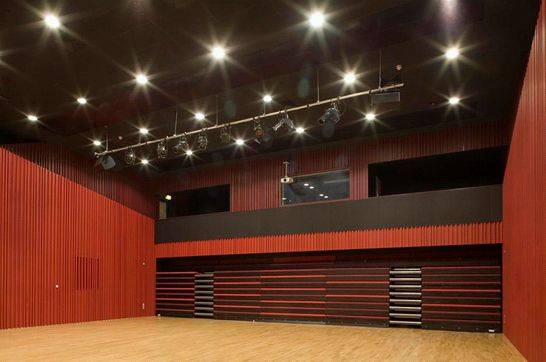

For applications requiring a dark ceiling, having low light reflection and good sound-absorbing properties.

Description

For applications requiring a dark ceiling, having low light reflection and good sound-absorbing properties. Ecophon Sombra A has an exposed grid system. Each tile is easily demountable.

Features and benefits:

  • The tiles are manufactured from high-density glass wool.
  • The visible surface is a matt black, batch-painted glass tissue, and the back of the tile is covered with glass tissue. The edges are natural.
  • To improve absorption in the low-frequency range, Ecophon Extra Bass can be installed on top of the suspended ceiling.
  • The product is also available with a sound reflecting surface (gamma) with the same visual appearance.
  • For best performance and system quality, use Ecophon´s matt black Connect grid and accessories.
  • The grid is manufactured from galvanized steel.

Application:

For applications requiring a dark ceiling, having low light reflection and good sound-absorbing properties.

General information
Finish

Batch-painted glass tissue

The surface allows the sound energy to penetrate into and be absorbed by the glass wool.

Gamma, batch-painted glass tissue

A sound-reflecting surface.

Features

To improve absorption in the low-frequency range; available with a sound-reflecting surface (gamma) with the same visual appearance

Material

Tiles: high-density glass wool

Grid: galvanized steel

Shape

Square or rectangular

Size

Two sizes available

WarrantyDescription

Full warranty available upon request

Uniclass 2015
Ss_30_25_22_90 Unit/ modular suspended ceiling systemsPrimary
Specification data - Unit/ modular suspended ceiling systems
Product Reference

Sombra A

Ceiling support

Interlocking Connect™ T24 C1 grid

Support fasteners

Adjustable hangers/ wire

100 mm overall system depth.

Direct fixing brackets

50 mm overall system depth.

Ceiling units

High-density glass wool tiles

System accessories

None

Connect™ Bridging Profile and Clip

For luminaire integration in panels.

Extra Bass

Tile -
Size (l x w)

600 x 600 mm

1200 x 600 mm

Tile thickness

15 mm

Finish

Batch-painted glass tissue

The surface allows the sound energy to penetrate into and be absorbed by the glass wool.

Gamma, batch-painted glass tissue

A sound-reflecting surface.

Grid colour

Black 01 matt

Grey 01 metallic

Trim

Connect™ Angle Trim C1

Connect™ Channel Trim C1

Connect™ Column Trim C1

Connect™ Distance Trim C1

Connect™ Flexible Wall Trim C1

Connect™ F-trim C1

Connect™ Shadow Channel Trim C1

Connect™ Shadowline Trim C1

Weight

3 kg/m² (4 kg/m² with Extra Bass: approximate, including Connect grid system)

Demounting depth (minimum)

130 mm (170 mm with Extra Bass)

Indoor climate

Certified in accordance with Indoor Climate Labelling. Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1

Moisture resistance

The tiles withstand a permanent ambient RH of up to 95% at 30°C without sagging, warping or delaminating (EN 13964)

Fire safety

Complies with BS EN 13501-1, Class A2-s1, d0

Sound absorption

200 mm-deep system, standard finish: in accordance with EN ISO 11654, Class A. 200 mm-deep system, gamma finish, with or without Extra Bass: in accordance with EN ISO 11654, Class D

Cleaning

The ceiling system can withstand daily dusting and vacuum cleaning

Standard product features

Colour:

Black 997 (nearest NCS colour sample S 9000-N, 3-4% light reflectance).

Features:

To improve absorption in the low-frequency range; available with a sound-reflecting surface (gamma) with the same visual appearance.

Finish:

Two finishes available. Natural edges.

Material:

  • Tiles: high-density glass wool.
  • Grid: galvanized steel.

Shape:

Square or rectangular.

Size:

Two sizes available.

Warranty description:

Full warranty available upon request.

Recycled content:

>55%.

Embodied carbon:

2.73 kg CO₂ equiv/m², in conformity with ISO 14025/ EN 15804.

Red Listed materials:

All Ecophon products are free from substances of very high concern (SVHC) and any compound on the list of REACH in the EU.

Country of origin:

Sweden, Finland or Poland.

Environmental information
Embodied carbon

2.73 kg CO₂ equiv/m², in conformity with ISO 14025/ EN 15804

Recycled content

>55%
