Solshield GP Titanbond
Verified by manufacturer 2 days ago
A membrane for waterproofing/ tanking underground structures, where harmful ground gases are anticipated.
Application
- For the waterproofing/ tanking of underground structures, where harmful ground gases are anticipated.
- Suitable for sites previously used as petrol stations, coalfields, landfill sites, contaminated industrial sites, fracking sites and heavily contaminated sites.
Description
GP TITANBOND is a pre-applied waterproofing membrane comprised of GP TITAN and a specialist bonded geotextile to provide a bonding layer for poured concrete, specifically for waterproofing applications. It offers a safe solution for the protection of buildings and occupiers against all levels of hydrocarbons, methane, carbon dioxide and radon ingress.
Features and benefits:
- Complies with BS 8485:2015+A1:2019 and CIRIA C748.
- Quick and easy installation.
- Suitable for ground gas/ hydrocarbon protection to NHBC Green, Amber 1, 2 and Red site characteristics.
- Suitable against most aggressive chemicals.
- Also acts as a high-performance DPM.
- Long-term durability (guaranteed for the lifetime of a building).
General information
Color | Silver |
Material | Polypropylene |
Shape | Rectangle |
Length | 25000 mm |
Width | 1900 mm |
Height | 2 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | J40/297 Waterproofing/ damp-proofing/ gas-retardant membrane |
Specification data - Plastics sheets
Classification data | |
Product reference | Solshield GP Titanbond. |
Material | Polypropylene. |
Purpose | Gas retardance and water resistance. |
Standard | To BS EN 13967, Type A. |
Performance characteristics | |
Tensile strength (minimum) | >400 N/50mm. Guidance for specification option: CMD. |
Tear resistance | >300 N. |
Resistant to underground gases | BS EN 13967, Type A sheet. Manufacturer guidanceRefer to manufacturer’s literature for transmission rates and permeability. |
Fire performance | Reaction to fire to EN 13501-1, Class E. |
Form | Twin ply. |
Physical properties | |
Colour | Silver. |
Weight (minimum) | 650 g/m². |
Dimensions | |
Thickness (minimum) | 2 mm. |
Width (minimum) | 1.9 m. |
Roll length (minimum) | 25 m. |
Sustainability data
Material | Polypropylene |
Literature

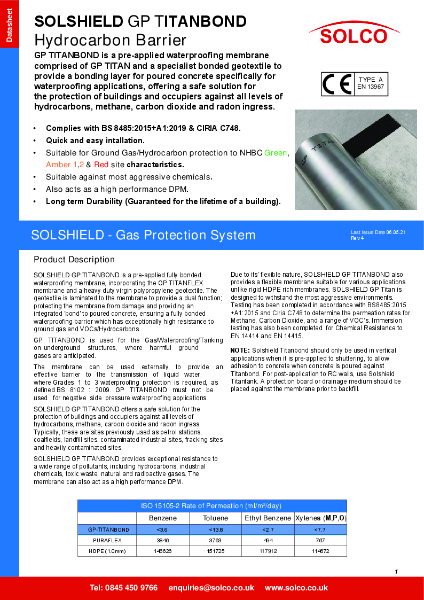

Solshield GP Titanbond Technical Data Sheet
