Solsheet GR - Self-Adhesive Membrane
Verified by manufacturer 4 days ago
Gas resistant self-adhesive waterproof membrane.
Application
- Internal and external tanking of underground structures.
- Land-fill sites and specific geographical locations.
- Car parks and retaining walls.
- Subways and lift shafts.
Description
Solsheet GR Self-Adhesive Membrane is a 1.5 mm thick, preformed, cold-applied, waterproofing system. It is compatible with concrete, smooth brickwork, and blockwork, as well as screeded substrates, and is resistant to the chemicals likely to be present in normal service conditions.
Solsheet GR Self-Adhesive Membrane is manufactured from an aluminium and cross-oriented HDPE film laminated to a layer of rubber-modified bitumen adhesive.
Solsheet GR Self-Adhesive Membrane conforms to the requirements of BS 8485 and BS 8102. Substrates should be primed with Solseal HP Primer before application. Solsheet GR Self-Adhesive Membrane can be used with Solcourse GR DPC and other Solshield Gas Membranes.
Features and benefits:
- Resistant to Rn, CH4, CO2, and hydrocarbon vapours.
- Cross-laminated film provides dimensional stability, high tear strength, puncture resistance, and impact resistance.
- Polymer-modified bitumen coating.
- Cold applied – no heating via flames or hot bitumen on site.
- Flexible – will accommodate minor settlement and shrinkage.
- Comprehensive range of accessories and ancillary products.
General information
Color | Brown |
Material | High density polyethylene (HDPE) Bitumen Aluminium |
Shape | Rectangle |
Length | 19050 mm |
Width | 1050 mm |
Height | 1.5 mm |
Uniclass | |
CAWS | J40/180 Self-adhesive bitumen membranes J40/40 Self-adhesive bitumen membranes |
Specification data - Bitumen sheets
Classification data | |
Standard | To BS 8485 and BS 8102. |
Form | Gas-resistant tanking membrane. |
Material | |
Carrier material | High-density polyethylene (HDPE). |
Bitumen modification | Elastomeric. |
Gas inhibitor | Aluminium foil. |
Weight (minimum) | 1.3 kg/m². |
Thickness (minimum) | 1.5 mm. |
Surface finishes | |
Underside | Self-adhesive backing. |
TensileStrength | To EN 12311-1, 230 N/50mm. |
Watertightness | To EN 1928, watertight at 2 kPa. |
Tear resistance | To EN 12310-1, 140 N (transverse); 150 N (longitudinal). |
Reaction to fire | To 13501-1, Class E. |
Sustainability data
Material | High density polyethylene (HDPE) Bitumen Aluminium |
Literature

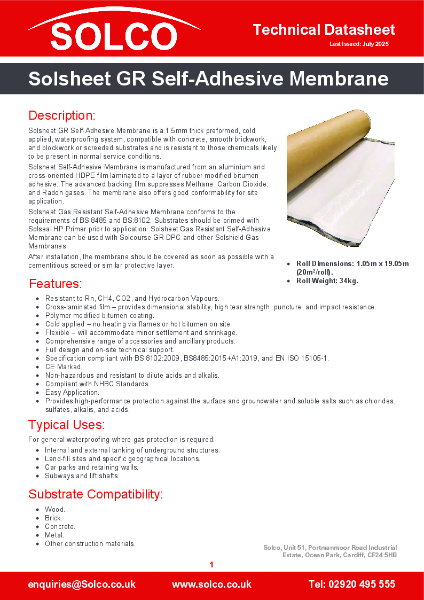

Solsheet GR Self-Adhesive Membrane Technical Data Sheet
