Application

For use in areas it not possible to install wall-to-wall ceilings. Suitable for:

  • Buildings where the volume should be maintained.
  • Areas where the natural light is brought into the room from skylights.
  • When TABS (thermally activated building system) is used as a cooling system.

Description

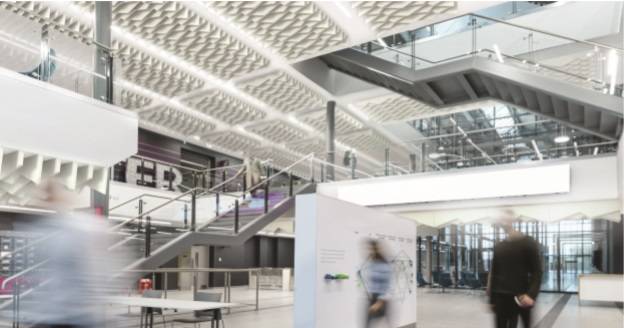

Demountable vertical baffle ceiling system with a zigzag formation (unframed).

Features and benefits:

  • Provides design and colour freedom.
  • Can be suspended in different ways.
  • Edges are straight-cut and painted.
  • Easy to clean.
  • Fully recyclable.
  • Consists of Ecophon Solo™ Baffles ZigZag/ Anchor or Solo Baffles ZigZag/ Hook and Connect™ accessories, with an approximate weight of 2–3 kg/m.
  • CE marked to EN 13964.

Application:

For use in areas it not possible to install wall-to-wall ceilings. Suitable for:

  • Buildings where the volume should be maintained.
  • Areas where the natural light is brought into the room from skylights.
  • When TABS (thermally activated building system) is used as a cooling system.

General information
Features

Zigzag formation; provides design and colour freedom. Can be suspended in different ways, and edges are straight-cut and painted

Finish

Akutex FT – the surface allows almost 100% of the sound energy to penetrate into and be absorbed by the glass wool, providing optimum sound absorption. Painted edges

Material

High-density glass wool

Shape

Rectangular

Size

Two sizes available

WarrantyDescription

Full warranty available upon request

Uniclass 2015 Acoustic baffle suspended ceiling systems (Ss_30_25_22_01)
Specification data
Product Reference

Solo™ Baffle Zig Zag

Ceiling support

Connect™ Adjustable wire hanger

Suspended using Solo™ Baffle Hook.

Connect™ Baffle profile

Direct using Solo™ Baffle Anchor.

Connect™ grid system

Suspended using Solo™ Baffle Hook.

Support fasteners

Solo™ Baffle Anchor or Solo™ Baffle Hook

Ceiling units

High-density glass wool baffles

Panelling -
Size (l x w)

1800 x 300 mm

1800 x 600 mm

Thickness

40 mm

Colour/ Finish

Cloudy Day

Nearest NCS colour sample S 1500-N, 62% light reflectance.

Scallop Shells

Nearest NCS colour sample S 1515-Y80R.

Peach Rose

Nearest NCS colour sample S 1515-Y80R.

Goji Berry

Nearest NCS colour sample S 3030-Y80R.

Sage Garden

Nearest NCS colour sample S 3010-B30G.

Eucalyptus Leaf

Nearest NCS colour sample S 5010-B30G.

Summer Forest

Nearest NCS colour sample S 6030-G10Y.

Dark Diamond

Nearest NCS colour sample S 9000-N, 4% light reflectance.

Golden Field

Nearest NCS colour sample S 1040-G90Y, 61% light reflectance.

Highland Fog

Nearest NCS colour sample S 2005-G, 55% light reflectance.

Moonlight Sky

Nearest NCS colour sample S 7020-R90B, 7% light reflectance.

Morning Drizzle

Nearest NCS colour sample S 1002-B, 69% light reflectance.

Ocean Storm

Nearest NCS colour sample S 4020-R90B, 24% light reflectance.

Ruby Rock

Nearest NCS colour sample S 4050-R10B, 7% light reflectance.

Silent Steam

Nearest NCS colour sample S 2010-B, 45% light reflectance.

Silk Slate

Nearest NCS colour sample 7000-N, 13% light reflectance.

Silver Stone

Nearest NCS colour sample S 4502-Y, 29% light reflectance.

Sunset Heat

Nearest NCS colour sample S 2070-Y60R, 20% light reflectance.

Volcanic Ash

Nearest NCS colour sample 2002-Y, 56% light reflectance.

White Frost

Standard. White 500, Nearest NCS colour sample S 0500-N, 85% light reflectance (of which more than 99% is diffuse reflection). Retro reflection coefficient 63 mcd/(m2lx). Gloss <1.

Indoor climate

Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1

Moisture resistance

The tiles withstand a permanent ambient relative humidity (RH) of up to 70% at 25°C without sagging, warping or delaminating (EN 13964)

Fire safety

Complies with BS EN 13501-1, Class A2-s1, d0

Sound absorption

In accordance with EN ISO 354:2003

Cleaning

The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping

Standard product features

Colour:

Wide range available.

Features:

Zigzag formation; provides design and colour freedom. Can be suspended in different ways, and edges are straight-cut and painted.

Finish:

Akutex FT – the surface allows almost 100% of the sound energy to penetrate into and be absorbed by the glass wool, providing optimum sound absorption. Painted edges.

Material:

High-density glass wool.

Shape:

Rectangular.

Size:

Two sizes available.

Warranty description:

Full warranty available upon request.

Recycled content:

>56%.

Embodied carbon:

8.07 kg CO₂ equiv/m², in conformity with ISO 14025/ EN 15804.

Red Listed materials:

All Ecophon products are free from substances of very high concern (SVHC) and any compound on the list of REACH in the EU.

Country of origin:

Denmark.

Environmental information
Embodied carbon

8.07 kg CO₂ equiv/m², in conformity with ISO 14025/ EN 15804

Recycled content

>56%
