SolidRail Freestanding Guardrail - Freestanding Permanent Guardrail
Verified by manufacturer 2 days ago
Statement of compliance
Certificate type
SolidRail is a lightweight and cost-effective permanent freestanding roof edge protection solution, fully compliant with BS 13700:2021 - Permanent Counterbalanced Guardrail Systems.
Application
Freestanding aluminium guardrail designed and tested to BS 13700:2021 as a permanently installed counterbalanced system. Suitable for flat roofs up to 5° pitch. Designed for new and existing buildings.
Can also be installed as a temporary guardrail to BS EN 13374:2013+A1:2018 Class A.
Description
SolidRail is an aesthetic guardrail fully conforming to BS 13700:2021 for permanent counterbalanced guardrail systems, consisting of narrow uprights with top and mid handrails positioned on the inside, making the system visually minimal, sleek, and stylish. The system can be either freestanding on the roof, meaning no penetrations into the waterproofing, or can be fixed to suitable structure.
Features and benefits:
- A wide range of components and accessories are available to ensure that the system can be installed to suit the shape of the roof area to be protected.
- All components are also available in any RAL colour to match existing features and colour schemes.
- The SolidRail guardrail fully conforms to BS 13700:2021, EN 13374:2013+A1:2018 Class A and EN ISO 14122-3:2016.
General information
Color | Silver Guidance for specification option: Stanchions and Rails Black Guidance for specification option: Counterweights Other Guidance for specification option: Metal components can be powder coated to any RAL. |
Finish | Mill Guidance for specification option: Can be Powder Coated to a specific RAL. Powder-coated |
Material | Aluminium Guidance for specification option: Stanchions and rails. Plastic Guidance for specification option: Recycled plastic. Concrete Guidance for specification option: Counterweight filling. |
Shape | Circle Guidance for specification option: Top rail, mid rail, and kick rail. Rectangle Guidance for specification option: Vertical stanchion. |
Length | Bespoke |
Width | 1315 mm Guidance for specification option: Counterweight length. |
Height | 1100 mm |
Warranty description | Ten year Guidance for specification option: 10 year warranty is for aluminium parts only. Manufacturer guidanceCounterweights and rubber sole are not covered by this warranty. |
Uniclass | |
CAWS | L35/170 Guarding system |
SKU Code | Not applicable |
Product range |
Specification data - Metal pedestrian parapet systems
Classification data | |
Description | Permanent freestanding roof edge protection guardrail. |
System performance | Guidance for specification option: Insert requirements. |
System manufacturer | Eurosafe Solutions Ltd. |
Standard | Fully conforms to BS 13700:2021, EN 13374:2013+A1:2018 Class A and EN ISO 14122-3:2016. |
Preparatory work | To system manufacturer’s recommendations. |
Posts | Manufacturer's standard. |
Post foundations | Not applicable (freestanding with counterweights). |
Base boards | Not required. Toeboards. Guidance for specification option: Consult manufacturer for information and insert details/ requirements where appropriate. |
Rails | Circular; 45 mm (top rail), 35 mm (mid rail). Guidance for specification option: Mid-rail. |
Panels | No applicable. |
System accessories | Not required. Access gates. Guidance for specification option: Consult manufacturer for information and insert details/ requirements where appropriate. |
Samples required | Manufacturer guidanceSamples can be provided upon request. |
System completion | Manufacturer guidanceSystem Technical File and certification is issued upon completion as defined in BS 13700:2021. |
Design | Guidance for specification option: As drawing etc., insert details. |
Finish/ Colour | Mill. Powder-coated, RAL. Guidance for specification option: Insert colour requirement. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Manufacturing plant location | |
Material | Aluminium Guidance for specification option: Stanchions and rails. Plastic Guidance for specification option: Recycled plastic. Concrete Guidance for specification option: Counterweight filling. |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 16 kg CO₂ eq/kg |
Declared unit | 16 kg CO₂ eq/kg Self-declared |
Recyclability | 100% Guidance for specification option: Fully recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | Ten year |
Product certifications
Statement of compliance
SolidRail Declaration of Conformity
Literature
Literature type
Eurosafe SolidRail Technical Datasheet
SolidRail Declaration of Conformity
Eurosafe SolidRail Brochure
Case studies

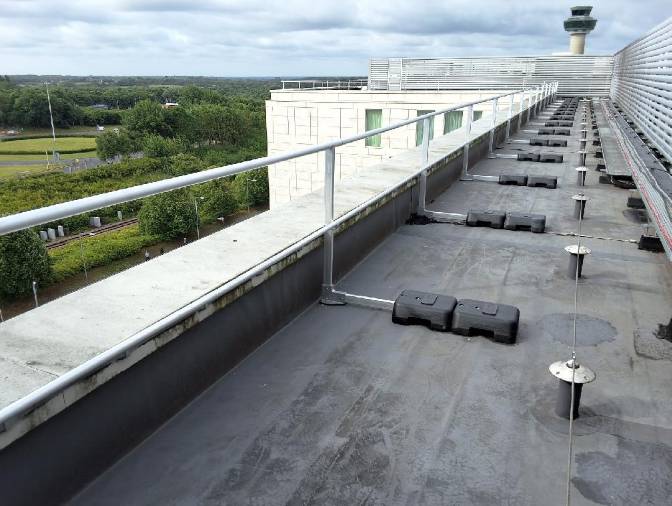

Hampton By Hilton, London Stansted Airport
