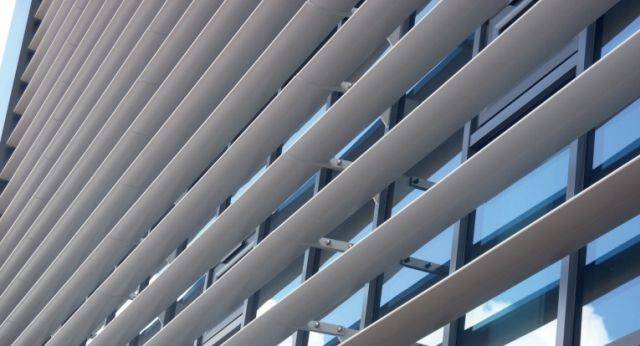

Aluminium external solar shading system available with a wide range of blade profiles suitable for horizontal or vertical application to the building external facade.
For external use on the windows of buildings to provide high performance solar shading to windows/ glazed facade providing aesthetic structures serving to reduce direct solar heat gain into the building workspace to reduce internal space temperatures and provide energy conservation by assisting to reduce air conditioning plant size.
Aluminium external solar shading system, available in a range of symmetrically shaped ‘elliptical’ aerofoil and rectangular or trapezoidal solar shading fin profiles.
Features and benefits:
Applications:
For external use on the windows of buildings to provide high performance solar shading to windows/ glazed facade providing aesthetic structures serving to reduce direct solar heat gain into the building workspace to reduce internal space temperatures and provide energy conservation by assisting to reduce air conditioning plant size.
Material | Aerofoils/ Fin Profiles: Extruded aluminium to EN 12020 grade 6063:T6 temper, corrosion resistant |
Uniclass 2015 |
Product Reference | Solex™ HALO Solar Shading |
Design | Insert details |
Blade | - |
Blade profile | HALO-100100 x 25 mm HALO-150150 x 30 mm HALO-200200 x 40 mm HALO-300300 x 50 mm HALO-400400 x 65 mm |
Colour | Anodized, colourInsert requirement, any standard anodized colour. Anodized, naturalTo BS EN ISO 7599. Polyester powder coated, RAL/ BSTo BS EN 12206-1; insert requirement, any standard RAL or BS code. |
Profile geometry | CircularEllipticalStandard. RectangularSquareTrapezoidalBespokeInsert requirements. |
Aerofoil angle | 0–90°, 45° as standard. |
Orientation | HorizontalVertical |
Operation | OperableStatic |
Structure | Not requiredStructural support systemSee 'Options' below and insert requirements. |
Frame | Consult manufacturer for material and configuration options. |
Standard product features | Material Aerofoils/ Fin Profiles: Extruded aluminium to EN 12020 grade 6063:T6 temper, corrosion resistant. |
Product Options | Aerofoil angle: Structurally, optimum performance is usually achieved with the aerofoils positioned at an angle of 45°. Span: Dependent on profile size and angle of inclination; consult manufacturer for details. Support structure: Solinear offers a design service to provide bespoke engineered solution to latest ISO/ BS standards and codes of practise; consult manufacturer for details. |
