SolarDek™ Rubber Foot
Verified by manufacturer 6 days ago
Rubber foot for use on Air Source Heat Pumps (ASHP), pipe work/cable trays and HVAC units.
Application

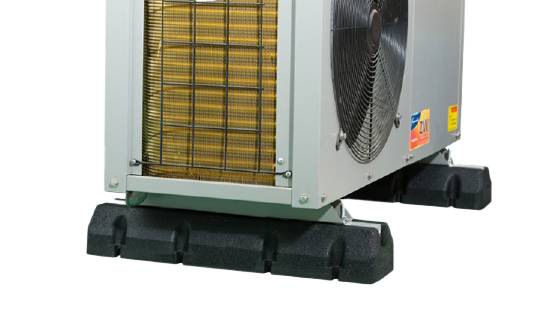

Floor mounted rubber support designed to support Air Source Heat Pumps (ASHP), pipe work/cable trays and HVAC units.
Description

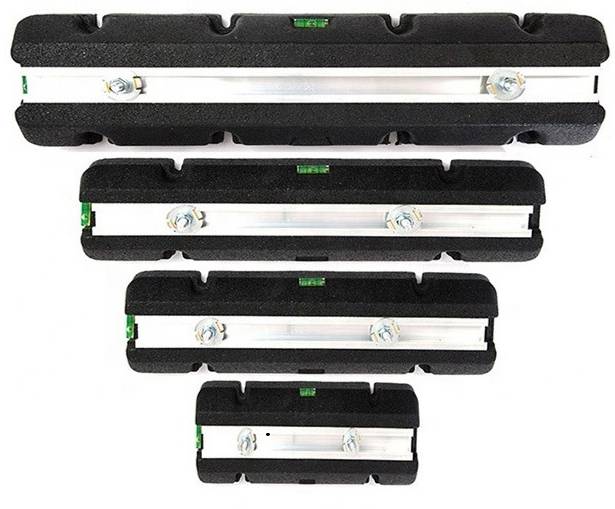

The SolarDek Rubber Foot complies with the EU ROHS standard. Rubber Feet are supplied with Aluminium 41 x 21 channel section rail with two locking cam bolt, nut, washer and spirit level. The products are a floor mounted rubber support designed to support Air Source Heat Pumps (ASHP), pipe work/cable trays and HVAC units. Additionally, the feet provide moderate amounts of noise and vibration absorption. Suitable for external and internal locations for temperatures between -40 to 80°C.
General information
Color | Black |
Finish | Smooth |
Material | Rubber |
Shape | Rectangle |
Length | Bespoke |
Width | 250 mm 400 mm 600 mm 1000 mm |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | P10/500 Anti-vibration mats or pads |
SKU Code | SDRF |
Specification data - Pad mountings
Classification data | |
Material | Recycled rubber |
Size | 250 x 163 x 98 x 210 mm. Guidance for specification option: 80–220 kg bearing weight. 400 x 163 x 98 x 360 mm. Guidance for specification option: 130–330 kg bearing weight. 600 x 163 x 98 x 560 mm. Guidance for specification option: 250–600 kg bearing weight. 1000 x 163 x 98 x960 mm. Guidance for specification option: 300–1000 kg bearing weight. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Manufacturing plant location | |
Material | Rubber |
Expected Life | Ten year |
Literature
Solar Brochure
