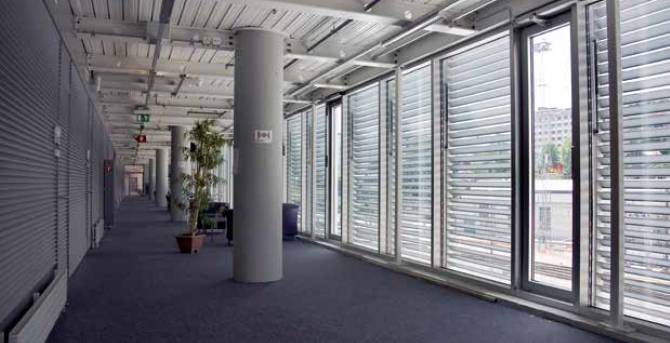

Solar Shading Brise Soleil Sunclips® Vertical Cassettes
Verified by manufacturer 1 month ago
Sunclips® SE.096.01
Sunclips® SE.096.01
Vertical permanent sun protection.
Application
Solar shading applications.
Description
Vertical permanent sun protection where multiple blades are installed between end plates as cassettes. Mounting the cassettes directly to a structural substructure using brackets or fixing on knife.
Features and benefits:
- Reduces solar heat gain.
- Pitch and inclination of the blades can be freely chosen.
- Blades can be matched to Sunclips fixed horizontal or vertical louvre units.
- Choice of different versions of the sideways end plates.
- The cassettes can be delivered to site fully assembled.
General information
Color | Silver Grey Other |
Finish | Anodized Powder-coated |
Material | Aluminium Stainless steel Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year Ten year Manufacturer guidance
|
Uniclass | |
CAWS | L10/59 Solar shading system L10/670 Brises-soleil |
Product range |
Specification data - Composite brise-soleil units
Support arms | |
Material | Stainless steel. |
Brace arms | |
Material | Stainless steel. |
Fixing | Mounting on knife.Mounting with brackets. |
Array louvre blades | |
Profile | Curved. |
Size | 96 x 20 mm.Guidance for specification option: Recommended maximum blade length:
Manufacturer guidanceWidth x height. |
Pitch | 100 mm.Guidance for specification option: Blade incline: Standard 45°. |
Material | Extruded aluminium alloy profile (EN AW-6063 T66). |
Finish | Anodized.Guidance for specification option: Anodized (20 micron) F1. Polyester powder coating, RAL.Guidance for specification option: 60–80 micron; insert requirements. |
Colour | As colour. |
End cap | Aluminium (AlMg3). Steel. Manufacturer guidanceThickness subject to dimensions, weight and local wind load. |
