Soft-Touch Pull Handle (HUKP-0101-26) - Door handle
Verified by manufacturer 1 month ago

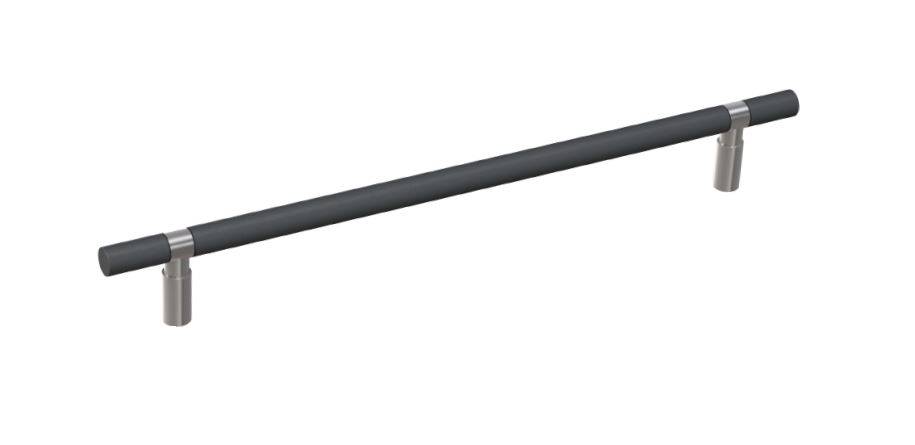

Stainless steel soft-touch pull handle
Application
- To suit doors up to 60 mm thick and glass doors 8-12 mm.
- Consideration for warm and soft touch.
Description
Stainless steel soft-touch pull handle.
Features and benefits:
- Pull handle soft-touch straight design on pillars.
- Dual material: Stainless steel and epoxy resin mid-section.
- Overall lengths standard: 300, 425, 650, 900 and 1000 mm.
- Maximum length 2400 mm, additional pillars required over 1500 mm.
- To suit doors up to 60 mm thick and glass doors 8-12 mm.
General information
Color | Black Grey Silver |
Finish | Satin Guidance for specification option: Stainless steel pillars and stem. Polished Guidance for specification option: Stainless steel pillars and stem. Matt Guidance for specification option: Black soft-touch mid-section. |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | 300 mm 425 mm 650 mm 900 mm 1000 mm Manufacturer guidanceMax length 2400 mm, additional pillars required over 1500 mm. |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/641 Pull handles P21/42 Pull handles |
Product range |
Specification data - Pull handles
Classification grades (minimum) | |
Fire resistance | 0. |
Corrosion resistance | 4. |
Form | Straight bar with stand-off spacers. |
Diameter | 19 mm. |
Distance between centres | 300 mm.425 mm.650 mm.900 mm.1000 mm. |
Material and finish | Epoxy resin finish stainless steel, grade 1.4401 (T316). |
Colour | Satin stainless steel.Guidance for specification option: Pillars and stem. Polished stainless steel.Guidance for specification option: Pillars and stem. Matt black.Guidance for specification option: Soft-touch mid-section. Dark grey (RAL 7021).Guidance for specification option: Soft-touch mid-section. |
Mounting | Bolt through.Back to back.Secret fixing. |
Literature
3. Project - Architectural Lever Handles
