Soffit Trapezoidal Profile & Flat Panel Systems - APL 22/50 & Slimwall™ - Soffit Profiles and Panel System

Verified by manufacturer 4 months ago

Aluminium sheets, AP 22/50-S profile

Architectural Profiles Ltd Variant:

Aluminium and steel soffit profiles and panels.

Jump to:
+44 (0)118 927 2424 Website

Application

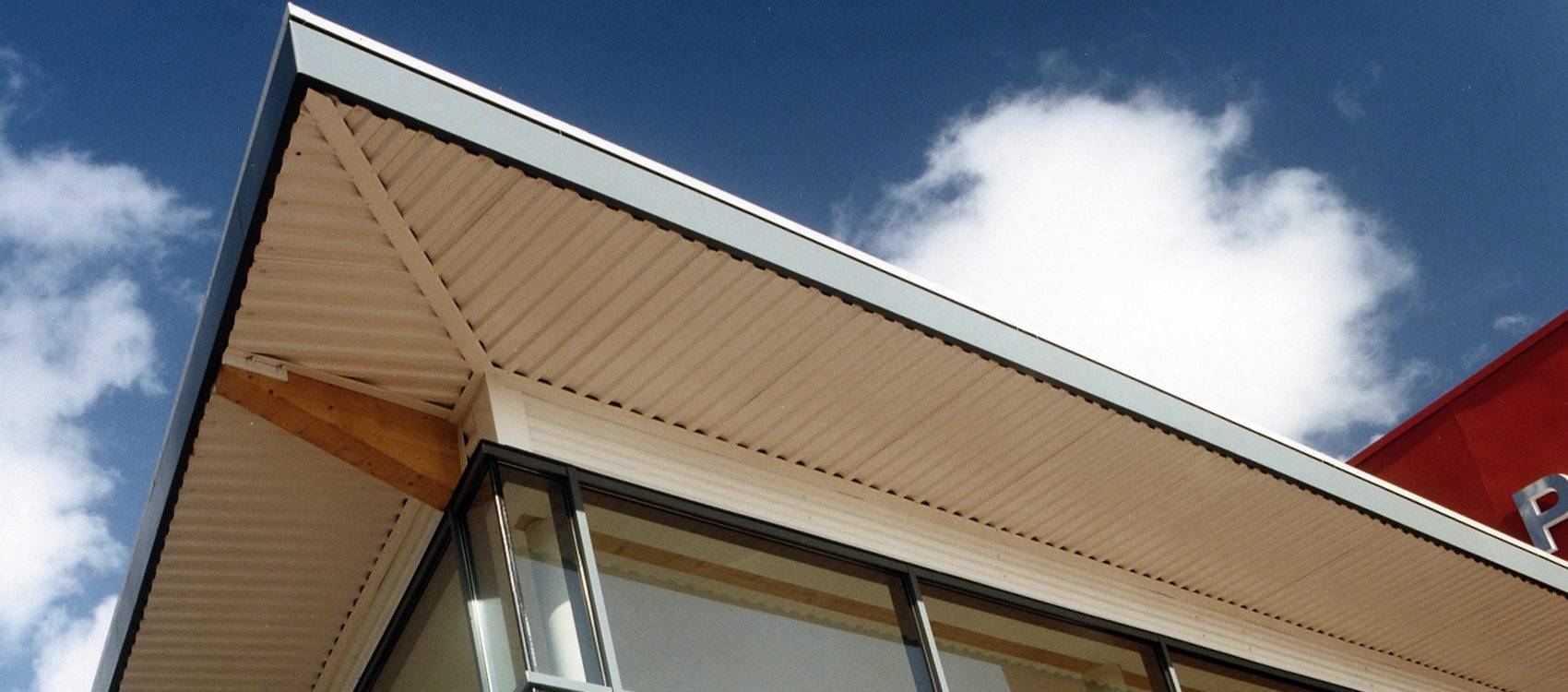

Soffit cladding profiles and panels.

Applications include: Educational and leisure facilities, commercial premises, offices and manufacturing facilities.

Description

Aluminium and steel soffit profiles and panels.


  1. Profile AP22/50S: an economic yet stylish symmetrical profile.

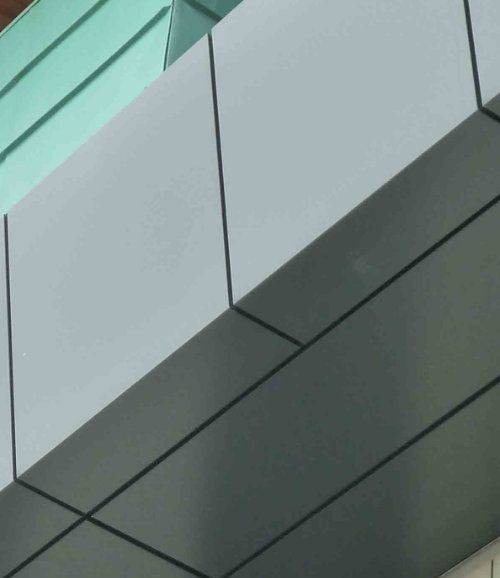

  2. Slimwall™ flat panels: with joints from 3 to 20 mm subject to panel type. Aluminium only.
  • Secret-Fix: Slimwall™ SFP24-S: modules 125 to 300 mm, joint 5 to 20 mm.
  • Secret-Fix: Slimwall SF42-S: modules 200 to 600 mm, joint 10 to 20 mm.
  • Discreet-Fix: Slimwall™ CPS-SSF-S: modules 250 to 1000 mm, joint 20 to 30 mm.


Features and benefits:

  • All system components as non-combustible.
  • Available in aluminium, steel or Cor-Ten with a wide range of finishes and colours available.
  • Available in aluminium, steel or Cor-Ten in a range of finishes:
  • Aluminium: PPC, Armacoil™ HDP, anodized, Stucco-Embossed Mill-Finish (SEMF) and Smooth Mill Finish (MF).
  • Steel: PPC, APL PUF, PRISMA, PPC and LeatherGrain (LG).
  • Cor-Ten: Unweathered.
  • Available with coating warranties up to 40 years including in marine environments.
  • A1 fire-rated coatings available.
  • Available as Airwall - perforated (aluminium only).
  • APL soffits can be integrated into the Tritherm perimeter cantilever overhang system to provide the most attractive and cost effective solutions available.
  • All system components are non-combustible.


System components:

  • Liner sheet (if required).
  • Subframe (dependent on substrate).
  • Profile/panel and flashings.

General information

Color

Silver

Guidance for specification option:

Aluminium or steel.

Other

Guidance for specification option:

Standard and RAL colours available.

Manufacturer guidance

Aluminium/ Steel: Standard APL Range; Bespoke upon request.

Cor-Ten: Unweathered.

Finish

Powder-coated

Guidance for specification option:

Class 1 or Class 2

Full RAL colour range and / or contact

APL for additional finishes such as anodised-look

Anodized

Guidance for specification option:

Contact APL for details

Natural

Guidance for specification option:

Smooth mill-finish aluminium

Unweathered Cor-Ten

Embossed

Guidance for specification option:

Stucco-embossed mill-finish aluminium or Armacoil™ HDP (Subject to minimum quantity)

Painted

Guidance for specification option:

Aluminium with Armacoil™ HDP (Subject to minimum quantity)

Steel with APL PUF, PRISMA or Leathergrain Plastisol

Manufacturer guidance

PPC, Armacoil™ HDP, Anodised, APL PUF, Stucco-Embossed Mill-Finish (SEMF), Smooth Mill Finish (MF). Natural, PRISMA

Material

Aluminium

Steel

Cor-Ten

Shape

Other

Guidance for specification option:

Trapezoidal.

Length

Bespoke

Width

1000 mm

Guidance for specification option:

Cover width, AP22/50 S.

Bespoke

Guidance for specification option:

Slimwall™ - MODULE WIDTHS (Face + Joint)

  • SFP24-S: 125–300 mm;
  • SFP42-S: 200–600 mm;
  • CPS-SSF-S: 250–1000 mm.

Height

20 mm

Guidance for specification option:

AP22/50 S.

24 mm

Guidance for specification option:

SFP24-S.

42 mm

Guidance for specification option:

SFP42-S.

35 mm

Guidance for specification option:

CPS-SSF-S.

Warranty description

25 year

Guidance for specification option:

Cladshield™ fully-installed system warranty available; consult manufacturer for details.

Uniclass

Ss_30_40_65_50 Metal profiled sheet self-supporting roof covering systemsPrimary

CAWS

H31/10 Metal

H31/120 Metal

Specification data - Metal profiled sheet self-supporting roof covering systems

Liner sheets

-

Material

AP19 LPH profile in 0.4 mm steel in off-white 80F - solid.

Primary fasteners

APL P191/HH fixing range.

End and side laps

Minimum 75 mm; APL P191/HH fixing range at one per mid span, APL P103 + P108/VCT side lap sealant range, P152 Flute Fillers.

Air and vapour control layer

-

Material

Cladding rails: AP19 LPH Liner sheet.

SFS/ blockwork substrate/ timber: Other.

Guidance for specification option:

Refer to relevant manufacturer and insert requirements.

Fasteners

Cladding rails: To suit AP19 LPH liner sheet.

Guidance for specification option:

Consult manufacturer for details.

SFS/ blockwork substrate/ timber: Other.

Guidance for specification option:

Refer to relevant manufacturer and insert requirements.

Sealing

Cladding rails: As per liner sheet, side laps sealed with 2x runs of P108/VCT.

Guidance for specification option:

Consult manufacturer for details.

SFS/ blockwork substrate/ timber: Other.

Guidance for specification option:

Refer to relevant manufacturer and insert requirements.

Spacers

Tritherm Spacer System® - Fully-Filled Cavity.

Guidance for specification option:

With cladding rails or SFS/ blockwork:

P546 Isopad, P157 HH Bracket, P600 + P601 Support Zed.

Tritherm Spacer System® - Ventilated Cavity - aluminium sub-frame.

Guidance for specification option:

SFS/ Blockwork/ timber substrate:

546 Isopad, P157-ALU HH Bracket, P759 ALU L-Rail, P760 ALU T-Rail.

Manufacturer guidance

Consult manufacturer for details and insert further requirements if applicable.

Acoustic insulation

A1-rated with thickness and performance specification as required to meet performance.

Guidance for specification option:

Contact manufacturer for details and insert details as required.

Manufacturer guidance

A1-rated, insert thickness as required to meet Acoustic Requirement.

Thermal insulation

A1-rated.

Guidance for specification option:

Insert thickness as required to meet U-value requirement with minimum lambda of 0.040 for all calculation purposes.


Refer to the relevant U-value table in the supporting literature.

Soffit

-

Material

AP22/50S aluminium profiled sheets, solid.

AP22/50S aluminium profiled sheets, perforated (Airwall™).

Manufacturer guidance

0.9 mm thick, trapezoidal profile; cover width: 1000 mm. Consult manufacturer's literature for further details.

Fasteners

Primary/ secondary: APL 191/LP fixing range; colour matched as required.

Jointing

End lap: 125 mm; APL 191/LP fixing range (colour matched as required); side laps stitched at maximum 400 mm centres; APL P109/GGB sealant 6 mm Ø for side laps and end laps; APL P152/HP flute fillers.

Glazing

Required.

Guidance for specification option:

Insert requirements.

Not required.

System accessories

APL system flashings.

APL fixings (P191 & P192).

APL sealants.

P152 profile flute fillers.

Manufacturer guidance

As APL recommendations and to match profiles.

Omit if already covered by soffit details.

Colour/ Finish

Armacoil™ HDP.

Guidance for specification option:

Subject to minimum quantities. Insert colour required.

Anodized.

Guidance for specification option:

Contact APL for details.


Polyester powder-coating, class 1.

Guidance for specification option:

Insert colour/ finish required.


Polyester powder-coating, class 2.

Guidance for specification option:

Insert colour/ finish required.


Stucco-Embossed Mill-Finish (SEMF).

Show more

Manufacturer guidance

Insert colour requirements.

Consult manufacturer for further details as required.

Recycled content (minimum)

Up to 95%.

Liner Supports

Guidance for specification option:

Subject to loadings.

Centres are to general areas only, closer at high load zones.


Purlins at maximum 1800 mm centres in general areas, closer at high load zone/corners.

Profile supports

Guidance for specification option:

Subject to loadings. Centres are to general areas only, closer at high load zones.


To general areas: P665 brackets at maximum 1500 mm centres along each purlin, P030 fixed to every bracket; closer at high load zones/corners.

NominalThickness

-

Manufacturer guidance

Contact APL for details and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

High

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

%

Guidance for specification option:

Subject to substrate (steel or aluminium) and grade of aluminium

Literature

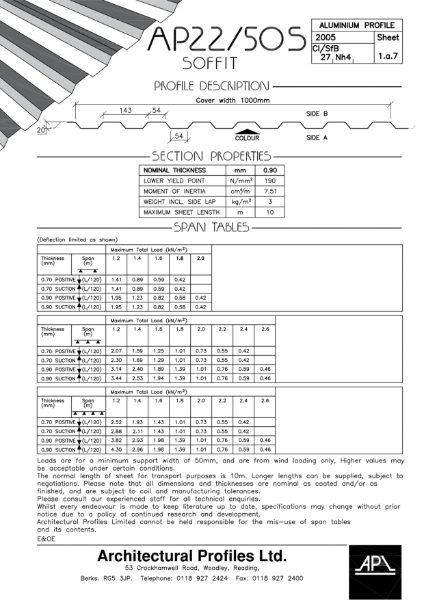

AP22/50S - Aluminium - Soffit Data sheet

AP22/50S - Aluminium - Soffit Data sheet

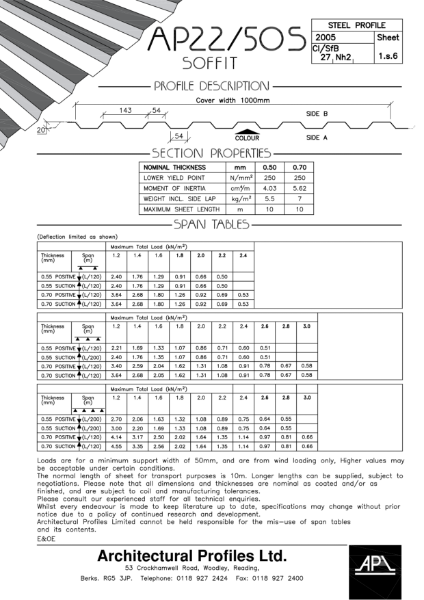

AP22/50S - Steel - Soffit Data sheet

AP22/50S - Steel - Soffit Data sheet

APL Tritherm Spacer System℗ - Aluminium - Data Sheet

APL Tritherm Spacer System℗ - Aluminium - Data Sheet

APL Tritherm Spacer System - Roofing - System Summary

APL Tritherm Spacer System - Roofing - System Summary

APL Tritherm Spacer System℗ - STEEL - Data Sheet

APL Tritherm Spacer System℗ - STEEL - Data Sheet

APL Liner Profiles - Roofing & Cladding - System Summary

APL Liner Profiles - Roofing & Cladding - System Summary

APL Liner Profiles - Roofing & Cladding - Data Sheet

APL Liner Profiles - Roofing & Cladding - Data Sheet

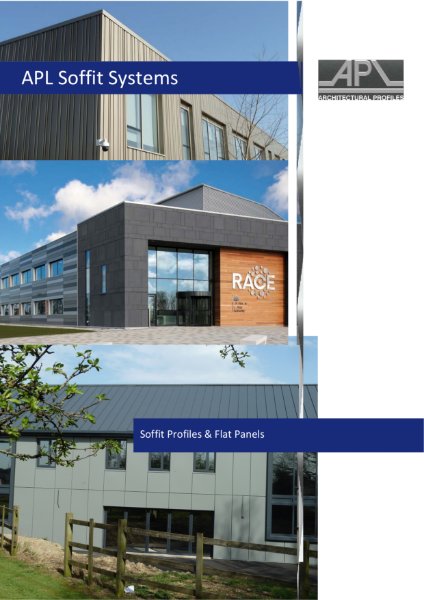

APL Soffit System Brochure

APL Soffit System Brochure

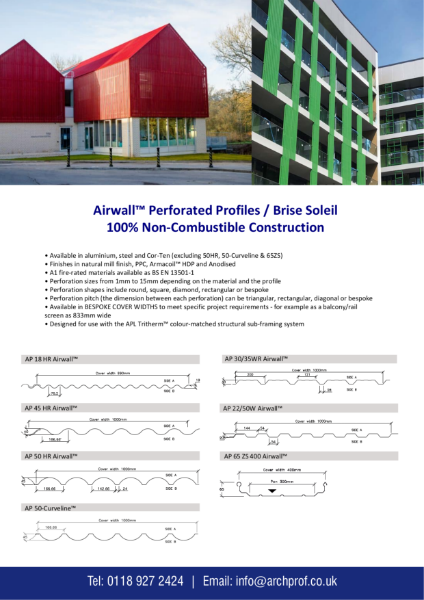

APL Airwall™ - System Summary
