Socket Box Covers

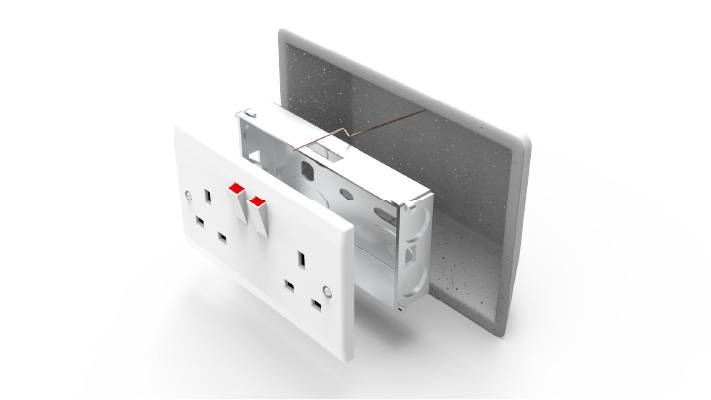

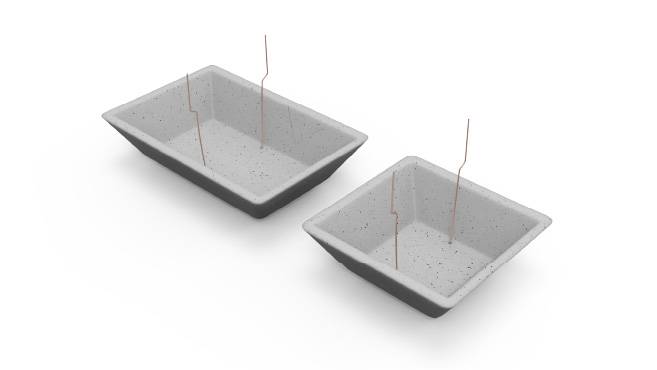

Tenmat’s Socket Box Covers (SBC) are manufactured from halogen free, low smoke, intumescent mineral fibre material and are designed to reinstate the fire performance of partition (stud) wall constructions when penetrated by steel or plastic electrical socket back boxes. The cover will also provide resistance to the passage of sound and air movement.

In the event of a fire the Socket Box Covers (SBC) intumescent material will expand to enclose the electrical back box and cables, providing effective fire resistance, for integrity and insulation for 60 or 120 minutes depending upon the partition (stud) wall

construction

Features and benefits:

• BS 476 fire tested for 120 minutes.
• EN 1366-3 tested to EI60 minutes for use with European style single sockets only.
• Tested for minimal acoustic noise transfer or air movement.
• Suitable and tested with plastic back boxes, also suitable for steel back boxes.
• Available for single and double sockets.
• Pre-formed for easy installation – can be installed in seconds.
• No maintenance – SBC should not move or become damaged if the socket is replaced, if fitted correctly.
• Mess free installation – no need for adhesives, screws or drilling.
• Can be retrofitted – also works when fitted back to back in uninsulated walls.
