SN93-SL3-140 Stair nosing anti-slip - Anti-Slip Stair Nosings

Verified by manufacturer 14 days ago

SN93-SL3-140 - Aluminium

AATi (Antislip Antiwear Treads International) Variant:
Third party certifications:
  • London Underground

    London Underground

    Certificate type

Anti-slip stair nosing. Cast metal.

Jump to:
+44 (0)1376 346278 Website

Application

  • Rail and light rail.
  • Underground rail.
  • Network Rail AFA Footbridges
  • Transport terminals.
  • DDA products.
  • Deep tube approved.
  • Stair nosing (high or low footfall).

Description

SN93/SL3/140® - Sightline™ is a cast metal anti-slip stair nosing with silicon carbide granules cast into the metal matrix of the wearing surface. The front edge is defined by coloured abrasive inserts and a continuous coloured line along the riser face. Sightline™ is suitable for heavily used public stairways requiring high performance, extended life stair nosings.


Features and benefits:

  • Complies with the spirit of BS 8300 and Building Regulations Document M and K.
  • London Underground Approved.
  • Cost-effective, long-term installation.
  • High performance in wet and dry conditions.

General information

Color

Beige

Guidance for specification option:

Nickel Bronze.

Copper

Guidance for specification option:

Gunmetal.

Silver

Guidance for specification option:

Aluminium.

Finish

Natural

Material

Aluminium

Gunmetal

Nickel bronze

Shape

Rectangle

Length

Bespoke

Width

140 mm

Height

55 mm

Warranty description

25 year

Uniclass

Pr_35_90_31_74 Rigid stair nosingsPrimary

CAWS

L30/590 Applied stair nosings

Specification data - Rigid stair nosings

Profile

Square.

Base section

-

Material

Aluminium.

Finish

Silver.

Size

-

Rise x going

55 x 140 mm.

Gauge

9 mm.

Inserts

-

Material

Cast metal with silicon carbide granules.

Colour

-

Manufacturer guidance

Insert requirements. Black as standard, but other colours within the RAL and the NCS ranges are available.

Length

Guidance for specification option:

Stair nosings can be produced to suit any stair width. Individual profiles can be made up to 1900 mm in cast aluminium, nickel bronze and gunmetal. Longer lengths will be provided in multiple sections. Insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Third party certifications

London Underground

London Underground

AATi certificate for product ref SN93 SL3 140

Literature

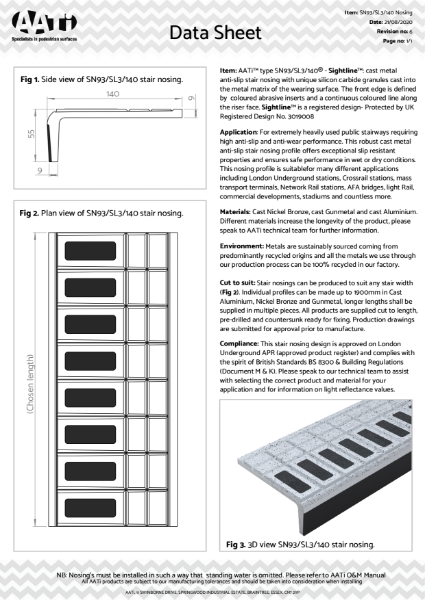

SN93-SL3-140 Data Sheet

SN93-SL3-140 Data Sheet

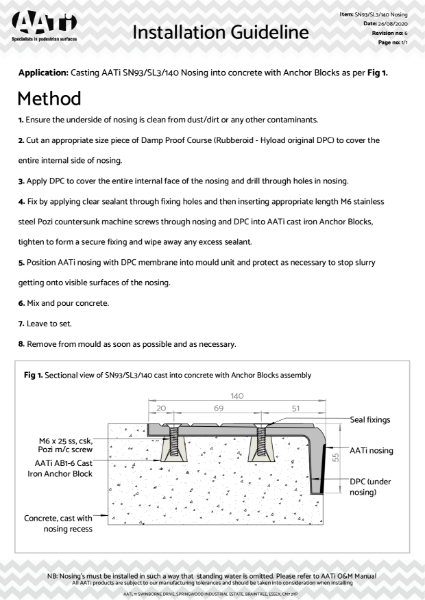

installation_guideline_sn93_SL3_140_concrete_castin_anchorblock Rev.6

installation_guideline_sn93_SL3_140_concrete_castin_anchorblock Rev.6

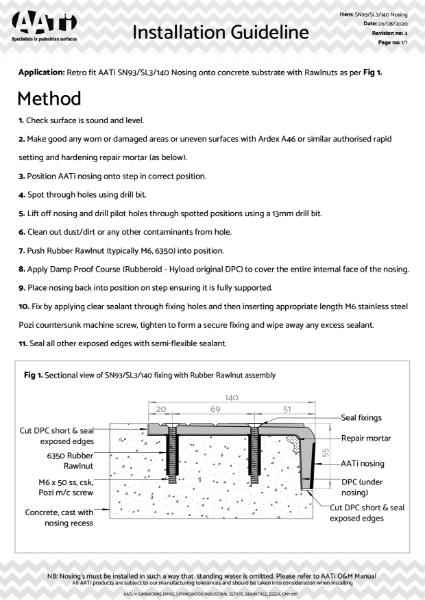

installation_guideline_sn93_sl3_140_concrete_rawlnut_m6cskmachine Rev.4

installation_guideline_sn93_sl3_140_concrete_rawlnut_m6cskmachine Rev.4

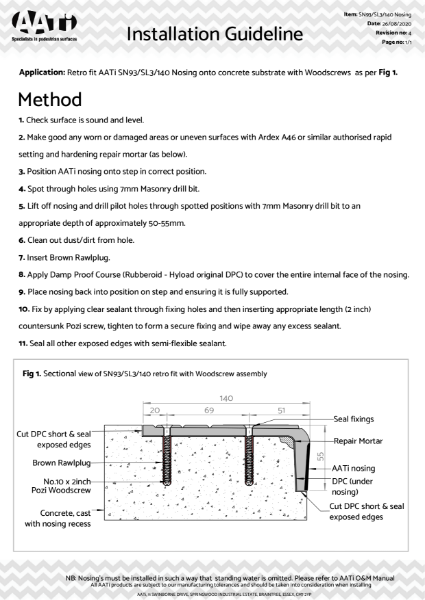

installation_guideline_sn93_sl3_140_concrete_retro_woodscrew Rev.4

installation_guideline_sn93_sl3_140_concrete_retro_woodscrew Rev.4

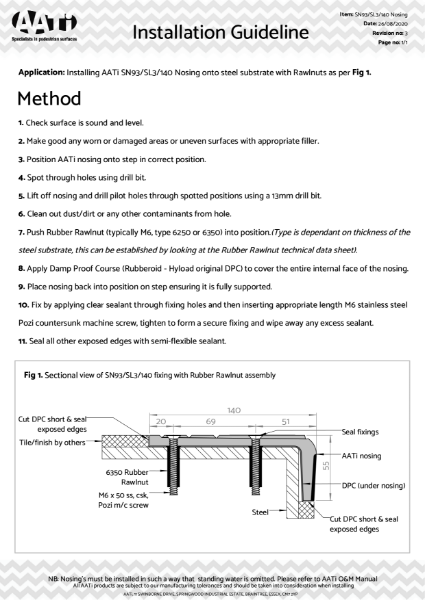

installation_guideline_sn93_sl3_140_steel_rawlnut_m6machine Rev.3

installation_guideline_sn93_sl3_140_steel_rawlnut_m6machine Rev.3

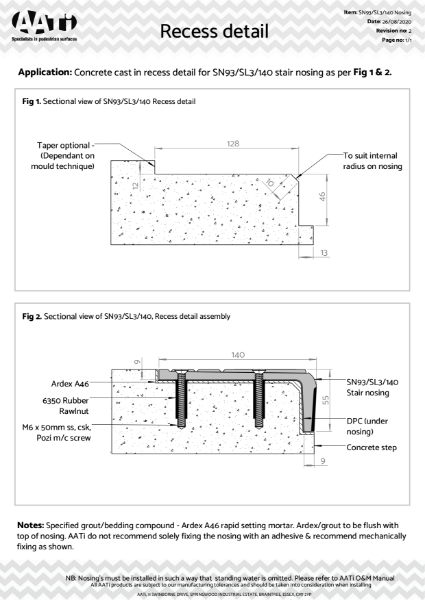

recess_detail_sn93_sl3_140_concrete Rev.2

recess_detail_sn93_sl3_140_concrete Rev.2

Case studies

Stratford Station

Stratford Station

King's Cross St. Pancras

King's Cross St. Pancras

Moorgate Station

Moorgate Station

Liverpool Street Station

Liverpool Street Station

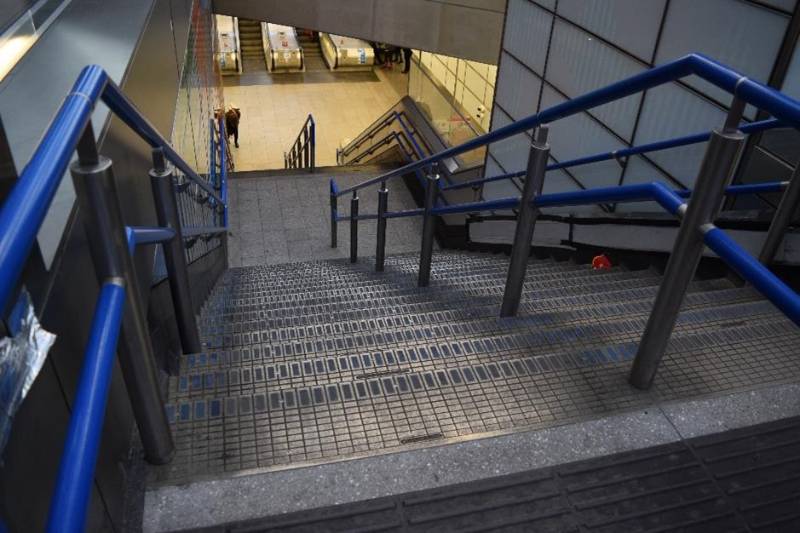

Tottenham Court Road Station

Tottenham Court Road Station

Crossrail outer west stations: West Ealing, Ealing Broadway & Acton Mainline

Crossrail outer west stations: West Ealing, Ealing Broadway & Acton Mainline

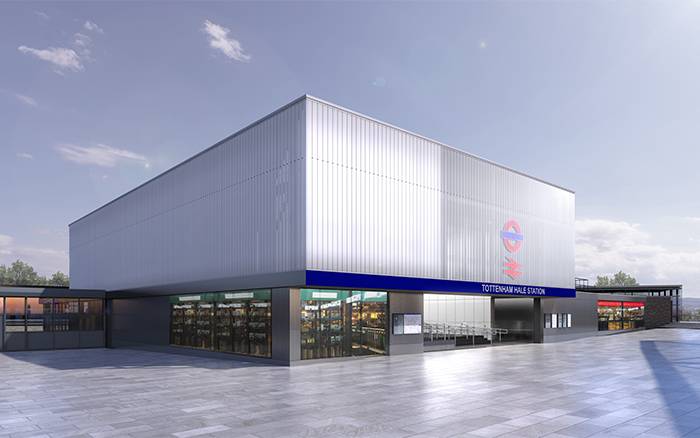

Tottenham Hale Station

Tottenham Hale Station
