Smokemaster SM-ST fixed smoke curtain
Description

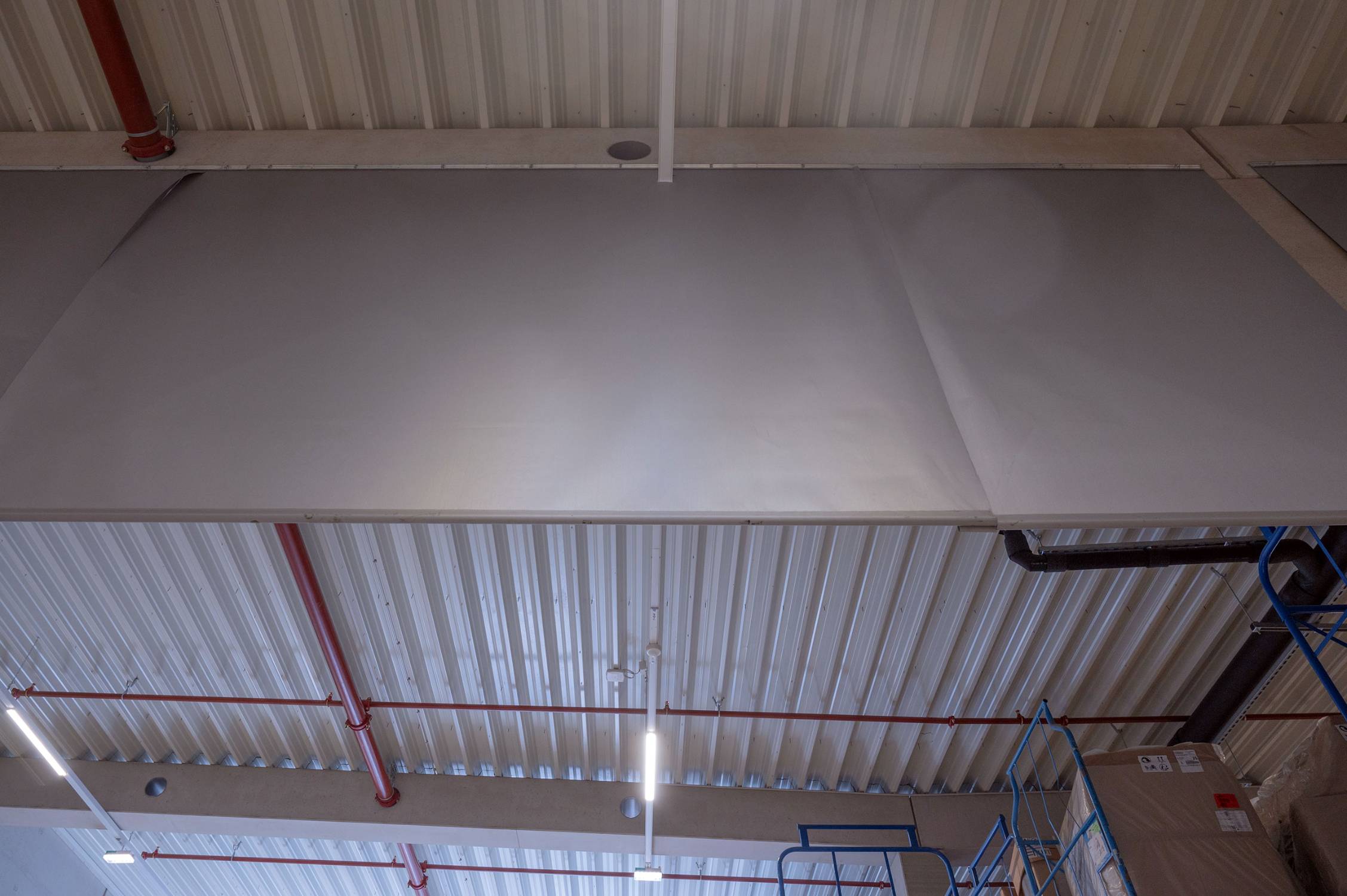

The Smokemaster SM-ST fixed smoke curtain prevents the movement of smoke and heat from one area to another in a fire by channelling or containing the smoke and heat. It conforms to BS EN 12101-1 and has a D120 rating. It is designed to withstand hot air and smoke at temperatures up to 600ºC for up to 120 minutes once only and consists of a fabric material which is held within a series of angle pieces. At the bottom of the cloth there is a weight which ensures that the curtain remains taut and reduces the amount of deflection through air currents. It can provide protection for most kinds of industrial and commercial buildings.

Features and benefits:

  • High performance - Designed to withstand hot air and smoke at temperatures up to 600⁰C for up to 120 minutes once only.
  • Certified performance - The complete product has been successfully tested and certified to EN 12101-1 in accredited third party test laboratories and is CE marked. It achieves a rating of D120. The fabric has been tested to EN 13501-1.

General information
Specification data - Coated woven glass fibre cloth flexible cavity barriers

Product Reference

Smokemaster SM-ST fixed smoke curtain

Size

-

Length

Insert requirement, available from 1500 mm to an unlimited length.

Drop

Insert requirement, available 500–8000 mm.

Standard product features

Fabric:

D120 rating, controlling smoke at 600°C for up to 120 minutes once only. Fire resistance class A2-s1,d0 to BS EN 13501-1.

Literature
Third party certifications
  • MPA Stuttgart: Certificate of conformity to EN12101-1 : The curtain will withstand a temperature of up to 600°C for 120 minutes and therefore achieves a D120 rating. Smokemaster SM5 is also fabric tested to EN 13501-1. Certificate of Conformity number 0672-CPD-0146
  • TÜV Rheinland: Manufactured to ISO 9001:2008. 01 100 67156
