Application

Suitable for use in both commercial and residential applications in modern buildings of all types.

Description

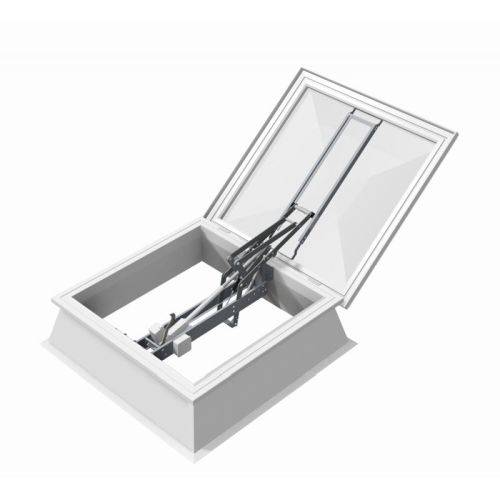

Polycarbonate automatic opening vent (AOV) for installation to flat roofs.

Features and benefits:

  • Provides smoke and heat exhaust ventilation and day-to-day ventilation for all commercial and residential applications.
  • The 24 V electrical actuator opens up to 165° in <60 seconds and has an IP54 rating.
  • High quality.
  • Helps to maximize the amount of natural light in building interiors.
  • Complies with the Building Regulations with regards to fire safety.
  • Can be integrated into various types of building management system, and links to a central control panel.
  • Only requires one mechanism, regardless of size.
  • Will help to block noise levels from outside.
  • Can withstand snow loads of 2400 N/m² and wind loads of 1500 N/m².
  • Includes a battery back-up system in case of mains power failure.
  • Good waterproofing properties - water penetration is virtually impossible.
  • Aerodynamic areas of up to 2.74 m² available.
  • Can be used to provide roof access.
  • CE marked, and manufactured in accordance with EN 12101-2.
  • Ten-year inclusive warranty.

Applications:

Suitable for use in both commercial and residential applications in modern buildings of all types.

General information
Size

1000 x 1500 mm

1200 x 1200 mm

1200 x 1500 mm

1200 x 1800 mm

1200 x 2100 mm

1200 x 2400 mm

1200 x 2500 mm

1250 x 1250 mm

1250 x 1500 mm

1500 x 1800 mm

1500 x 2100 mm

1500 x 2400 mm

1500 x 2500 mm

Uniclass 2015
Natural smoke and heat exhaust ventilators (Pr_70_65_04_56)Primary
Specification data - Natural smoke and heat exhaust ventilators
Product Reference

Smoke Vent - Coxdome Firejet AOV

Size

1000 x 1500 mm

1200 x 1200 mm

1200 x 1500 mm

1200 x 1800 mm

1200 x 2100 mm

1200 x 2400 mm

1200 x 2500 mm

1250 x 1250 mm

1250 x 1500 mm

1500 x 1800 mm

1500 x 2100 mm

1500 x 2400 mm

1500 x 2500 mm

Cover -
CoverMaterial

Glazed polycarbonate

Solid insulated aluminium

Type

Not required

For solid insulated aluminium cover.

Double skin

For glazed polycarbonate.

Triple skin

For glazed polycarbonate.

Colour/ Finish

Not required

For solid insulated aluminium cover.

Clear

For glazed polycarbonate. High visibility, and maximum light transmission.

Diffused

For glazed polycarbonate.

Upstand

300 mm, splayed unplasticized polyvinyl chloride (PVC-U)

300 mm, splayed metal

400 mm, splayed metal

500 mm, splayed metal

Accessories/ Other requirements

Not required

Control panel system

Available in 'basic' (singular) and 'comfort' (double) options.

Daily ventilation switch

Fire switch

Will open the smoke vent and activate the alarm.

Fireman's priority switch

Will open/ close the smoke vent without influencing the alarm.

Smoke detector

Allows early fire detection with a visual release display.

Wind deflector

Standard product features

Reaction to fire:

Class E.

Product Options

Accessories/ Other requirements:

- Control panel system:

Can be triggered from either manual override switches local to the ventilator and the ground floor, by dedicated smoke detectors, or by interfacing with a third-party smoke detection/ fire alarm system.
