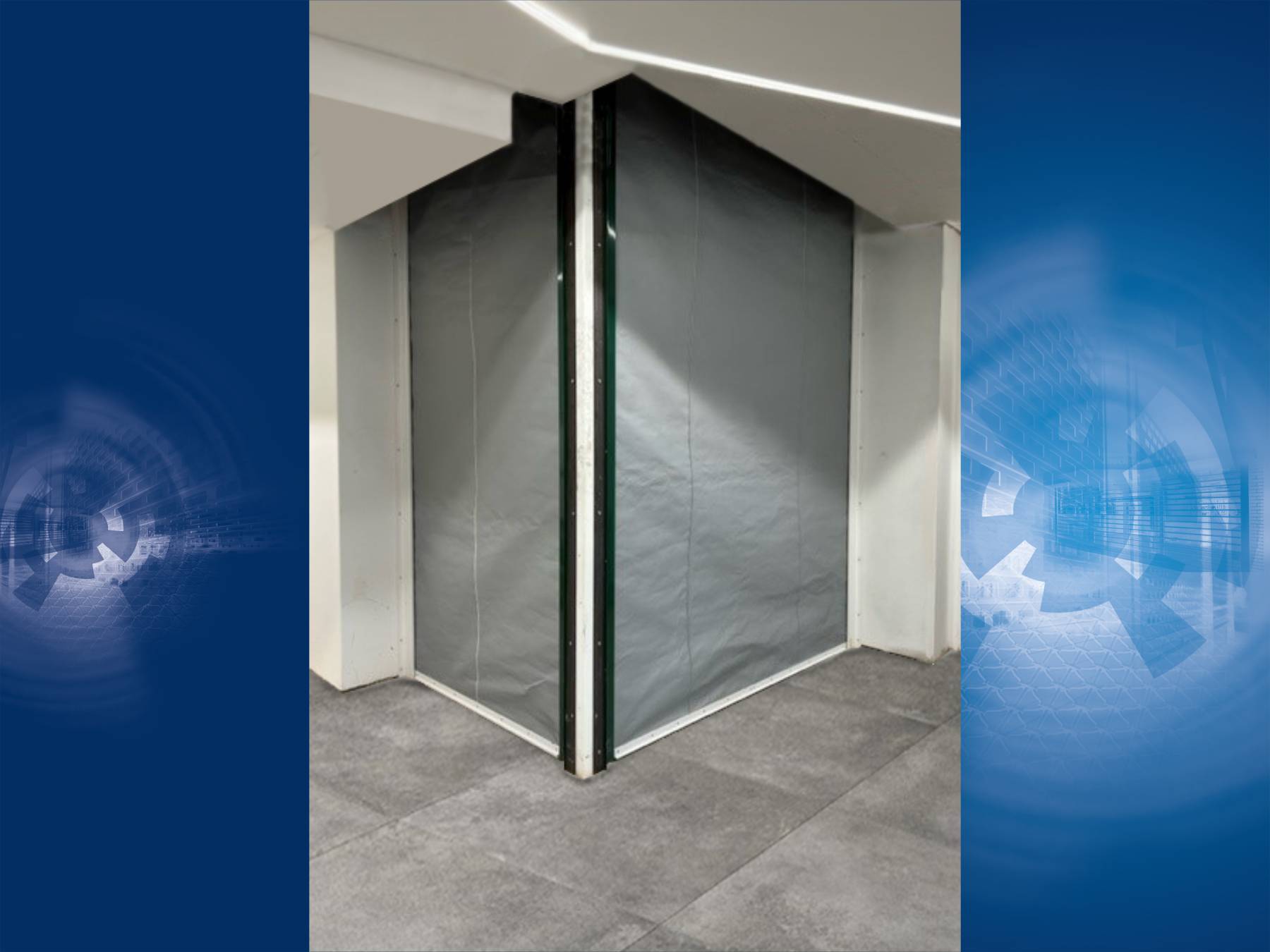

A smoke and fire curtain -Integrity (E) 180 min and (W) 30 mins Irradiance. Tested & certified to BS 8524-1.
This protection system is designed to provide safe evacuation routes in proximity to the fire curtain and protection for close contact.
Features and benefits:
Color | Grey Silver |
Finish | Powder-coated |
Material | Steel Fabric |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Standards | |
Barrier assemblies | To BS 8524-1. |
Test standards | Vertical, horizontal and angled to BS EN 1634-1. |
Third-party certification | Certifire. |
Size | Manufacturer guidanceInsert requirements or refer to a drawing. |
Performance | |
Smoke containment | Smoke sealed to BS 1634-3. |
Fire resistance | E180/EW30. |
Barrier units | Single. |
Deployment | Full.Split.Delayed. |
Activation | Fire alarm signal.Manufacturer guidanceThe system is held in the open position by a single-phase electric 24 V d.c. motor. When a fire is detected, or power is lost, the motor will disengage and allow the gravity failsafe to activate. |
Accessories | None.Audio/visual warning devices.Emergency retract switches.Beam sensors. |
Colour/ Finish | Manufacturer guidanceChoice of standard powder-coat finishes to headbox, side guides and bottom bar. Insert requirements. |
Fixing | Faced-fixed. Reveal-fixed. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 kg CO₂ eq/unit |
Recyclability | Yes Manufacturer guidance90% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 15 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
- | 1 |
