Compare

SMET LiteFlo® Lightweight Flowing Screed

Name: SMET LiteFlo® Lightweight Flowing Screed
Brand: SMET Building Products Ltd
SKU: seUHoxFMWsmyZLVxRQLXRa

Verified by manufacturer 16 hours ago

SMET Building Products Ltd

A pumpable, superior-quality Alpha Hemihydrate screed, based on calcium sulphate and selected lightweight aggregates.

Jump to:

BOS

+44 (0)28 3026 6833 Website

Application

LiteFlo® is suitable for floors in homes, offices, public buildings, and places exposed to similar loads.

LiteFlo® may be applied as a levelling screed directly onto a load-bearing floor, unbonded on a separating barrier (polyethene), as a floating floor and can be used in conjunction with underfloor heating or cavity floors. However, when using LiteFlo® in combination with underfloor heating, it should be noted that LiteFlo® has a low thermal conductivity.

LiteFlo® should be covered with a floor finish such as tiles, linoleum, parquet, cork, or carpet. If a cement-based adhesive or smoothing compound is required, the surface of the screed must first be sealed, using an appropriate acrylic primer/sealer.

SMET LiteFlo^® is supplied to sites in convenient 27 kg pre-mixed bags or in bulk site silos.

Check out SMET lightweight screed, lightweight flooring systems, and aggregates (void fillers) suitable for any building project.

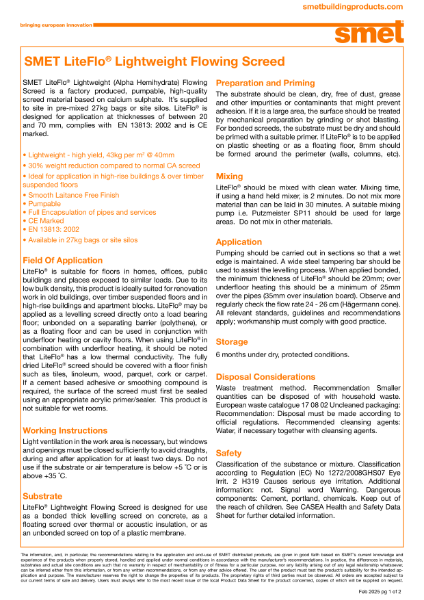

Description

A factory-produced, pumpable, high-quality screed material based on calcium sulphate. It’s supplied to site in pre-mixed 27 kg bags or site silos. LiteFlo® is designed for application at thicknesses of between 20 and 70 mm, complies with EN 13813: 2002 and is CE marked.

Features and benefits:

Lightweight - high yield, 43 kg per m² @ 40 mm.
30% weight reduction compared to normal CA screed.

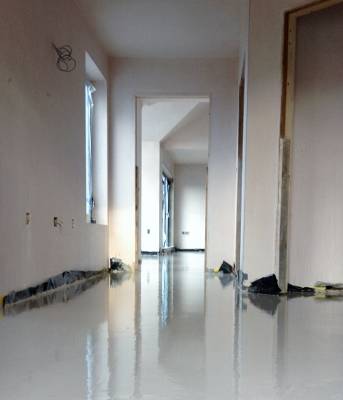

Smooth laitance-free finish.
Pumpable.
Full encapsulation of pipes and services.
Yield: 1.08 kg/mm/m².
CE Marked.
EN 13813: 2002.
Absolutely ideal for application in high-rise buildings.
For application at thicknesses of between 20 and 90 mm.
Perfectly level floors.
Installed nationwide by Smet Supported Partners.
Pumpable – first of its kind available.
Installed nationwide by Smet Supported Partners.
Sustainable – as this calcium Sulphate binder naturally embodies less carbon than a cement-based binder.
German-made.

General information

Finish	Smooth
Material	Calcium sulphate

Uniclass	Pr_35_31_06_71 Ready-mixed levelling and wearing screedsPrimary Pr_35_31_06_47 Lightweight aggregate levelling screed mixes
CAWS	M10/150 Proprietary lightweight aggregate levelling screeds M13/120 Proprietary self smoothing levelling screeds

Product range	Floor Screeds

Specification data - Ready-mixed levelling and wearing screeds

Classification data
Product reference	SMET LiteFlo® Lightweight Flowing Screed.
Standard	To BS EN 13813.
Binder type	Calcium sulfate.
Compressive strength	C20. Guidance for specification option: ≥20.0 N/mm². Manufacturer guidance At 28 days.
Flexural strength	F4. Guidance for specification option: ≥4.0 N/mm². Manufacturer guidance At 28 days.
Tensile Adhesion	>1.5 N/mm².
Shrinkage	<0.1%. Manufacturer guidance (28 days)
WaterContent	8–9 L per 27 kg bag. Manufacturer guidance Recommended.
Reaction to fire	A1, Non-combustible.
Thermal conductivity (maximum)	<0.40 W/mK.
Density	Fresh (wet) density: 1500 kg/m³; Hardened dry density: 1300 kg/m³. Guidance for specification option: Fresh (wet) density: 1,500 kg/m³. Hardened dry density: 1,300 kg/m³.
pH value	>7.0.
Thickness	Maximum Thickness: 70 mm. Minimum Thickness: Bonded: 20 mm. Unbonded: 30 mm. Domestic: 35 mm. Commercial: 40 mm. Over Underfloor heating Pipes: 25 mm (BS 8204-7).

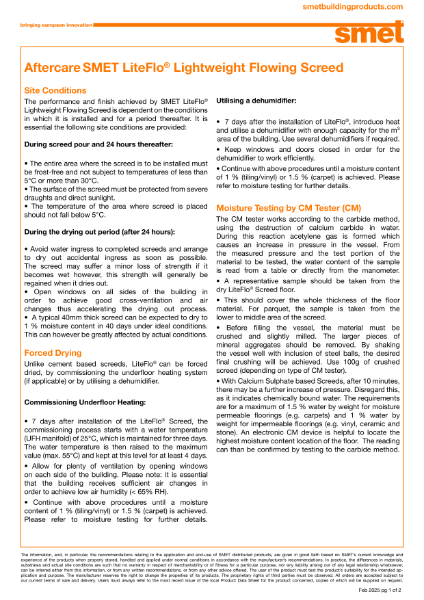

Drying time	Hardening Times (Light foot traffic): After approx.12 hours; can be partially loaded after approx. 7 days. Hardening Time: Final Covering: approx. 2–6 weeks dependent on thickness and drying conditions on-site.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Manufacturing plant location	99 Ellrich, Germany
Material	Calcium sulphate
