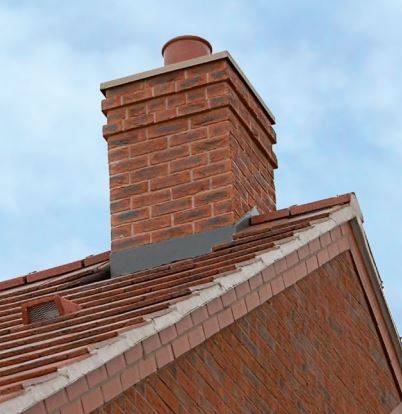

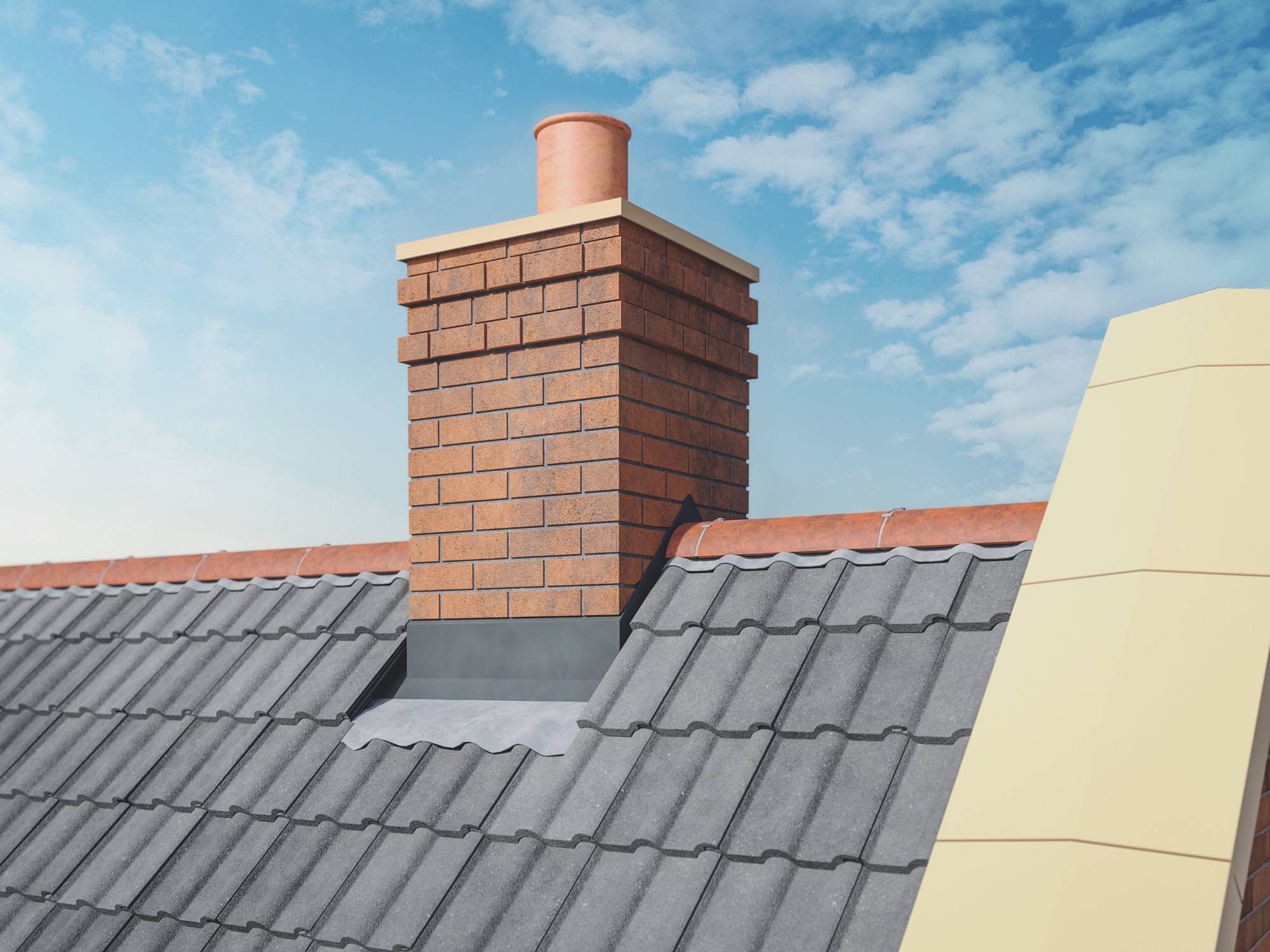

SmartStack GRP Brick Effect Chimney
Compare variants

SmartStack GRP Brick Effect Chimney

Reproduction facing brick

Stormking Plastics Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

GRP brick-effect chimney.

Jump to:
+44 (0)1827 311100 www.stormking.co.uk

Application

Suitable for use on pitched slated or tiled roofs with a minimum pitch of 30 degrees, either at the ridge or on the slope of the roof, in new constructions.

Description

SmartStack GRP Chimney consists of a GRP chimney stack including a base plinth, flaunching with ventilation, chimney pot, side gutters, expanding foam strip and lead apron flashing, for use on roof ridges and slopes. The chimney is available in one and two pot versions, and in three brick colours (buff, standard red and burnt red) and two render colours (white and cream). The brick and render colours can be colour-matched to the bricks/render of the building.


The chimney core, base plinth, flaunching and chimney pot(s) are moulded from GRP and bonded with GRP laminates. The internal structural framework, fittings and ventilation strips are then installed within the chimney, cut and bonded to the chimney core. The lead apron flashings are fitted, and expanding foam strip is fixed to the predrilled gutter flanges. Finally, the lifting eye is installed and the GRP pot(s), with an internal screwed fixing adaptor, is packed loose with the chimney.


Smartstack is an all in one solution that cuts the cost of labour and materials.


Features and benefits:

  • No maintenance costs.
  • No leaks, BBA certified.
  • No brick supply or cutting.
  • Anti-condensation, positive ventilation.
  • Intricate GRP brick replicas to match your street scene.
  • All flashings and lead apron incorporated into SmartStack.
  • Excellent drainage via concealed channel.
  • Lightweight, no additional loading to roof structure.
  • Consistently perfect aesthetics.
  • Service life in excess of 25 years.

General information

Shape

A range of shapes are available. Please contact manufacturer with specific design related questions/enquiries.

Square

Rectangle

Other

Bespoke plinth shapes are available; contact manufacturer for details.

Color

Yellow

Buff.

Red

Red or burnt red.

Other

Bespoke colour matching.

White

Cream

Finish

Brick

GRP Brick Effect SmartStack

Render

GRP Render Effect SmartStack

Material

GRP

Glass reinforced plastic.

WarrantyDescription

Two year

From delivery.

Size

665 x 665 mm

Uniclass

Pr_70_65_30_14 Clay chimney potsPrimary

CAWS

F30/96 Chimney pots

F30/940 Chimney pots

Specification data - Clay chimney pots Enhanced data

Style

Ridge cut.

Rafter cut.

Colour

Buff.

Brick colour.

Red.

Brick colour.

Burnt red.

Brick colour.

Cross section

-

Base

Square.

General

Square.

Top

Circular.

Single pot.

Size

-

Base (internal)

665 x 665 mm.

Height

376 mm.

Single pot height.

Design

Single pot.

Surface finish

Reproduction facing brick.

Attached flashing

Lead apron flashing.

Gutter

Side gutter.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
Revit
-

1

1

Download now from NBS National BIM Library

Literature

Stormking SmartStack Product Brochure

Stormking SmartStack Product Brochure

Stormking Installation Guide - SmartStack Chimney

Stormking Installation Guide - SmartStack Chimney

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Stormking Chimneys, SmartStack GRP Chimney - British Board of Agrément Certification
