SMARTPLY STRONGDECK - OSB Load Bearing Panel

Name: SMARTPLY STRONGDECK - OSB Load Bearing Panel
Brand: MEDITE SMARTPLY
SKU: 8Qhw6bZNkQZ22M3FsMXVPn

Verified by manufacturer 3 months ago

MEDITE SMARTPLY

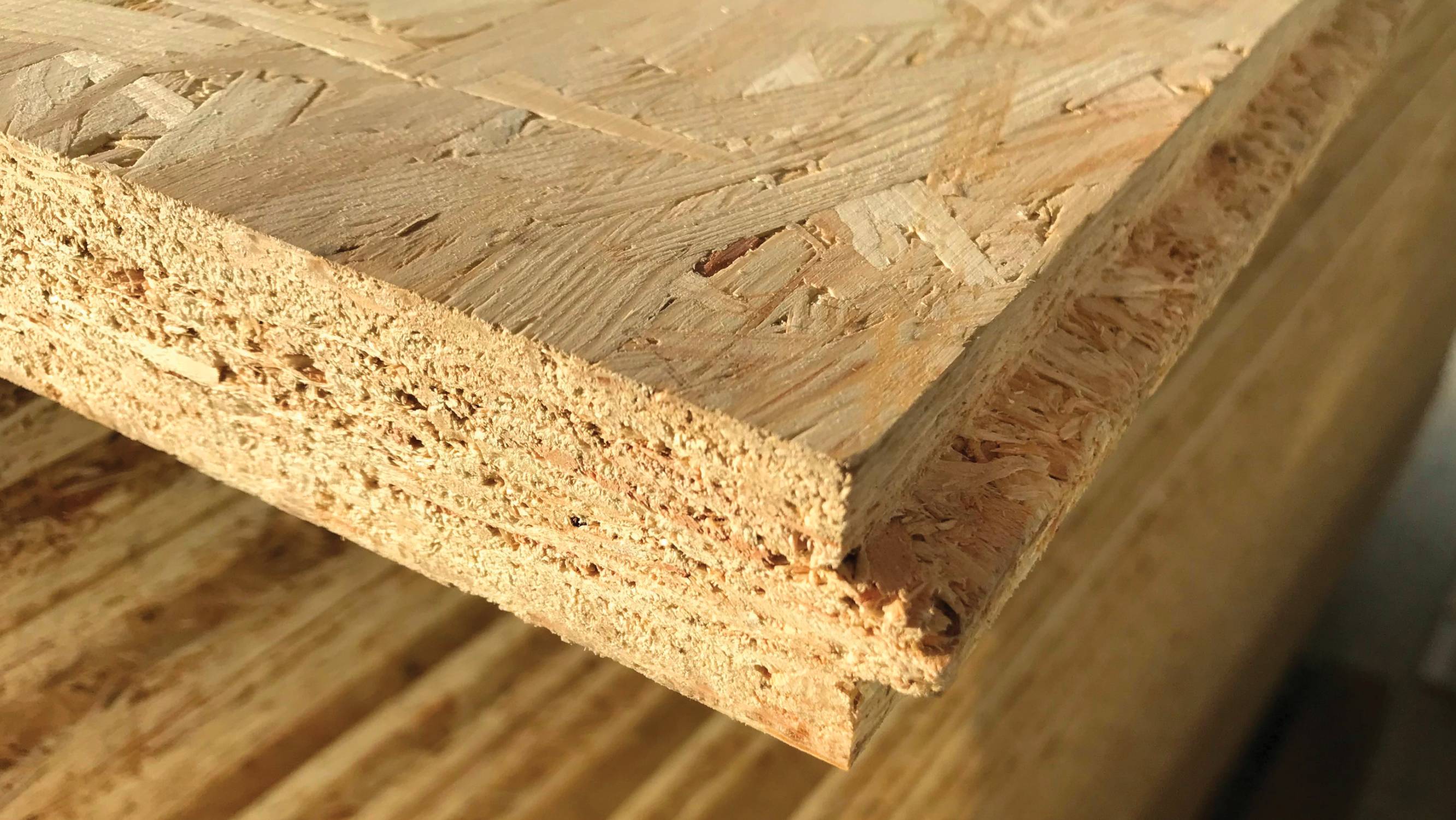

High-performance, engineered, load-bearing 30mm OSB/4 panel.

Jump to:

BOS

+44 (0)1322 424900 Website

Application

Industrial and commercial flooring.
Volumetric 3D modular builds.
Storage platforms.
Heavy-duty load bearing environments.
Space saving racking.
Heavy-duty shelving.
Online retail e.g. garment/ package handling in multi-tier warehousing.
Industrial warehousing and storage unit floor space additions.
Humid environments.

Description

High-performance, engineered, strong and durable 30 mm oriented strand board (OSB) panel designed for use in humid conditions and suitable for the most demanding, heavy duty structural applications. Manufactured using advanced ContiRoll® resin technology, consisting of moisture resistant and formaldehyde-free bonding of wood strands, precisions strand orientation and continuous pressing.

Features and benefits:

Durable, moisture-resistant mezzanine flooring.
Stronger and more durable than chipboard alternatives.
Reduced thickness swell, due to extra resin penetration.
More durable that P5 alternatives.
Suitable for use in Service Class 2 conditions.
Lighter than P5/ P6 alternatives, despite a larger surface area per panel.
Quicker to install due to larger panel size.
No added formaldehyde contributing to BREEAM credits and LEED points.
Manufactured from FSC® certified timber.
CE and UKCA marked and manufactured in accordance with EN 300.

General information

Material	Oriented strand board (OSB)
Length	2400 mm
Width	675 mm

Uniclass	Pr_25_71_97_58 Oriented strand boards (OSBs)Primary
CAWS	K11/235 Oriented strand board floating floor K11/335 Oriented strand board flooring K11/35 Oriented strand board flooring K11/435 Oriented strand board wall sheathing K11/535 Oriented strand board roof decking K11/635 Oriented strand board sarking K11/795 Wall lining on metal framing N10/10 Purpose-made N10/110 Purpose-made

Product range	SMARTPLY OSB range

Specification data - Oriented strand boards (OSBs)

Classification data
Standards	To EN 13986.
Grade	To BS EN 300, type OSB/4.
Reaction to fire classification	-
Flooring	To BS EN 13501-1, Class Dfl-s1.
Non-flooring applications	To BS EN 13501-1, Class D-s2, d0.
Thickness	30 mm.
Edges	Tongued and grooved long edges.
Thermal Conductivity:	0.13 W/m∙K. Manufacturer guidance To BS EN 13986
Density	600 kg/m³. Manufacturer guidance To EN 323
BendingStrength	24 N/mm² / 13 N/mm². Guidance for specification option: Major axis / Minor axis Manufacturer guidance To EN 310
Bond strength	0.35 N/mm². Manufacturer guidance to EN 319
ThicknessSwelling	≤12%. Guidance for specification option: After 24 hours Manufacturer guidance to EN 317
Formaldehyde emissions	≤8.0 (E1) mg/ 100g. Manufacturer guidance to EN 120
Class	To BS EN 622-1, Class E1. Manufacturer guidance Formaldehyde class.
