SMARTPLY MAX

SMARTPLY MAX

MEDITE SMARTPLY Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • FSC

    FSC

    Certificate type

  • EMS ISO 14001

    EMS ISO 14001

    Certificate type

  • QMS ISO 9001

    QMS ISO 9001

    Certificate type

  • Environmental Product Declaration (EPD) – IGBC

    Environmental Product Declaration (EPD) – IGBC

    Certificate type

Engineered, load-bearing OSB/3 panel for use in humid conditions.

Jump to:
+44 (0)1322 424900 www.mdfosb.com

Application

Suitable for wall sheathing, flooring and roofing applications.

Description

Highly engineered, moisture resistant load-bearing panel designed for use in humid conditions and is ideal for many structural and non-structural applications in both internal and protected external environments. Manufactured in accordance with BS EN 300 performance standard, it is the perfect choice for roofing, flooring, wall sheathing, site hoarding and many other applications where strength and moisture resistance are paramount.


Features and benefits:

  • Durable, versatile, sustainable.
  • Load bearing.
  • Multiple applications.
  • Can contribute towards LEED and BREEAM green building methodologies.

General information

Shape

Rectangle

Size

SMARTPLY MAX is available in a variety of sizes, with other sizes available on request (minimum order quantity may apply).

-

Length

2440 mm

2397 mm

Width

1220 mm

1197 mm

Uniclass

Pr_25_71_97_58 Oriented strand boardsPrimary

CAWS

K11/235 Oriented strand board floating floor

K11/335 Oriented strand board flooring

K11/35 Oriented strand board flooring

K11/435 Oriented strand board wall sheathing

K11/535 Oriented strand board roof decking

K11/635 Oriented strand board sarking

K11/795 Wall lining on metal framing

N10/10 Purpose-made

N10/110 Purpose-made

Product range

SMARTPLY OSB range

Specification data - Oriented strand boards Enhanced data

Reaction to fire classification

-

Excluding flooring

To BS 476-7: Class 3.

Thickness

A range of thicknesses are available specific to the panel size, consult literature for details.

9 mm.

10 mm.

11 mm.

12 mm.

12.5 mm.

15 mm.

18 mm.

20 mm.

22 mm.

24 mm.

Edges

  • SE – Square edge applicable to all thicknesses.
  • T&G4 – Tongue and groove profile on all four edges, available on 2400 x 600 and 2440 x 1197 mm.

Square.

Size (l x w)

2440 x 1220 mm.

ThermalConductivity

To BS EN 13986, 0.13 W/m·K.

Sound absorption coefficient

To BS EN 13986, Frequency range 250–500 Hz: 0.10; Frequency range 1000–2000 Hz: 0.25.

Environmental information

Contains Red List materials

No

Country of material origin

Ireland

Country of product manufacture

Ireland

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.0
IFC
-

1

2.0
Download now from NBS National BIM Library

Literature

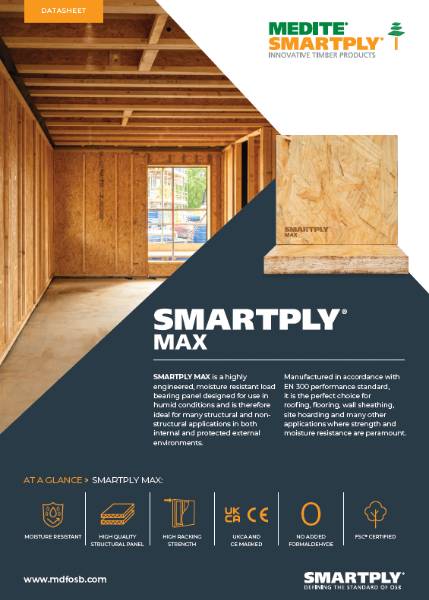

SMARTPLY MAX -  Suitable for structural and non-structural applications in protected external or internal areas
