SMARTPLY MAX DB - OSB
Verified by manufacturer 6 months ago
SMARTPLY MAX DB is a tongue and groove OSB/3 panel designed to meet the residential internal floor sound insulation requirements for use in all timber-based joists.
Application

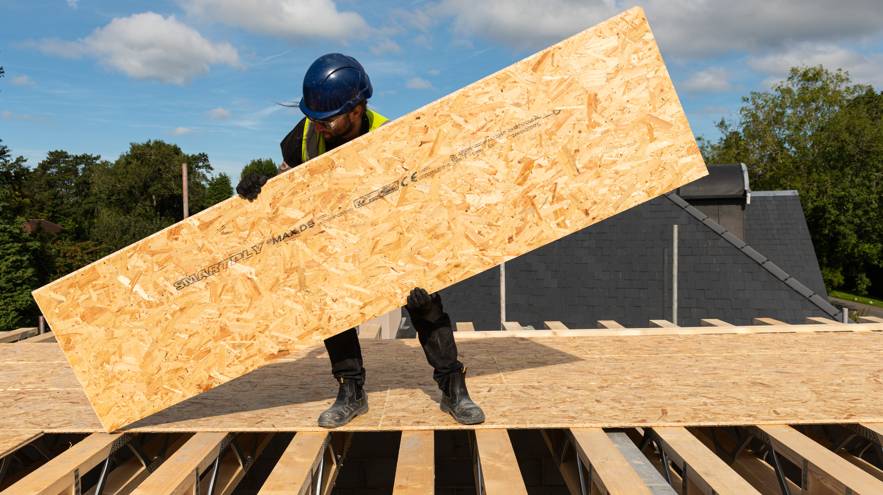

Internal residential flooring
Description

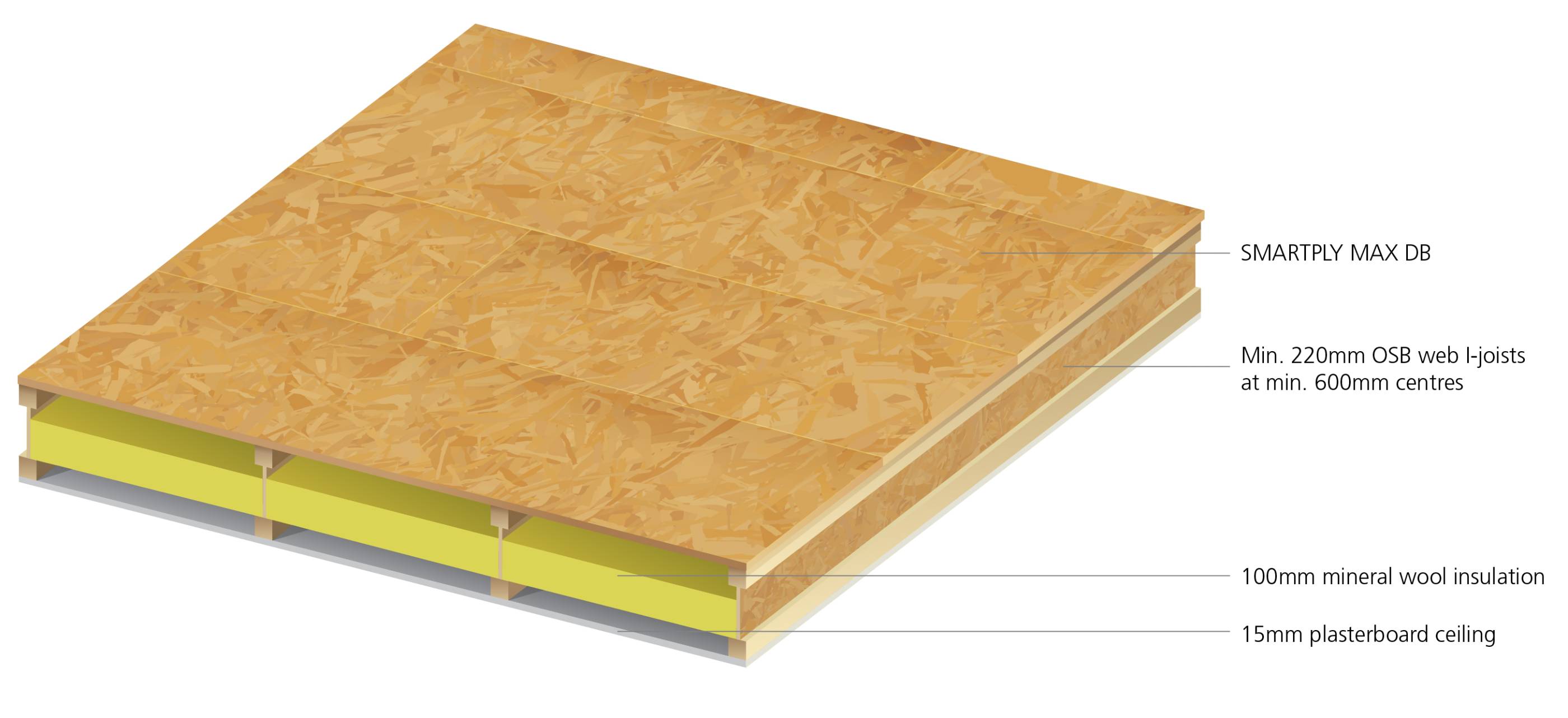

The panel has been tested in a UKAS accredited laboratory on OSB-web i-joists, metal web and solid timber joists
as part of the internal floor and achieved a sound reduction of at least 40 dB to airborne sounds complying with the requirements of the Building Regulations requirements in England, Wales, and Northern Ireland.
Features and benefits:
- To EN 300 standard.
- OSB/type 3.
General information
Material | Oriented strand board (OSB) |
Shape | Rectangle |
Length | 2400 mm 2397 mm |
Width | 600 mm 1200 mm |
Height | 18 mm |
Uniclass | |
CAWS | K11/51 Oriented strand board sarking K11/135 Battened oriented strand board floating floor F42/360 Oriented strand board F42/360 Oriented strand board K11/39 Oriented strand board wall sheathing N10/110 Purpose-made N10/10 Purpose-made K11/535 Oriented strand board roof decking K11/235 Oriented strand board floating floor K11/635 Oriented strand board sarking K11/435 Oriented strand board wall sheathing K11/335 Oriented strand board flooring K11/35 Oriented strand board flooring |
Specification data - Oriented strand boards (OSBs)
Classification data | |
Standards | To BS EN 300. |
Third-party certification | CE and UKCA certified. |
Grade | To BS EN 300, Type OSB/3. |
Reaction to fire classification | |
Flooring | Class Dfl-s1. |
Thickness | 18 mm. |
Edges | Tongued-and-grooved. |
Volatile organic compounds (VOC) emissions level (maximum) | E1, no added formaldehyde. |
Dimensions | 2400 x 600 mm. 2397 x 1200 mm. Bespoke. Guidance for specification option: Other sizes available, subject to minimum order quantities, consult manufacturer and insert requirements. |
MoistureContent | 2–12%. |
BendingStrength | 14.8 N/mm². |
ShearStrength | 1 N/mm². |
ShearModulus | 50 N/mm². |
Sustainability data
Country of material origin | Ireland |
Country of product manufacture | Ireland |
Manufacturing plant location | |
Material | Oriented strand board (OSB) |
Expected Life | 60 year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
SMARTPLY MAX DB Datasheet
Modern Methods of Construction Guide
