Application

Swing, hinged and automatic commercial entrance doors.

Description

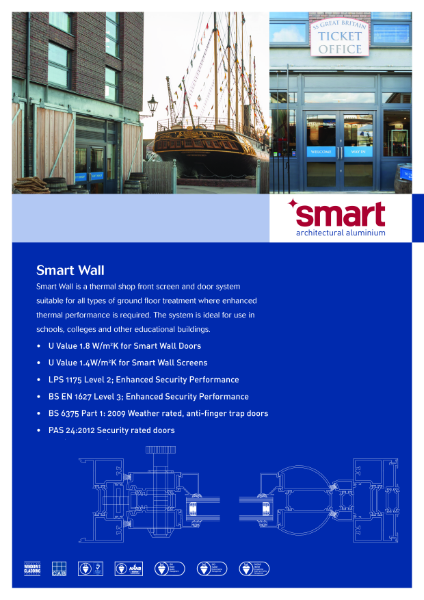

A thermal shop front door system suitable for all types of ground floor treatment where enhanced thermal performance is required. The system is ideal for use in schools, colleges and other educational buildings.

Smart Wall has been successfully tested to LPS 1175 level 2 and BS EN 1627 Level 3 for enhanced security performance. Smart Wall Doors are weather rated to BS 6375 and are available with anti-finger trap door sections and drainable low thresholds. All profiles feature polyamide barriers to maximize thermal performance and can be internally or externally glazed.

Smart Wall is available in dual colour from an extensive range of standard and non-standard finishes. It complies with the latest requirements of Document L for thermal transmittance.

Features and benefits:

  • Fully rebated swing door with anti-finger trap.
  • Thermally broken, heavy duty doors.
  • 30 kg dynamic impact test.
  • 6 kN static load test.
  • Security grade 6 locking mechanism.
  • Locking bolt withstands 10 kN side load.
  • Polyamide thermal break.
  • Achieves U-value of 1.8 W/m²K.
  • Internally beaded sash.
  • Anti-finger trap.
  • Thermally broken low threshold.

Applications:

Swing, hinged and automatic commercial entrance doors.

General information
Material

Aluminium alloy 6063 T6

Uniclass 2015
Metal doorsets (Pr_30_59_24_52)Primary
Specification data - Metal doorsets
Product Reference

Smart Wall Doors

Standard

Consult manufacturer

Third-party certification

British Standard Kitemarked system – KM 530838

Configuration

Double leaf, double action

Double leaf, single action

Single leaf, double action

Single leaf, single action

Size

As drawing

Insert reference.

As schedule

Insert reference.

Product performance -
Fire performance -
Fire integrity

Manufacturer's standard

Fire insulation

Manufacturer's standard

Radiation

Manufacturer's standard

Smoke control

Manufacturer's standard

Reaction to fire

Manufacturer's standard

Acoustic performance rating

Manufacturer's standard

Strength and durability

Manufacturer's standard

Thermal

Up to 1.8 W/m²K

Intruder resistance -
Minimum requirement

PAS24: 2012, LPS 1175 Level 2 and BS EN 1627 Level 3

Application

Manufacturer's standard

Conformity

Consult manufacturer

Bullet resistance -
Frame -
FrameMaterial

Aluminium

Threshold

Low

Perimeter seals or inserts

Weatherseal

Frame finish -
Coating

Marine quality powder coat

Texture

Manufacturer's standard

Colour

Insert single or dual colour requirement.

Film thickness (minimum)

Manufacturer's standard

Installation fasteners

Manufacturer's standard

Door leaf -
Thickness

Dependent on glazing

Core

Glazing

Material

Aluminium

Lippings

Manufacturer's standard

Perimeter seals

Weatherseal

Door leaf glazing -
Type

Insert requirement, available 24–32 mm as double or triple glazed units.

Beading -
Type

Internal

Material

Manufacturer's standard

Fixing

Manufacturer's standard

Finish -
Coating

Marine quality powder coat

Texture

Manufacturer's standard

External colour

Insert single or dual colour requirement.

Internal colour

Insert single or dual colour requirement.

Film thickness (minimum)

Manufacturer's standard

Hardware

Manufacturer's standard

Operation

Automatic

Manual

Midrail

Not required

Required

Standard product features

Material:

Aluminium alloy 6063 T6.

Frame width:

53 mm.

Frame depth:

100 mm.

Maximum sash weight:

80 kg.

Locking:

Security grade 6 locking mechanism.

Thermal break:

Extended polyamide thermal break to enhance thermal performance.

Air permeability:

Class 2, 300 Pa.

Watertightness:

Class 7a, 150 Pa.

Resistance to wind load:

Class A5, 2000 Pa.

Weather performance:

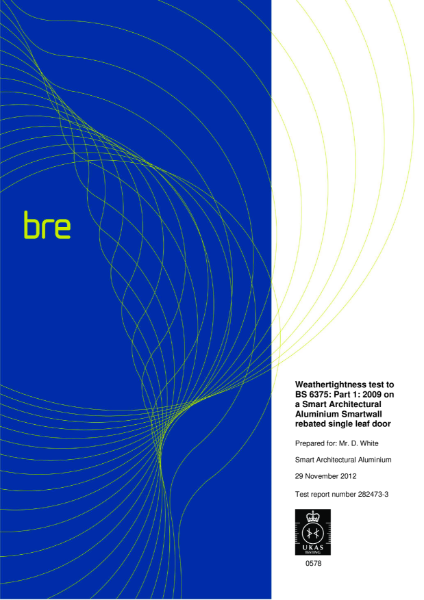

To BS 6375:1: 2009.

Product Options

Doorset size:

Sash available up to 1150 x 2500 mm (w x h).

Third party certifications
  • Kitemark: Certificate: KM 530838
