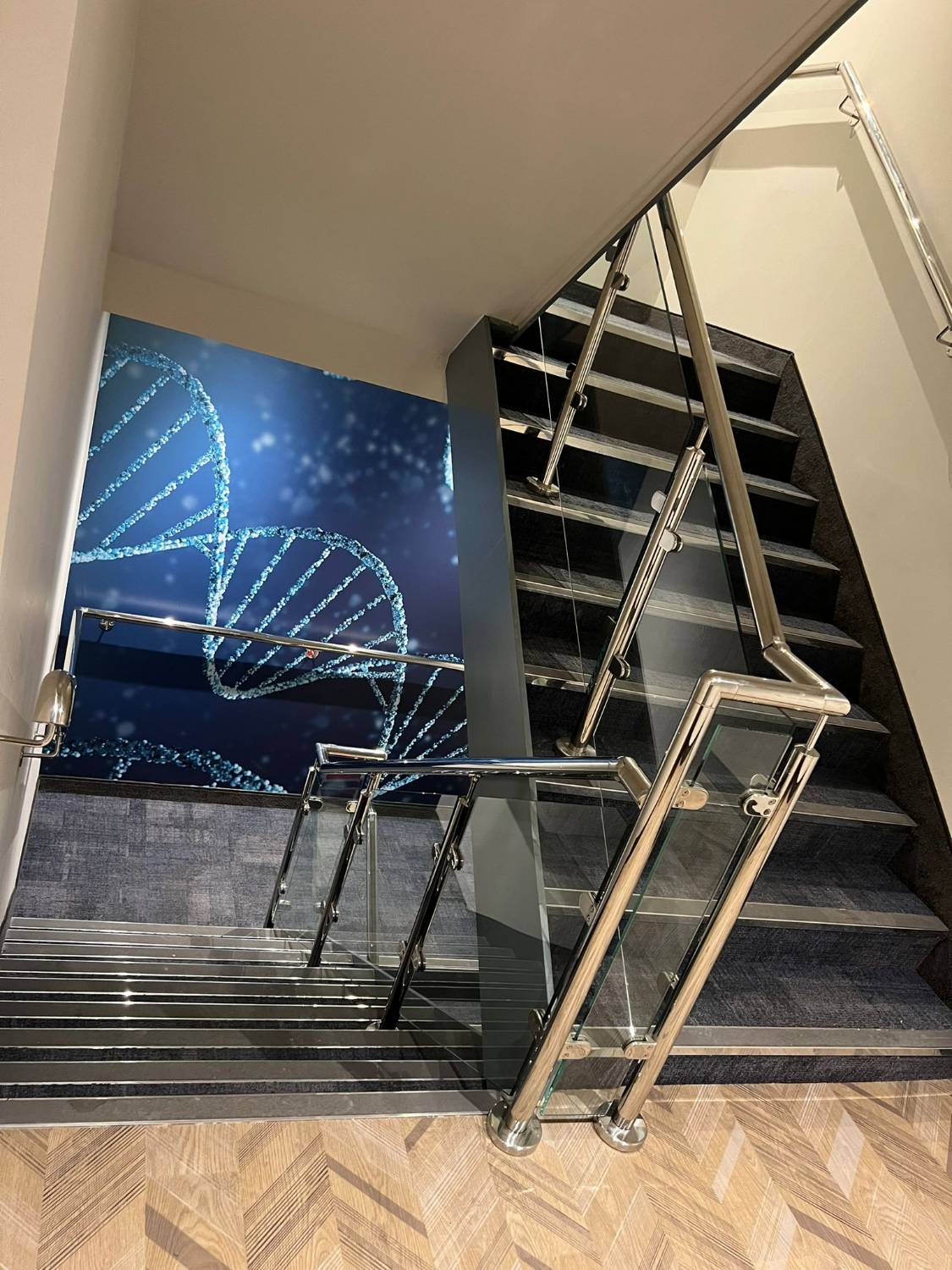

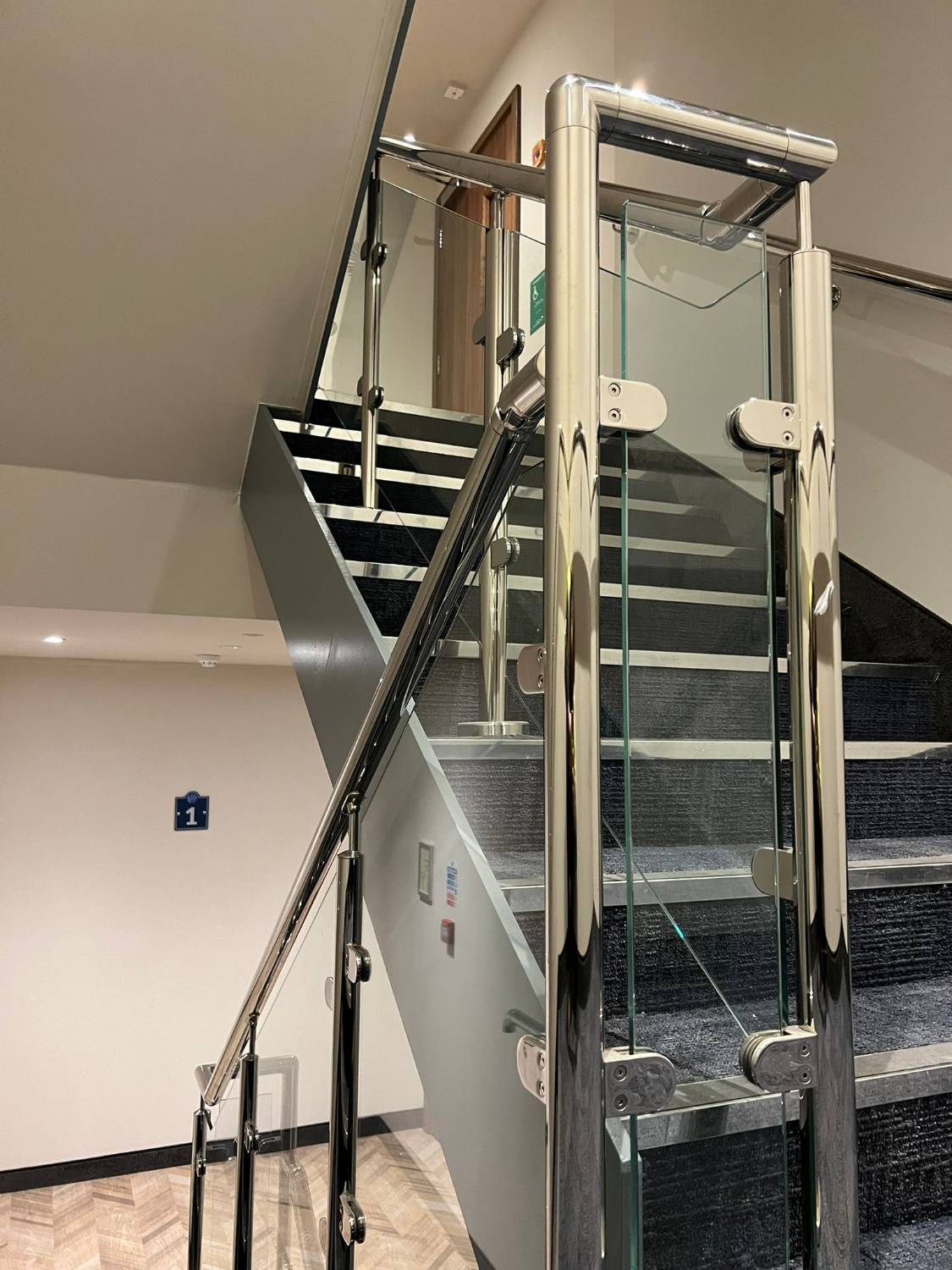

SMART Vero Steel – Stainless Steel Balustrade System

SMART Vero Steel is a fully modular stainless steel balustrade system designed for use across all applications including staircases, landings, balconies, terraces, ramps and internal walkways. The system combines contemporary aesthetics with robust structural performance, offering a range of post, handrail and infill options to suit commercial and residential environments.

Manufactured from high-quality Grade 304 or 316 stainless steel to BS EN 10088, available in brushed (320 grit) or mirror polished finish, the system provides exceptional durability and corrosion resistance. Compatible infill types include toughened or toughened laminated glass, perforated metal panels, stainless steel rods or wire rope systems, allowing the balustrade to be tailored to the architectural intent of each project.

SMART Vero Steel is fully compliant with BS 6180, capable of achieving line loads of 0.74 kN/m or 1.5 kN/m depending on configuration. Multiple fixing options—including top-mounted base plates, 2 point side-mounted brackets and core-fixed posts—ensure the system can be integrated with concrete slabs, steel structures or timber substrates.

All components are pre-fabricated for consistent quality and rapid installation, providing a clean, modern appearance with smooth handrail transitions and minimal visual obstruction.

Features

• Modular stainless steel balustrade system
• Grade 304 or 316 stainless steel to BS EN 10088
• Multiple fixing options: top mount, side mount, core drill
• Compatible with a wide range of infills
• Suitable for stairs, balconies, terraces and landings
• Pre-fabricated for fast installation and consistent quality
• Handrail options: stainless steel, timber, LED handrail (SMART Vivo Glow)
• Available in brushed (320 grit) or mirror polished finishes
• Can be fully or part powder coated

Benefits

• Suitable for almost any application, internal or external
• Strong, durable and corrosion-resistant
• Fully compliant with BS 6180 for guarding
• Simple installation with no hot works
• Long service life with minimal maintenance
• Customisable appearance through handrails and infill choices
• Ideal for commercial, public and residential projects
• Tested up to 1.8m high with 48mm diameter posts

How to Specify

When specifying this system, confirm the following:

1. Application type
   • Staircase (raked) / landing / balcony / terrace / walkway / ramp
2. Required line load to BS 6180
   • 0.74 kN/m (general domestic and light commercial)
   • 1.50 kN/m (areas where people are likely to congregate)
3. Post fixing method
   • Top-fixed base plate with cover
   • 2 point side-fixed bracket
   • Core-drilled post with cover
4. Infill type
   • Toughened or toughened laminated glass
   • Glass colour - Clear/grey/bronze/green/blue/opaque
   • Stainless steel rods
   • Tensioned wire rope infill
   • Perforated metal panel
   • Vertical bar infill panel
   • Please speak to us if you're considering specifying rod or wire infills
5. Handrail type
   • Stainless steel
   • Timber handrail
   • LED-integrated handrail (SMART Vivo Glow)
6. Stainless steel grade & finish
   • Grade 304 (internal use)
   • Grade 316 (external or coastal)
   • Brushed (satin) / polished (mirror) finish
7. Balustrade height
   • 900 mm for stairs
   • 1100 mm for landings, balconies and terraces
   • Or project-specific height
8. Glass specification (if applicable)
   • Thickness (10 mm – 11.5 mm typical)
   • Toughened laminated to EN 12150 & EN 14449
   • Clear / low-iron / tinted
9. Interface requirements
   • Waterproofing details on balconies and terraces
   • Edge protection, drainage and weathering considerations
10. Finishing and detailing

• Slope transitions for stairs
• End caps, returns, wall brackets
