SMART Privacy Screen - Frosted Glass Balustrade Screens

Name: SMART Privacy Screen - Frosted Glass Balustrade Screens
Brand: Smart Balustrades
SKU: xq4rYbpZYk5Sw7UpTjVsQD

Verified by manufacturer 3 months ago

Structural glass privacy screen

Smart Balustrades

Third party certifications:

Health & Safety Accreditation
Certificate type
Constructionline Gold
Certificate type
Constructionline
Certificate type

Frosted glass balustrade privacy screen for gardens, offices and public spaces

Jump to:

01543 399604 Website

Application

Suitable for external use in both commercial and domestic properties.
For balconies, terraces, offices and shared spaces

Description

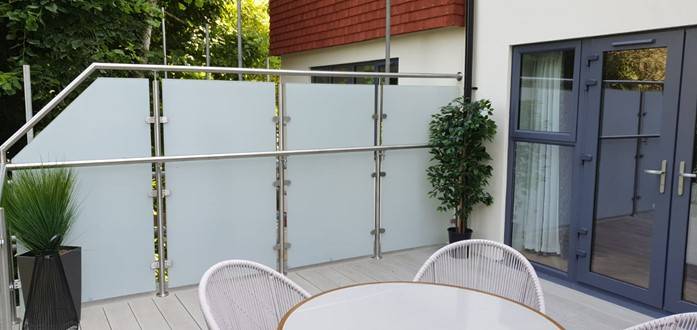

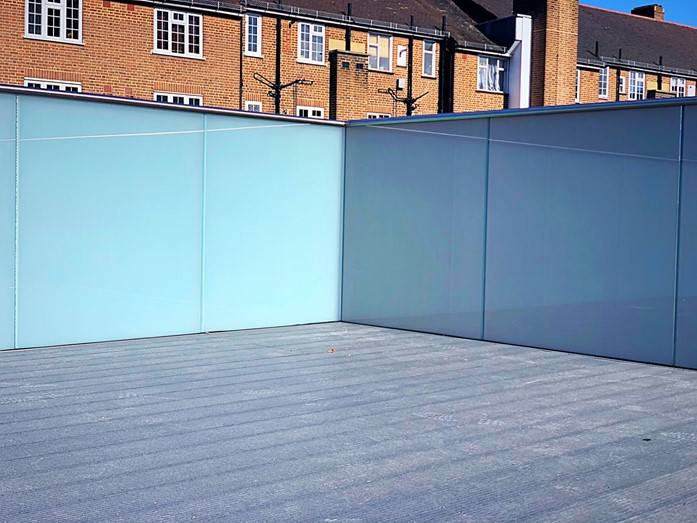

Frosted glass privacy screens are a great solution for balconies, terraces, offices and shared spaces. Available with stainless steel and glass, or aluminium and glass.

Features and benefits:

Grade 316 satin brushed stainless steel base plate fixings or anodized aluminium base track tracks.
Frosted toughened glass infill panels.
Perfect solution for privacy
Modern look
Easy to install
Custom designs available

General information

Color	Clear Guidance for specification option: With a range of finishes for privacy, such as frosted Black White
Finish	Satin Brushed
Material	Glass Aluminium Stainless steel
Shape	Circle Parallelogram Rectangle Other Guidance for specification option: Custom shapes available to suit all spaces
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Ss_25_60_05_05 Balustrade and guarding systemsPrimary
CAWS	L30/560 Proprietary balustrades L30/55 Proprietary balustrades

Specification data - Balustrade and guarding systems

System performance	Loading requirements: 0.74 kN horizontal line load measured at 1100 mm above FFL with less than 25 mm deflection.
Infills	21.5 mm thick toughened laminated float glass to EN 12150 with flat polished edges and dubbed corners. 25.5 mm thick toughened laminated float glass to EN 12150 with flat polished edges and dubbed corners
Rails	-
Handrails	42 mm grade 316 stainless steel capping. 48 mm grade 316 stainless steel capping.
Fixing to parent structure	Mechanical anchor. Chemical anchor.

Fixing	Glass: Adjustable wedge system to continuous track.
Base channel	Top fixed U profile anodized aluminium extruded base track.
Glass colour	Frosted.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	All materials widely recycled
