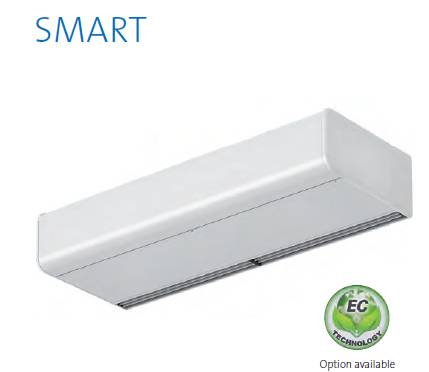

Smart Air Curtain
Compare variants

Application

Suitable for commercial and industrial buildings.

Description

A low noise, horizontal air curtain.


Features and benefits:

  • The smooth front panel cleverly hides the air intake grill from view which can be customised to client requirements, for example with logos, lighting or safety information.
  • Low noise centrifugal inlet fans are driven by an external rotor motor with a built in thermal protection contact.
  • Heat loss through open doors is significantly reduced.
  • A standard manual controller, 7 metres of control cable and an IR handheld remote are included. Other control options available include the Clever controller or the BMS interface.
  • Tested to AMCA 220-05.

General information

Shape

Rectangle

Color

Any RAL colour available. Consult manufacturer and insert requirements.

White

As standard (RAL 9016).

Size

1034 x 565 x 270 mm

1534 x 565 x 270 mm

2034 x 565 x 270 mm

2534 x 565 x 270 mm

3034 x 565 x 270 mm

Uniclass

Pr_70_60_36_02 Air curtainsPrimary

Specification data - Air curtains Enhanced data

Heating method

Air.

Arrangement

Horizontal.

Output

0.212 kW.

Air volume

1800 m³/h.

Mounting height

3.5 m.

Casing finish

Manufacturers standard.

Accessories

Not required.

Clever controller.

BMS interface.

EC fan.

Voltage

240 V.

Frequency

50Hz.

Weight

34 kg.

Noise

Noise level at 5 m.

53 dB.

Dimensions

1034 x 565 x 270 mm.

Fan

AC.

Height

4.2 m (maximum).
