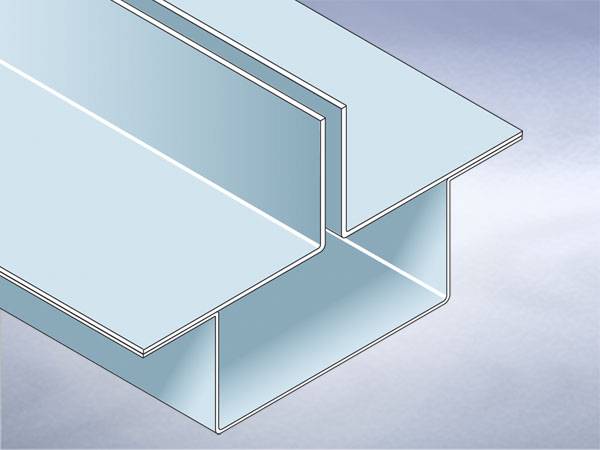

BS EN 1433 compliant, custom-made slotted hidden channels.
Suited for draining large areas of screed, resin and other floor finishes, as well as block paving, hidden channels can be designed to accommodate a range of paving thicknesses and flow rate requirements. Available in a range of profiles, generally with in-built fall towards the outlets; can also be produced as a curved channel.
Channels are available with level invert or in-built fall to outlet, from a minimum of 30 mm deep. The base of the channel is flat for depth up to 110 mm, deeper versions have a V-shaped base.
Stainless steel, grade 1.4301 (304), minimum 1.5 mm thickness
R11/310 Floor channels
With non-removable toe bar. 6 mm slot width suitable for use in barefoot areas.
Designed for use against a wall.
Designed for use against a wall. With non-removable toe bar. 6 mm slot width suitable for use in barefoot areas.
Insert length, depth and layout of channel.
Insert width and depth of slot required.
Standard product features
140 mm square access covers are fitted over the outlets as standard; these may be recessed to accept flooring material.
Stainless steel, grade 1.4301 (304), minimum 1.5 mm thickness.
