Slotted Acoustic Wall Lining
Application

For use as wall linings.

Description

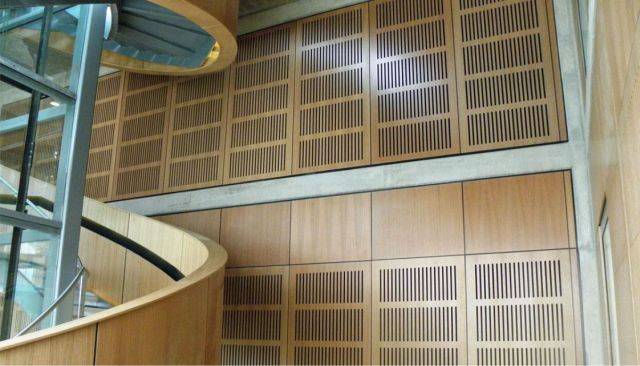

Slotted acoustic wall panels providing an attractive sound control solution, available in many slotted patterns and finishes, bespoke options are also available.

Panels are prefabricated and secretly fixed on site using a split battens system. The split batten thickness will vary depending on the thickness of the insulation (absorption class rating). The system offers an accurate and high-quality seamless finish.

Applications:

For use as wall linings.

General information
Size

2400 x 1200 mm

1200 x 600 mm

Special order

Insert requirement.

Material

High-density fibre glass core (96 kg/m³) with continuous peripheral frame and reinforced with horizontal batons, open weave acoustic fleece and mineral wool inlay

Uniclass 2015
Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS

K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units
Product Reference

Slotted Acoustic Wall Lining

Size

2400 x 1200 mm

1200 x 600 mm

Special order

Insert requirement.

Face finish

Insert requirement, available in plain, woodgrain, ply, laminate and veneer finishes, consult manufacturer's literature for information.

Slots

Insert slot width and spacing requirement.

Standard product features

Material:

High-density fibre glass core (96 kg/m³) with continuous peripheral frame and reinforced with horizontal batons, open weave acoustic fleece and mineral wool inlay.

Thickness:

18 mm

Edge banding:

2 mm polyvinyl chloride (PVC) edging to match finish.

Edges:

Flat.

Fire rating (to BS 476-7):

Class 0 core and lacquer. The fibre glass complies with GB/T 20284-2006, GB/T 20285-2006 and GB/T 14402-2006.

Sound absorber class (to BS EN ISO 11654):

B.

Sound absorption coefficient (to BS EN ISO 11654):

Noise reduction coefficient (NRC): 0.66.
