SLM Pneumatic Spring Mount

Verified by manufacturer 2 months ago

SLM 1 A

Total Vibration Solutions Limited t/a TVS Group Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

SLM pneumatic spring mounts are a low-height, low-stiffness air spring isolator mount suitable for passive and dynamic applications where a support natural frequency as low as 3–5 Hz is required.

Jump to:
+44 (0)1706 260 220 Website

Application

Typical passive applications include the protection of vibration sensitive equipment such as coordinate measuring machines, metrology inspection devices, isolation tables and electron microscopes.

Dynamic applications such as power presses, compressors and high-speed punch presses should use the SLM-D series combined with viscose damping.

Description

The EFFBE SLM pneumatic spring mount is a low-height, low-stiffness air spring isolator mount suitable for both passive and dynamic applications where a support natural frequency as low as 3–5 Hz is required.

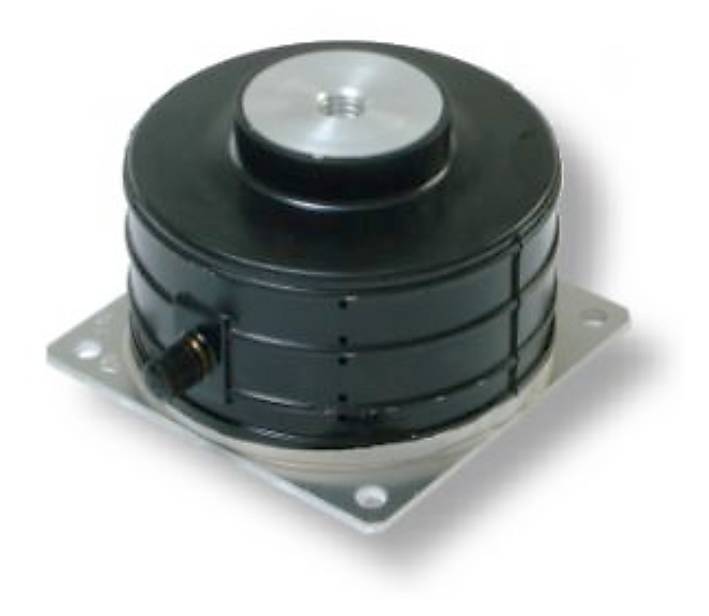

The SLM isolator has a Neoprene rubber body with steel reinforcing hoops, aluminium base plate and a steel or aluminium top support plate complete with a tapped mounting hole.


Inflation is either through the 'moulded in' standard tyre valve or by connection to a permanent air supply.


Features and benefits:

  • Air spring isolator with integral heavy wall construction.
  • Deflection transfers shock to outer wall.
  • Will not bottom out.
  • Continued support and isolation even with no air pressure.
  • Combined resiliency and air prevents high static deflection, drift or permanent set.
  • Extends machinery life.
  • Wide load range available.
  • Low maintenance.

General information

Color

Black

Finish

Smooth

Material

Aluminium

Rubber

Shape

Circle

Warranty description

One year

Uniclass

Pr_80_77_94_65 Pneumatic isolation mountsPrimary

CAWS

K11/275 Acoustic separating floor system

K11/295 Floating floor system

Product range

Anti Vibration Mountings

Specification data - Pneumatic isolation mounts

Isolator type

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Maximum load

0.65 kN.

Guidance for specification option:

Maximum.

Maximum deflection

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Unit size

75 x 75 x 65 mm.

Manufacturer guidance

Overall width x depth x isolator height.

Consult manufacturer for further details.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Aluminium and rubber can be recycled into other products at end of life.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality
