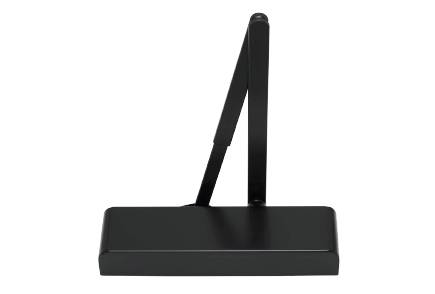

Slimline Overhead Rack & Pinion Door Closer with Backcheck With Semi-Radius Cover EN 2-5 (HUKP-0204-06) - Door closer
Verified by manufacturer today
Overhead rack and pinion door closer with backcheck with semi-radius cover.
Application
Suitable for up to 2 hours on timber fire doors and up to 240 minutes on steel doors.
Description
Overhead rack and pinion door closer with backcheck with semi-radius cover.
Features and benefits:
- Adjustable power rack and pinion door closer for high use traffic.
- Adjustable power, closing speed, backcheck and latch action.
- Maximum opening angle 180° - single action (pull side).
- Maximum door weight 100 kg.
- Maximum door width 1250 mm.
- Slimline design with semi-radius cover shown.
General information
Color | Black Bronze White Silver Manufacturer guidanceRAL colour available to special order. |
Finish | Satin Polished |
Material | Stainless steel |
Shape | Rectangle |
Length | 236 mm |
Width | 38 mm |
Height | 55 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 8. |
Door closer power size | 5. |
Safety | 1. |
Materials and finishes | |
Bodies | Stainless steel.Steel.Satin.Polished. |
Arms | Stainless steel. |
Casings | Stainless steel. |
Colour | Satin stainless.Polished stainless.Matt black.Light bronze.Dark bronze.Hafele black.Silver sprayed.Satin brass.RAL colour.Manufacturer guidanceOther finishes available to special order. |
Third-party certification | CE marked and Certifire approved CF 689. |
Dimensions | 236 x 38 mm. Guidance for specification option: Length x width. |
Maximum weight | 100 kg. Guidance for specification option: Maximum door weight. |
Opening | 180°. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 97 % |
