Slimline Double Glazed Edge Symmetry Door
Verified by manufacturer 2 days ago

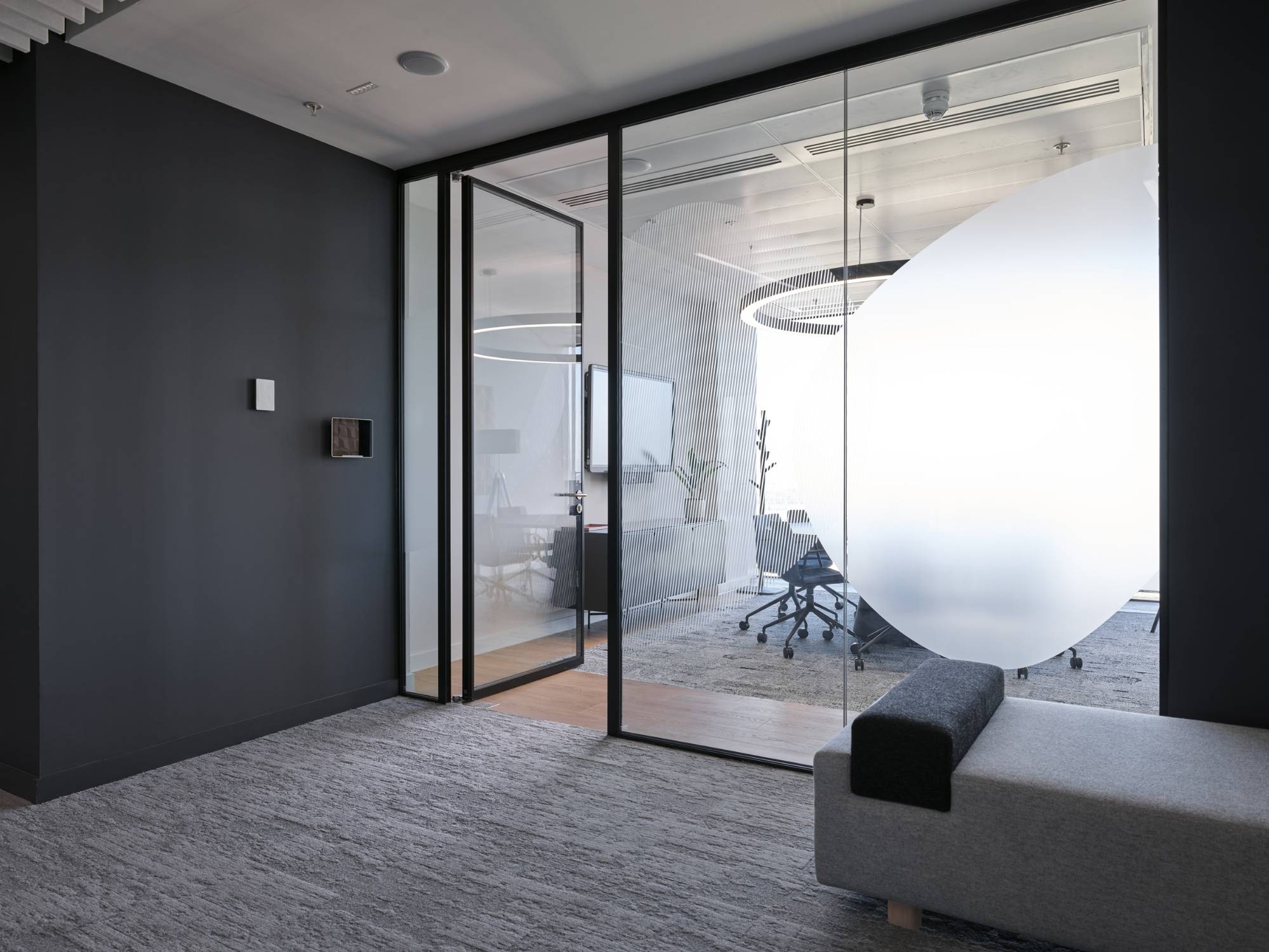

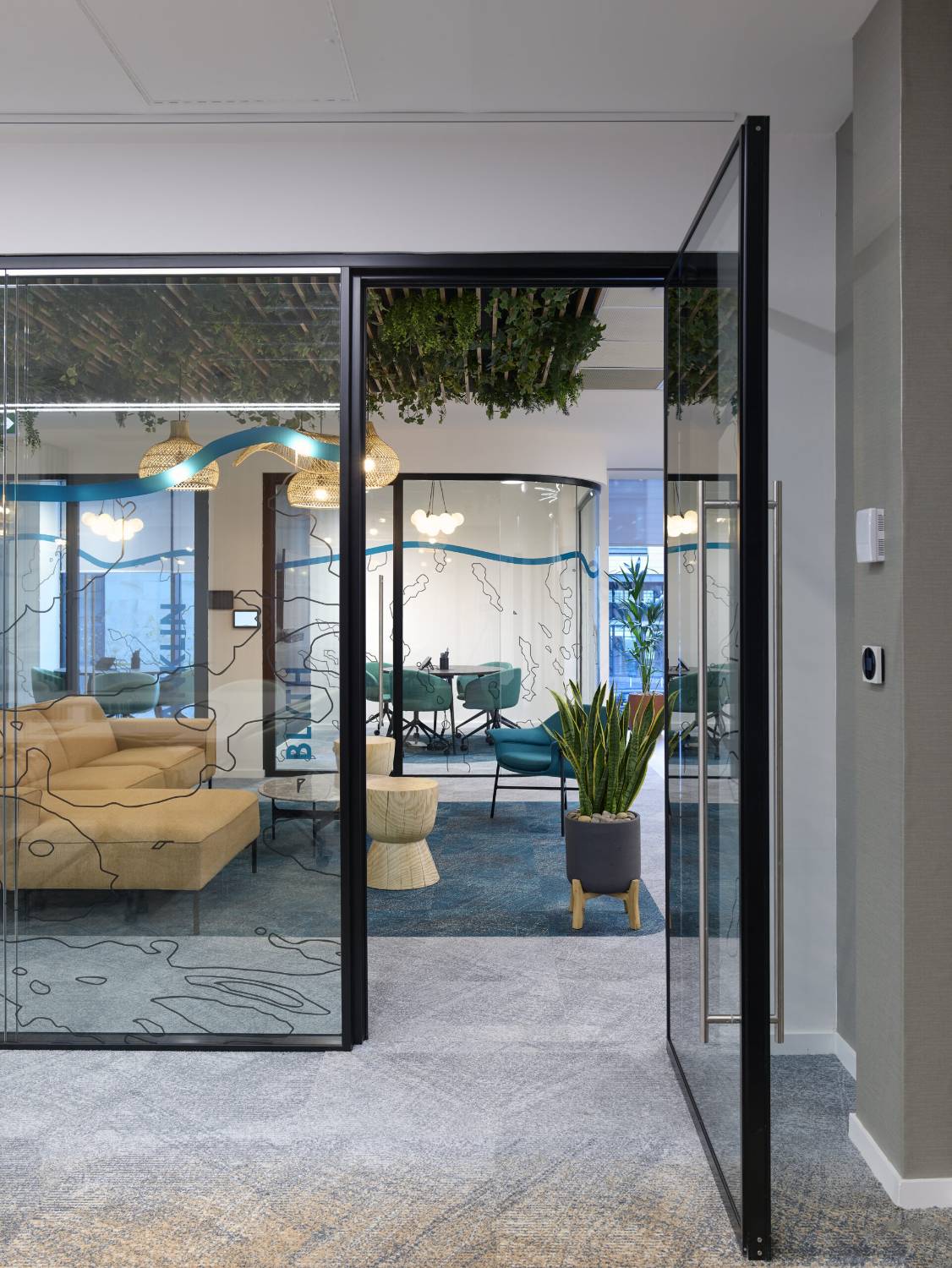

A slimline aluminium framed, single-leaf, double-glazed acoustic glass doorset.
Application
For use in conjunction with Revolution 100 single or double-glazed partition system.
Description
Research and development in door sealing technology and clever design has enabled Optima to make huge advances in the acoustic performance of glass doors.
Features and benefits:
- High acoustic performance: 41 dB (Rw).
- Can be hinged or pivoted.
- Slim 30 mm standard width stile.
General information
Color | Black White Silver Other |
Finish | Anodized Grained Polished Powder-coated |
Material | Glass Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: See Warranty Policy literature for more information. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Aluminium doorsets
Classification data | |
Doorset size | Manufacturer guidanceSingle leaf size: 990 mm. Frame size: 1104 mm. |
Frame | |
Material | Microflush D665 aluminium door frame. |
Finish | |
Coating | Anodized. Guidance for specification option: 25 microns thickness. Grained, brightened and protective anodized. Polished, brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal). |
Door leaf | |
Material | Glass. |
Glazing | |
Type | 6 mm heat-soaked toughened glass and 8 mm heat-soaked toughened glass (to BS EN 14179). |
Manifestation | Guidance for specification option: Insert requirements. |
Operation | Hinges. Pivots. |
Locking | Dead lock. Latch. Sash lock. |
Ironmongery | Guidance for specification option: Insert requirements from Optima standard ironmongery suite. |
Sustainability data
Contains Red List materials | Yes |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Glass Aluminium |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 64.5 Lower emissions Value guidance: A1-A3See Environmental Product Declaration literature for detailed LCA data. | |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 1 |
Literature
Literature type
000005 (3) - Warranty - Company Policy
000018 (1) - Brochure - Clear Thinking
009815 (0) - EPD - Double Glazed Doors
900001 (17) - Designer's Guide - Door Sets
Optima Doors Product Summary
