Verified by manufacturer 4 months ago
KEB2525F:SF: 25 x 25 mm (F)
Aluminium batten system that clicks together.
Suitable for commercial and residential building exteriors. Can be used in applications such as:

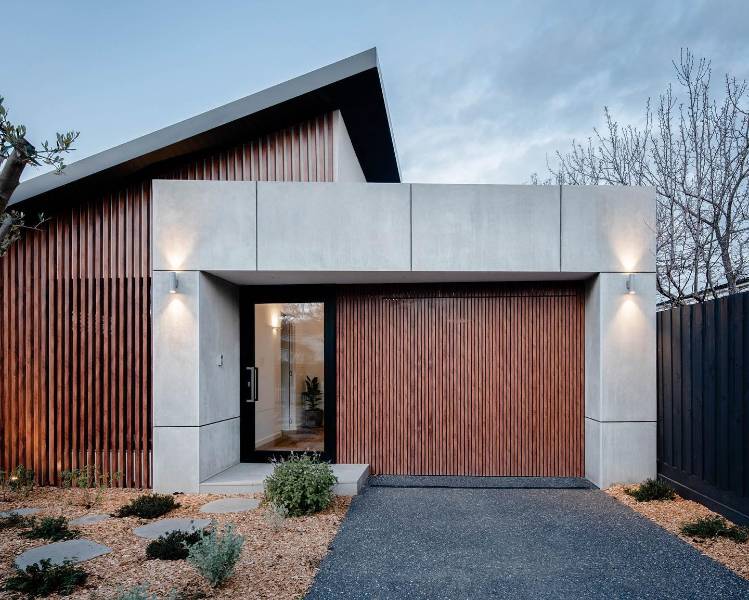

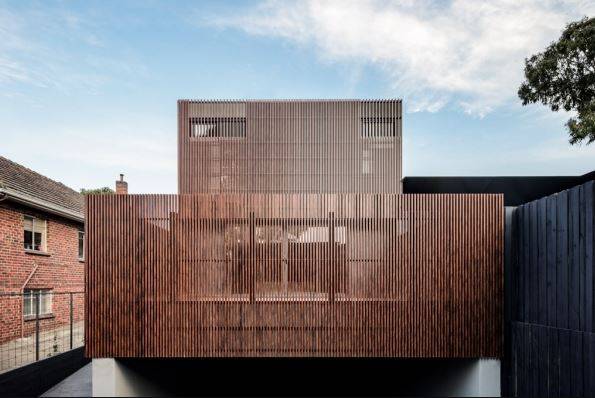

Knotwood's aluminium façades are flexible and have been designed to be attached to any structural element. They can be used to create street appeal or to assist with privacy, sun and light control.
The powder coated aluminium lengths replicate the species and grain pattern of natural timber. They are lighter, straighter and stronger than real wood, offering a practical and cost effective solution for a large expanse. Knotwood’s façades boast minimal maintenance and require no recoating or resealing.
Based on a two part system. The brackets are fixed to the substrate, then the batten is simply clipped on to conceal the fixings. Endcaps can be attached if required. The aluminium battens run the whole length for easy attachment and strength. Each system is created to conceal joins, screws and fixings for a seamless finish.
Knotwood battens come in a variety of shapes and sizes. They can also be joined together with a batten joiner for an even longer length.
Features and benefits:
Color | White Green Grey Cream Beige |
Finish | Powder-coated Woodgrain Anodized |
Material | Aluminium |
Shape | Rectangle |
Length | 5600 mm Guidance for specification option: Standard. Bespoke Guidance for specification option: Bespoke options up to 6500 mm are available. |
Width | 25 mm 32 mm 40 mm |
Height | 25 mm 32 mm 40 mm |
Warranty description | 15 year Guidance for specification option: Knotwood wood effects Manufacturer guidanceKnotwood can off powder coated warranties from 10 - 30 years. Please get in touch to discuss your exact requirements |
Uniclass | |
CAWS | L10/55 Brises-soleil L10/670 Brises-soleil |
Profile | Rectangular. |
Material | Aluminium. |
Finish | Powder-coated. |
Colour | Grey Ash.QLD Walnut.Kwila.Natural Oak.Textura White.Textura Surfmist.Textura Silver.Textura Primrose.Textura Paperbark.Textura Dune.Textura Jasper.Textura Woodland Grey.Textura Monument.Textura Deep Ocean.Textura Ironstone.Textura Black.Hampton Cedar.Shou Sugi Ban.Hinoki.Nordic Oak.Spruce.Norwegian Beech.Sycamore.French Walnut.White Ash.Pacific Teak.Red wood.Teak Brown.Black Cedar.Driftwood.Merbau.Iroko.Light Oak.Royal Oak.Chestnut.Spotted Gum.Blackbutt.Bush cherry.Western Red Cedar.English Chestnut.Black Wenge.Other.Guidance for specification option: Non-stocked colours available on request, consult manufacturer and insert requirements. |
Texture | Matt. |
Size | 25 x 25 mm. |
Reaction to fire | A1.Guidance for specification option: Anodized. A2-s1-d0.Guidance for specification option: Powder-coated. |
Accessories | Not required.Profiled end caps.Guidance for specification option: Endcaps can be attached if required. Matching aluminium endcaps are offered to suit all batten shapes and size. The endcaps are a press fit design. Supply of endcaps with counter sunk screw holes are optional. Slimline ceiling clip (M).Guidance for specification option: KACBC25. |
Mounting | Batten track system. Guidance for specification option: KEBCFMT flat mounting track. |
Length | 5600 mm. Guidance for specification option: Standard. Bespoke. Guidance for specification option: Bespoke options up to 6500 mm are available. Consult manufacturer and insert requirements. |
Contains Red List materials | No |
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceStandard options contains 0-10% recycled content, options are available up to 100% recycled content and low carbon options. |
Knotwood batten brochure
Knotwood batten installation guide
KEB2525FSF 25 x 25 mm profile (F) batten
KEB2525M 25 x 25 mm profile (M) batten
KEB3232FSF 32 x 32 mm profile (F) batten
KEB4040FSF 40 x 40 mm profile (F) batten
KACBC25 slimline ceiling clip (M)
KEBCFMT Flat mounting track - batten track system
Knotwood Wood Effect colour brochure
